Jauch Quartz
- The Jauch Group is a leading specialist for quartz crystals, crystal oscillators and battery technology. Established in 1954- in Germany, they are now one of the foremost companies in the frequency control products industry, and most recently also with innovative MEMS timing products. From frequency control products for standard applications to highly stable, shock-resistant components, – Jauch products operate reliably in your applications. They ensure this with their quality assurance, which starts even before production does. The specialists at Jauch accompany your projects from sample production to series production. To fulfill their claim to provide “Made in Germany” quality, they look after production themselves. They have their own production facility at their headquarters in Germany, as well as production facilities in Asia. An in-house testing laboratory with reliable measuring equipment also allows them to perform AEC-Q200 testing for automotive applications.
Part Number
Manufacturer
Description
Unit Price
In Stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging

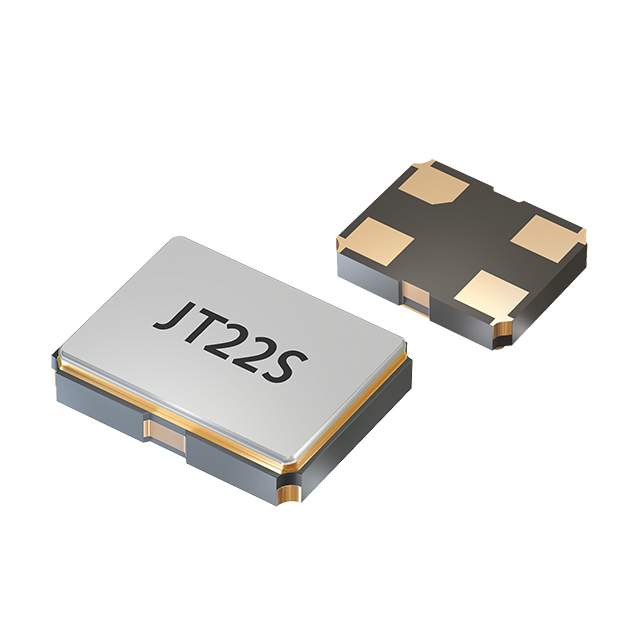

Series : JT22S
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 50MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 3.3V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
960 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging

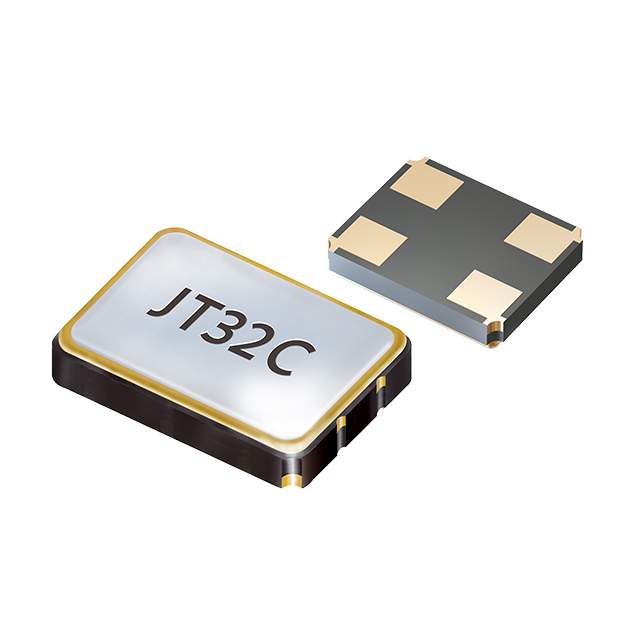

Series : JT32C
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 50MHz
Function : Enable/Disable
Output : HCMOS
Voltage - Supply : 3.3V
Frequency Stability : ±2.5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 7mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.043" (1.10mm)
0
814 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging

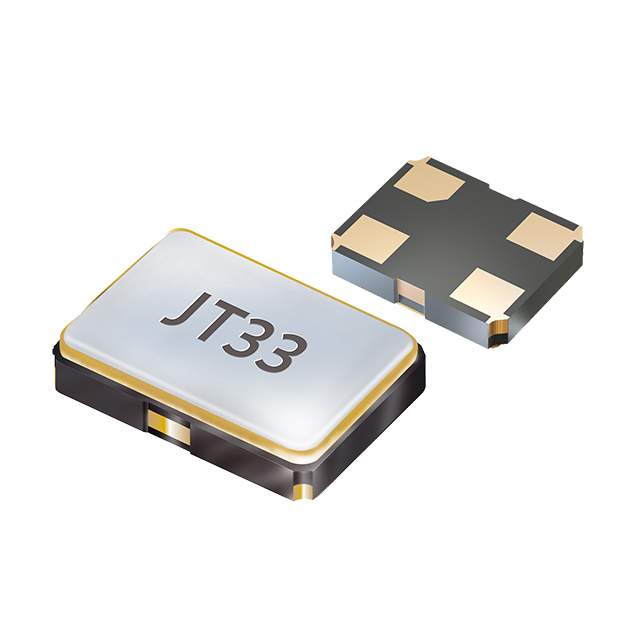

Series : JT33
Part Status : Active
Base Resonator : Crystal
Type : TCXO
Frequency : 50MHz
Function : -
Output : Clipped Sine Wave
Voltage - Supply : 3.3V
Frequency Stability : ±2ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 2.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
895 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging

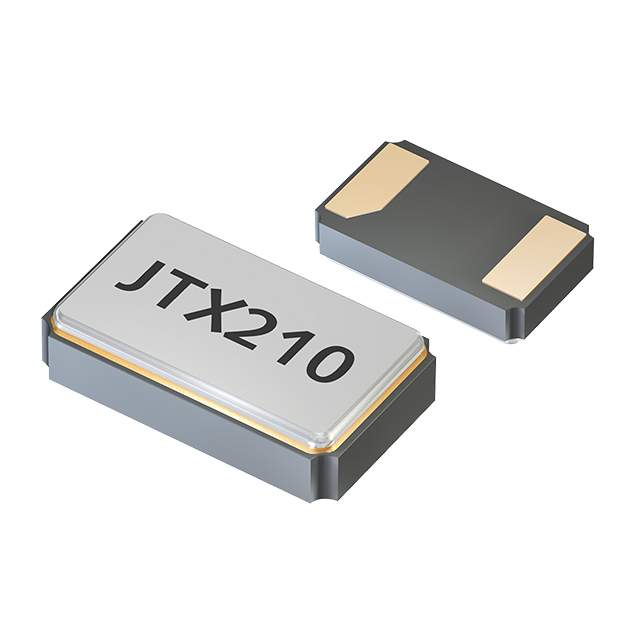

Series : JTX210
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
29971 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX210
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 105°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
8995 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX210
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
8980 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX210
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 9pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
5820 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX210
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 9pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 105°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
6000 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX210
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 9pF
ESR (Equivalent Series Resistance) : 90 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) : 0.024" (0.60mm)
0
5958 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging

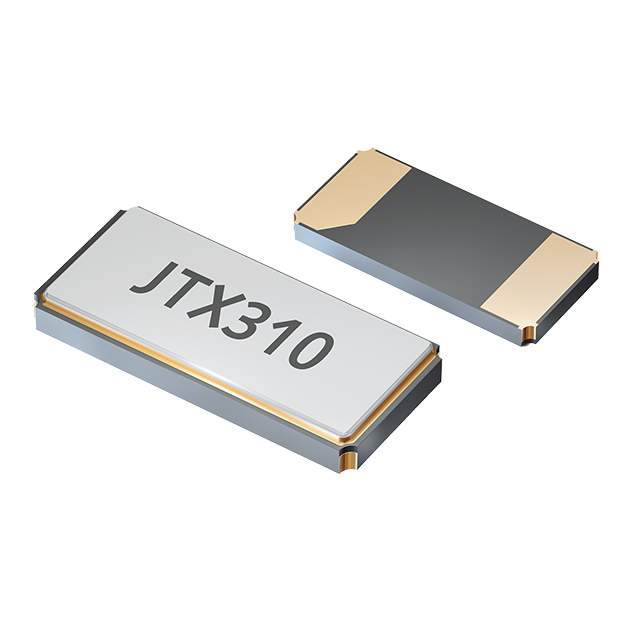

Series : JTX310
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±10ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 50 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
6000 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX310
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±10ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 60 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
6000 in stock
Jauch Quartz
Manufacturer : Jauch Quartz
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JTX310
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±10ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 70 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
5935 in stock
