IXYS Integrated Circuits Division
- IXYS Integrated Circuits Division, formerly Clare, Inc., an IXYS Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS®) for the communication, industrial, power, and consumer markets.
As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division SSR solutions are rapidly replacing older electromechanical devices in many applications and enhancing overall system performance. They continue to develop leadership products that offer higher levels of integration and electrical performance.
Part Number
Manufacturer
Description
Unit Price
In Stock
IXYS Integrated Circuits Division

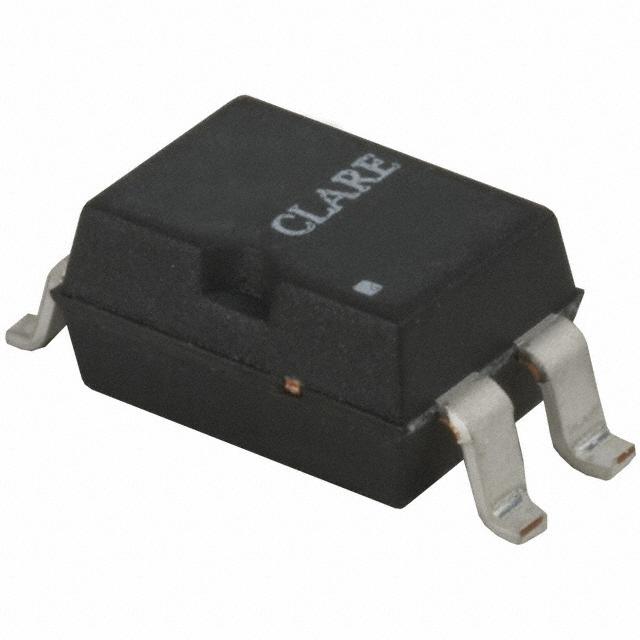

Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 1000% @ 1mA
Current Transfer Ratio (Max) : 8000% @ 1mA
Turn On / Turn Off Time (Typ) : 1µs, 80µs
Rise / Fall Time (Typ) : 40µs, 2.6µs
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 350V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 1mA
Vce Saturation (Max) : 1.2V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
7578 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 1000% @ 1mA
Current Transfer Ratio (Max) : 8000% @ 1mA
Turn On / Turn Off Time (Typ) : 5µs, 60µs
Rise / Fall Time (Typ) : 40µs, 5µs
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 350V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 1mA
Vce Saturation (Max) : 1.2V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
3693 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 1000% @ 1mA
Current Transfer Ratio (Max) : 8000% @ 1mA
Turn On / Turn Off Time (Typ) : 5µs, 60µs
Rise / Fall Time (Typ) : 40µs, 5µs
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 350V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 1mA
Vce Saturation (Max) : 1.2V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
2095 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : -
Series : CPC, OptoMOS®
Part Status : Obsolete
Mounting Type : -
Circuit : -
Output Type : -
Voltage - Input : -
Voltage - Load : -
Load Current : -
On-State Resistance (Max) : -
Termination Style : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NC (1 Form B)
Output Type : AC, DC
Voltage - Input : 1.26VDC
Voltage - Load : 0V ~ 350V
Load Current : 130mA
On-State Resistance (Max) : 30 Ohms
Termination Style : PC Pin
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
1408 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.2VDC
Voltage - Load : 0V ~ 400V
Load Current : 140mA
On-State Resistance (Max) : 22 Ohms
Termination Style : PC Pin
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.2VDC
Voltage - Load : 0V ~ 400V
Load Current : 140mA
On-State Resistance (Max) : 22 Ohms
Termination Style : Gull Wing
Package / Case : 4-SMD (0.300", 7.62mm)
Supplier Device Package : 4-SMD
0
3022 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.2VDC
Voltage - Load : 0V ~ 600V
Load Current : 90mA
On-State Resistance (Max) : 50 Ohms
Termination Style : PC Pin
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
704 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.2VDC
Voltage - Load : 0V ~ 600V
Load Current : 90mA
On-State Resistance (Max) : 50 Ohms
Termination Style : Gull Wing
Package / Case : 4-SMD (0.300", 7.62mm)
Supplier Device Package : 4-SMD
0
9624 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : DC Signal Termination
Interface : ISDN, SHDSL
Number of Circuits : 1
Voltage - Supply : -
Current - Supply : -
Power (Watts) : 1W
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 16-VDFN Exposed Pad
Supplier Device Package : 16-MLP (7x6)
0
471 in stock

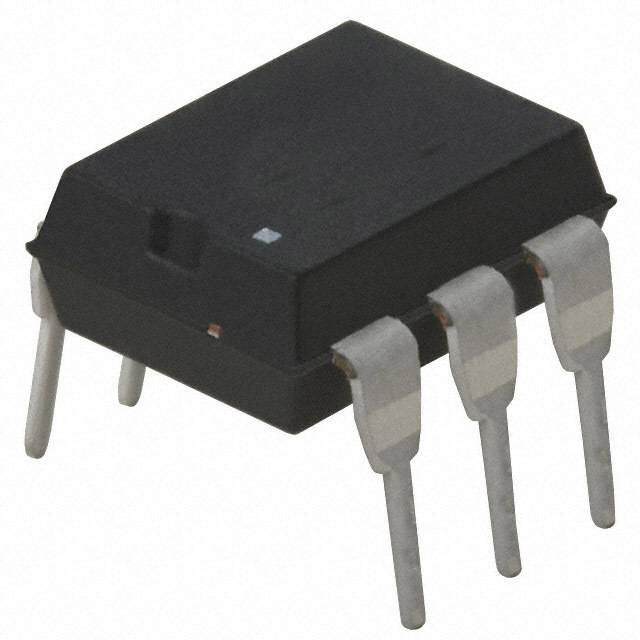

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.29VDC
Voltage - Load : 0V ~ 250V
Load Current : 200mA
On-State Resistance (Max) : 15 Ohms
Termination Style : PC Pin
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
285 in stock

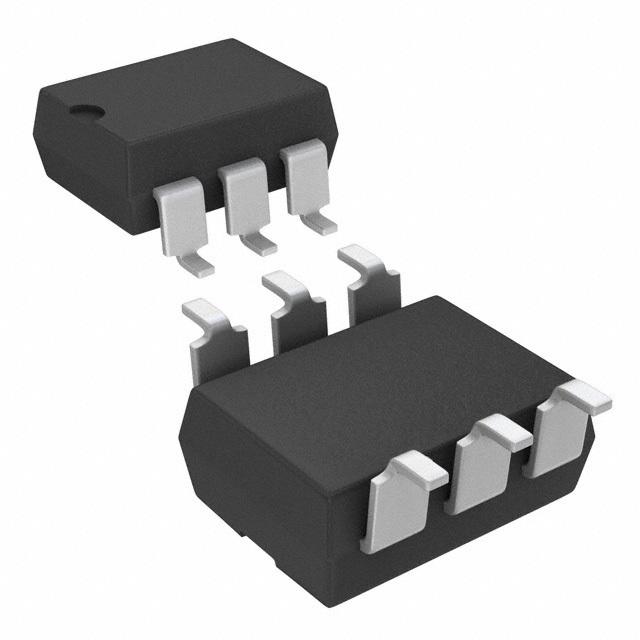

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPC, OptoMOS®
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.29VDC
Voltage - Load : 0V ~ 250V
Load Current : 200mA
On-State Resistance (Max) : 15 Ohms
Termination Style : Gull Wing
Package / Case : 6-SMD (0.300", 7.62mm)
Supplier Device Package : 6-SMD
0
6895 in stock
