IXYS Corporation
- IXYS Corporation/Littelfuse has gained a worldwide reputation as a premier power semiconductor manufacturer. Its diversified product base of specialized power semiconductors, integrated circuits and RF power include low on-resistance Power MOSFETs, Ultra Fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs for applications ranging across industrial, transportation, telecommunications, computer, medical, consumer and clean tech markets.
With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.
Part Number
Manufacturer
Description
Unit Price
In Stock
IXYS Corporation / Littelfuse
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 33A
Power - Max : 150W
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 20A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 1.2nF @ 25V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock
IXYS Corporation / Littelfuse
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Power - Max : 125W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 25A
Current - Collector Cutoff (Max) : 600µA
Input Capacitance (Cies) @ Vce : 1.6nF @ 25V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
10 in stock
IXYS Corporation / Littelfuse
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Power - Max : 200W
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Current - Collector Cutoff (Max) : 400µA
Input Capacitance (Cies) @ Vce : 2nF @ 25V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 200W
Switching Energy : 4.6mJ (on), 2.2mJ (off)
Input Type : Standard
Gate Charge : 150nC
Td (on/off) @ 25°C : -
Test Condition : 600V, 30A, 39 Ohm, 15V
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4.9 mOhm @ 110A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 86nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : ISOPLUS i4-PAC™
Package / Case : i4-Pac™5
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 150A
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 120A, 10V
Vgs(th) (Max) @ Id : 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 225nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : 300A
Rds On (Max) @ Id, Vgs : 3.6 mOhm @ 150A, 10V
Vgs(th) (Max) @ Id : 4V @ 2mA
Gate Charge (Qg) (Max) @ Vgs : 172nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock

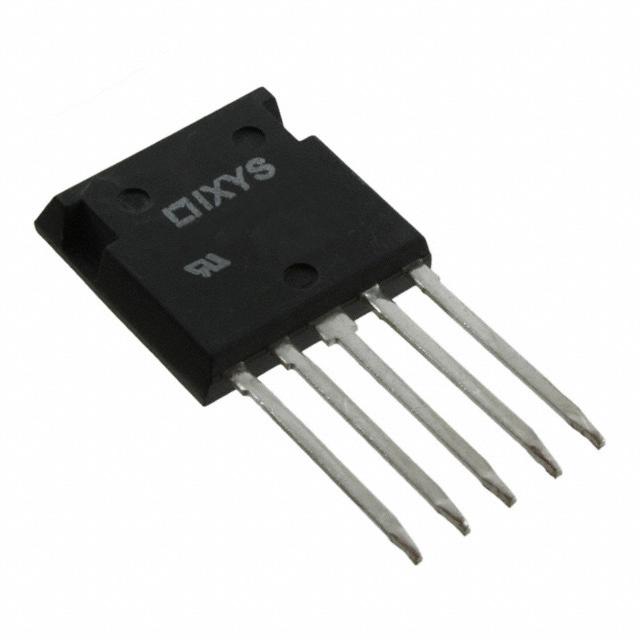

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : Polar™
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 26A, 17A
Rds On (Max) @ Id, Vgs : 60 mOhm @ 25A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 70nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 2720pF @ 25V
Power - Max : 125W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
38 in stock

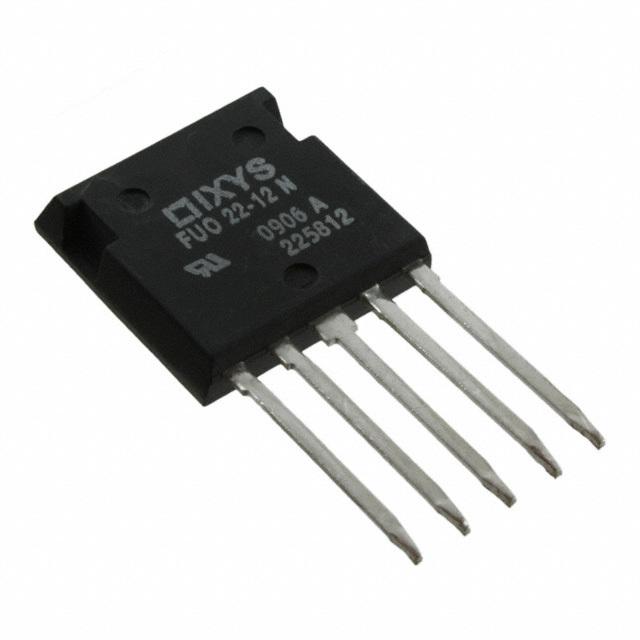

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1.2kV
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 2.37V @ 10A
Current - Reverse Leakage @ Vr : 100µA @ 1200V
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
56 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Three Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1.2kV
Current - Average Rectified (Io) : 28A
Voltage - Forward (Vf) (Max) @ If : 1.62V @ 30A
Current - Reverse Leakage @ Vr : 10µA @ 1200V
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
100 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Three Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1.6kV
Current - Average Rectified (Io) : 28A
Voltage - Forward (Vf) (Max) @ If : 1.62V @ 30A
Current - Reverse Leakage @ Vr : 10µA @ 1600V
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
49 in stock
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Three Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1.6kV
Current - Average Rectified (Io) : 50A
Voltage - Forward (Vf) (Max) @ If : 1.15V @ 15A
Current - Reverse Leakage @ Vr : 20µA @ 1600V
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : i4-Pac™5
Supplier Device Package : ISOPLUS i4-PAC™
0
188 in stock
