IXYS Corporation

- IXYS Corporation/Littelfuse has gained a worldwide reputation as a premier power semiconductor manufacturer. Its diversified product base of specialized power semiconductors, integrated circuits and RF power include low on-resistance Power MOSFETs, Ultra Fast switching IGBTs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, Rectifier Bridges, and Power Interface ICs for applications ranging across industrial, transportation, telecommunications, computer, medical, consumer and clean tech markets.

With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.

Part Number
Manufacturer
Description
Unit Price
In Stock

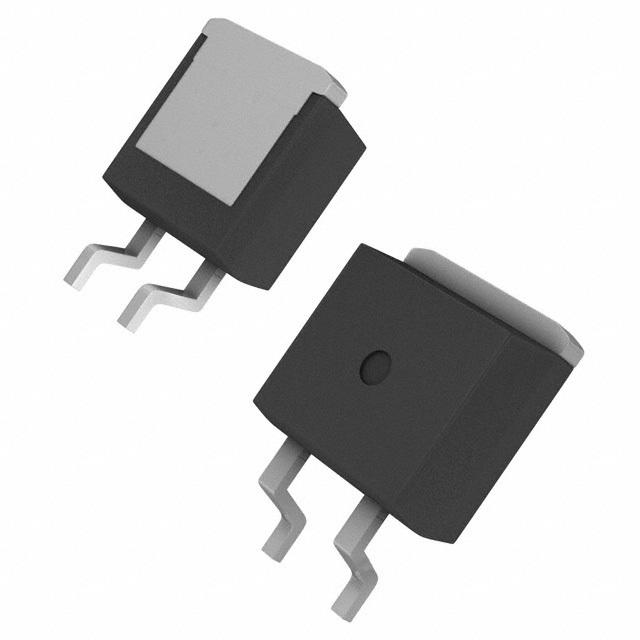

DSI30-08AS DSI30-08AS

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 800V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D²Pak)
Operating Temperature - Junction : -40°C ~ 175°C
0
2370 in stock

DSI30-12A DSI30-12A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 1200V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -40°C ~ 175°C
0
400 in stock

DSI30-12AS DSI30-12AS

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 1200V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB (D²PAK)
Operating Temperature - Junction : -40°C ~ 175°C
0
6863 in stock

DSI30-12AS-TUB DSI30-12AS-TUB

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 1200V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB (D²PAK)
Operating Temperature - Junction : -40°C ~ 175°C
0
33 in stock

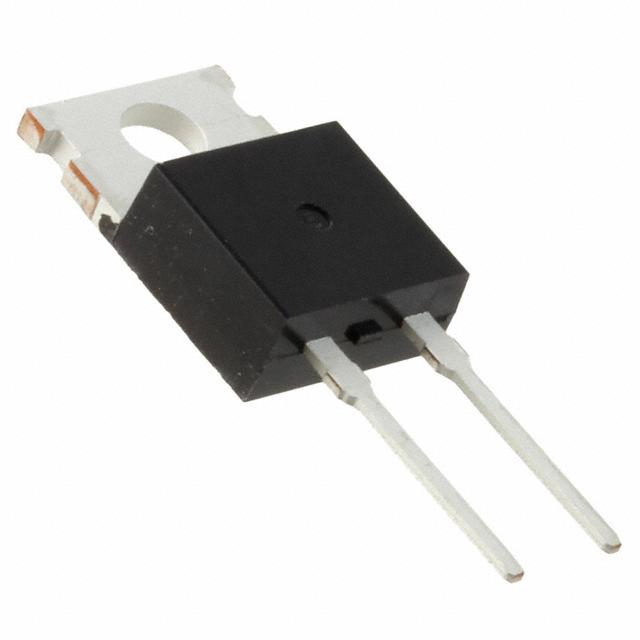

DSI30-16A DSI30-16A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 1600V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -40°C ~ 175°C
0
365 in stock

DSI30-16AS DSI30-16AS

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 1600V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB (D²PAK)
Operating Temperature - Junction : -40°C ~ 175°C
0
3004 in stock

DSI30-16AS-TUB DSI30-16AS-TUB

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.29V @ 30A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 40µA @ 1600V
Capacitance @ Vr, F : 10pF @ 400V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB (D²PAK)
Operating Temperature - Junction : -40°C ~ 175°C
0
599 in stock

DSI45-12A DSI45-12A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 45A
Voltage - Forward (Vf) (Max) @ If : 1.28V @ 45A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 20µA @ 1200V
Capacitance @ Vr, F : 18pF @ 400V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-247-2
Supplier Device Package : TO-247AD
Operating Temperature - Junction : -40°C ~ 175°C
0
590 in stock

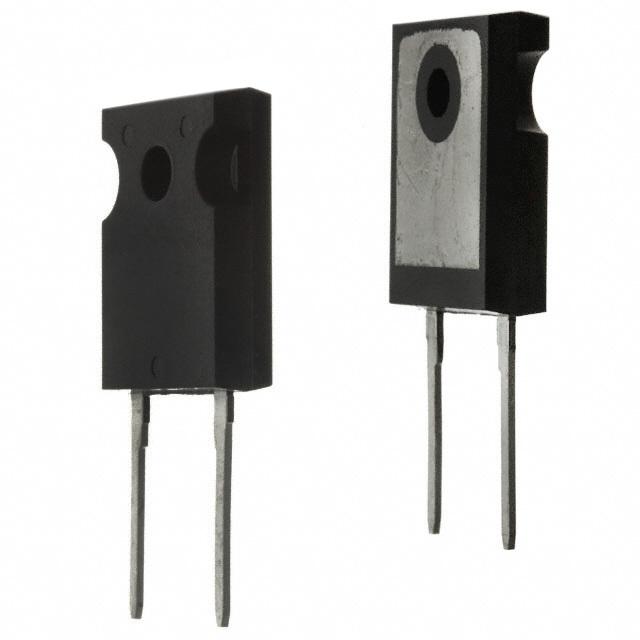

DSI45-16A DSI45-16A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 45A
Voltage - Forward (Vf) (Max) @ If : 1.28V @ 45A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 20µA @ 1600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-247-2
Supplier Device Package : TO-247AD
Operating Temperature - Junction : -40°C ~ 175°C
0
2103 in stock

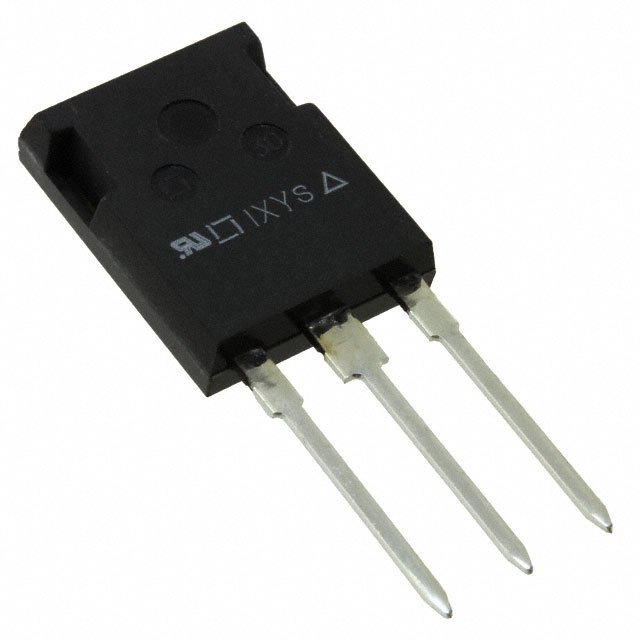

DSI45-16AR DSI45-16AR

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 48A
Voltage - Forward (Vf) (Max) @ If : 1.18V @ 40A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 1600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : ISOPLUS247™
Supplier Device Package : ISOPLUS247™
Operating Temperature - Junction : -40°C ~ 175°C
0
58 in stock

DSP25-12A DSP25-12A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 28A
Voltage - Forward (Vf) (Max) @ If : 1.6V @ 55A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 1200V
Operating Temperature - Junction : -40°C ~ 180°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
100 in stock

DSP25-16A DSP25-16A

IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) (per Diode) : 28A
Voltage - Forward (Vf) (Max) @ If : 1.6V @ 55A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 1600V
Operating Temperature - Junction : -40°C ~ 180°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
839 in stock
