Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

MW4018-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW40 (40W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 18V
Current - Output (Max) : 2.2A
Power (Watts) : 40W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : -

100 in stock

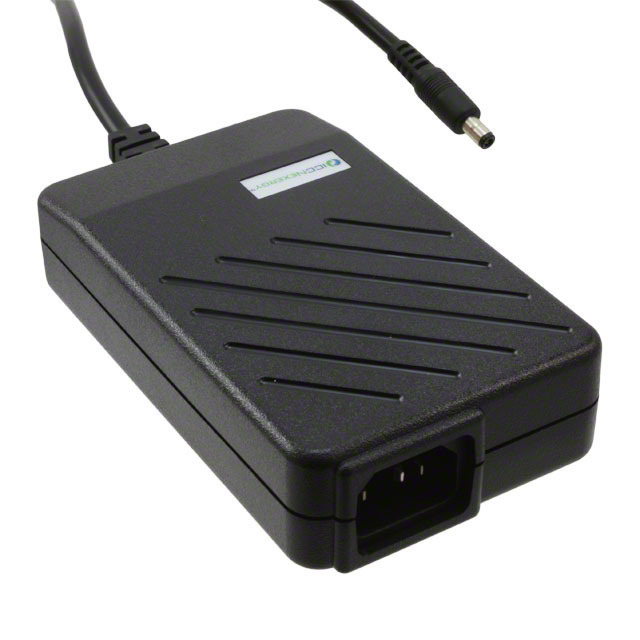

MW4024-760F-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW40 (40W)
Part Status : Not For New Designs
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.7A
Power (Watts) : 41W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : -

368 in stock

MW4024-760F-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW40 (40W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.7A
Power (Watts) : 41W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : -

100 in stock

MW4024-760-NC-BK

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW40 (40W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.67A
Power (Watts) : 40W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : -

100 in stock

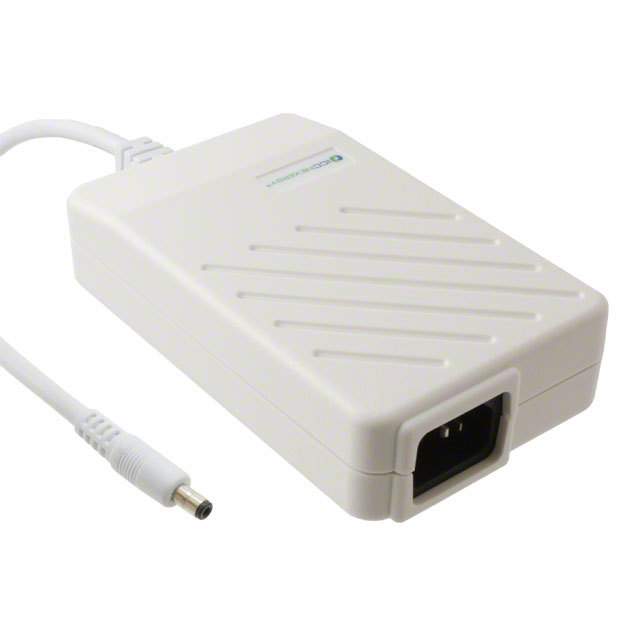

MW4024-760-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW40 (40W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.67A
Power (Watts) : 40W
No Load Power Consumption : -
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : -

100 in stock

MW6512-D5-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW65
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 12V
Current - Output (Max) : 5.4A
Power (Watts) : 65W
No Load Power Consumption : -
Polarization : -
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.07" L x 3.06" W x 1.35" H (128.8mm x 77.7mm x 34.3mm)
Approvals : CE

100 in stock

MW6515-D5-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW65
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 15V
Current - Output (Max) : 4.3A
Power (Watts) : 65W
No Load Power Consumption : -
Polarization : -
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.07" L x 3.06" W x 1.35" H (128.8mm x 77.7mm x 34.3mm)
Approvals : CE

100 in stock

MW6524-D5-NC-WH

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MW65
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 100 ~ 240 VAC
Voltage - Output : 24V
Current - Output (Max) : 2.7A
Power (Watts) : 65W
No Load Power Consumption : -
Polarization : -
Applications : Medical
Efficiency : 80%
Operating Temperature : 0°C ~ 40°C
Output Connector : DIN, 5 Pin
Size / Dimension : 5.07" L x 3.06" W x 1.35" H (128.8mm x 77.7mm x 34.3mm)
Approvals : CE

100 in stock

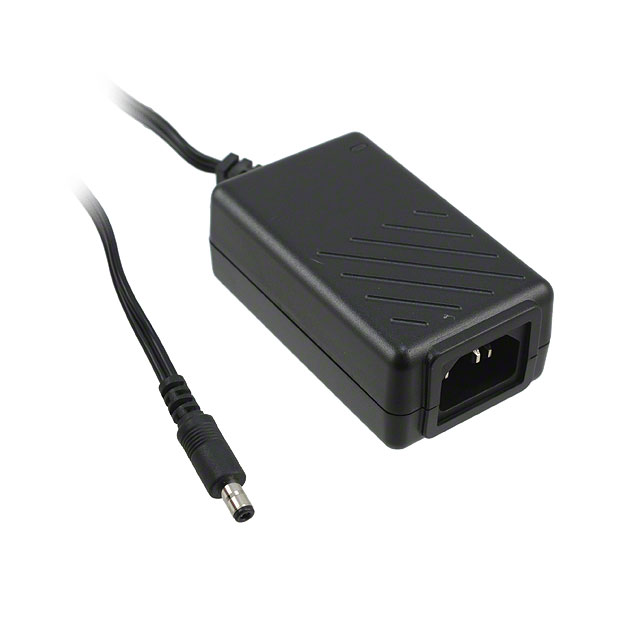

MWA020005A-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 4A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

213 in stock

MWA020005B-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 5V
Current - Output (Max) : 4A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

59 in stock

MWA020012A-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

2848 in stock

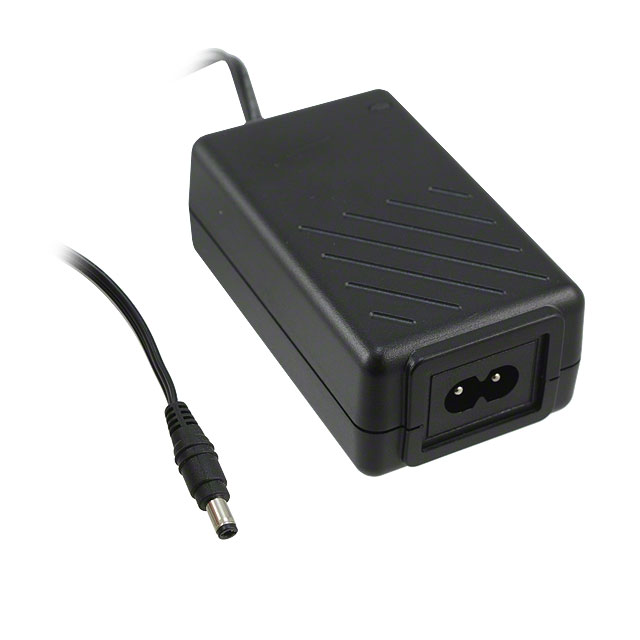

MWA020012B-10A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MWA020 (20W)
Part Status : Active
Region Utilized : International
Form : Desktop (Class II)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.67A
Power (Watts) : 20W
No Load Power Consumption : 300mW (Max)
Polarization : Positive Center
Applications : Medical
Efficiency : Level V
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm)
Approvals : CB, CE, cTUVus

744 in stock
