Honeywell Aerospace
- Honeywell Aerospace is a leading supplier of specialized integrated circuits for aerospace and military markets, and a manufacturer of sensors and electronics for a variety of commercial applications.
Honeywell's magnetoresistive (MR) sensors are the most sensitive, low field, solid state magnetic sensors available to measure direction and magnitude of magnetic fields from 70 mG (7 nT) to 6 G (0.6 mT). Honeywell's magnetoresistor sensors can determine the change in earth's magnetic field due to the presence of a ferromagnetic object or position within the earth's magnetic field. The high bandwidth allows detection of vehicles and other ferrous objects at high speeds. The sensors are contactless and the working distance is dependent on the ferromagnetic mass it is measuring.
Part Number
Manufacturer
Description
Unit Price
In Stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Series : -
Part Status : Obsolete
Type : Switch, SP6T
Frequency : 0Hz ~ 2.5GHz
For Use With/Related Products : HRF-SW1031
Supplied Contents : Board(s)
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
RF Type : Cellular, PCS, GSM, WLL
Topology : Absorptive
Circuit : SP6T
Frequency Range : DC ~ 2.5GHz
Isolation : 40dB
Insertion Loss : 1.7dB
Test Frequency : 3GHz, 2.5GHz
P1dB : 23dBm
IIP3 : 33dBm
Features : -
Impedance : 75 Ohm
Voltage - Supply : 3.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-LCC Exposed Pad
Supplier Device Package : 24-LPCC
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Tube
Series : HTMOS™
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 4
Output Type : -
Slew Rate : 1.4 V/µs
Gain Bandwidth Product : 1.4MHz
-3db Bandwidth : -
Current - Input Bias : 10pA
Voltage - Input Offset : 7mV
Current - Supply : 12.5mA
Current - Output / Channel : 15mA
Voltage - Supply, Single/Dual (±) : 5 V ~ 10 V, ±2.5 V ~ 5 V
Operating Temperature : -55°C ~ 225°C
Mounting Type : Through Hole
Package / Case : 14-CDIP (0.300", 7.62mm)
Supplier Device Package : 14-CDIP
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : HTMOS™
Part Status : Active
Applications : High Temperature
Multiplexer/Demultiplexer Circuit : 1:1
Switch Circuit : SPST
Number of Channels : 4
On-State Resistance (Max) : 100 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 11 V
Voltage - Supply, Dual (V±) : -
-3db Bandwidth : -
Features : -
Operating Temperature : -55°C ~ 225°C (TA)
Package / Case : 14-DIP (0.300", 7.62mm)
Supplier Device Package : 14-CDIP
0
21 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : HTMOS™
Part Status : Active
Applications : High Temperature
Multiplexer/Demultiplexer Circuit : 16:1
Switch Circuit : -
Number of Channels : 1
On-State Resistance (Max) : 400 Ohm
Voltage - Supply, Single (V+) : 5V
Voltage - Supply, Dual (V±) : -
-3db Bandwidth : -
Features : -
Operating Temperature : -55°C ~ 225°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : HTMOS™
Part Status : Active
Applications : High Temperature
Multiplexer/Demultiplexer Circuit : 16:1
Switch Circuit : -
Number of Channels : 1
On-State Resistance (Max) : 400 Ohm
Voltage - Supply, Single (V+) : 5V
Voltage - Supply, Dual (V±) : -
-3db Bandwidth : -
Features : -
Operating Temperature : -55°C ~ 225°C (TA)
Package / Case : 28-CDIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : HTMOS™
Part Status : Active
Applications : High Temperature
Multiplexer/Demultiplexer Circuit : 8:1
Switch Circuit : -
Number of Channels : 2
On-State Resistance (Max) : 400 Ohm
Voltage - Supply, Single (V+) : 5V
Voltage - Supply, Dual (V±) : -
-3db Bandwidth : -
Features : -
Operating Temperature : -55°C ~ 225°C (TA)
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : HTMOS™
Part Status : Active
Applications : High Temperature
Multiplexer/Demultiplexer Circuit : 8:1
Switch Circuit : -
Number of Channels : 2
On-State Resistance (Max) : 400 Ohm
Voltage - Supply, Single (V+) : 5V
Voltage - Supply, Dual (V±) : -
-3db Bandwidth : -
Features : -
Operating Temperature : -55°C ~ 225°C (TA)
Package / Case : 28-CDIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
0
100 in stock

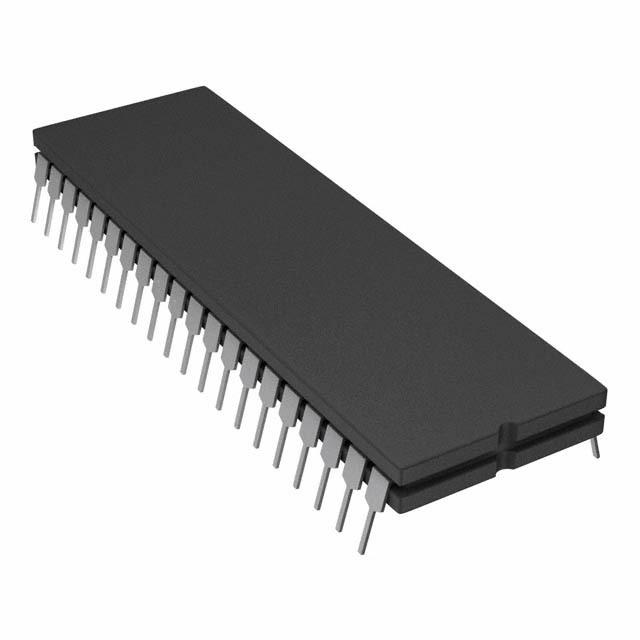

Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Tube
Series : HTMOS™
Part Status : Active
Core Processor : MCS 51
Core Size : 8-Bit
Speed : 16MHz
Connectivity : EBI/EMI, UART/USART
Peripherals : PWM, WDT
Number of I/O : 32
Program Memory Size : 8KB (8K x 8)
Program Memory Type : Mask ROM
EEPROM Size : -
RAM Size : 256 x 8
Voltage - Supply (Vcc/Vdd) : 4.5 V ~ 5.5 V
Data Converters : -
Oscillator Type : Internal
Operating Temperature : -55°C ~ 225°C (TA)
Package / Case : 40-CDIP (0.600", 15.24mm)
Supplier Device Package : 40-Cerdip
0
4 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : -
Part Status : Active
Number of Bits : 12
Sampling Rate (Per Second) : 100k
Number of Inputs : 1
Input Type : Single Ended
Data Interface : SPI, Parallel
Configuration : ADC
Ratio - S/H:ADC : -
Number of A/D Converters : 1
Architecture : SAR
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
Features : -
Operating Temperature : -55°C ~ 225°C
Package / Case : 28-CDIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
0
1 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Tube
Series : HTMOS™
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 400 mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id : 2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 4.3nC @ 5V
Vgs (Max) : 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 28V
FET Feature : -
Power Dissipation (Max) : 50W (Tj)
Operating Temperature : -55°C ~ 225°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : 8-CDIP-EP
Package / Case : 8-CDIP Exposed Pad
0
100 in stock
Honeywell Aerospace
Manufacturer : Honeywell Aerospace
Packaging : Tube
Series : HTMOS™
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 400 mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id : 2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 4.3nC @ 5V
Vgs (Max) : 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 28V
FET Feature : -
Power Dissipation (Max) : 50W (Tj)
Operating Temperature : -
Mounting Type : Through Hole
Supplier Device Package : -
Package / Case : 8-CDIP Exposed Pad
0
100 in stock
