Hirose
- Hirose Electric is a top-tier global connector manufacturer offering a broad range of interconnect devices including RF, coaxial, board-to-board, wire-to-board, circular, micro USB, FPC/FFC, and industrial power connectors. Our card connector series includes solutions for microSD™, SD, and Compact PCI. Hirose Electric supports advanced technologies in the consumer electronics, medical, industrial and automotive markets. Our global manufacturing operations provide optimal supply chain services. Hirose products are well-known for their exceptional quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

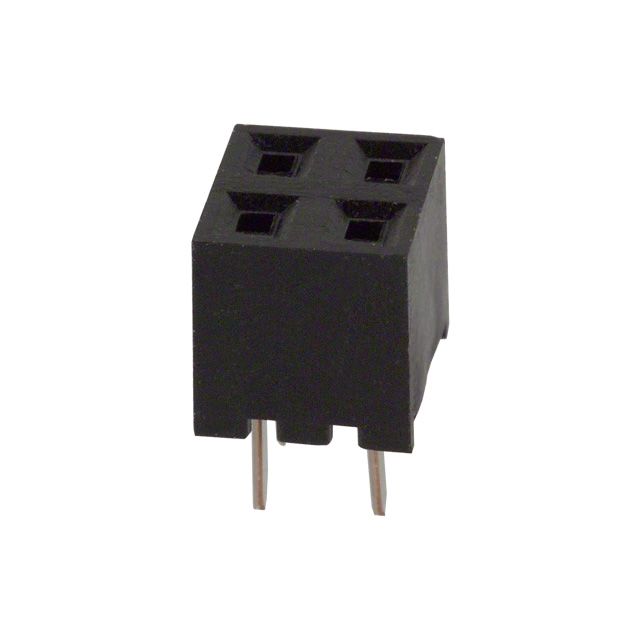

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
73 in stock

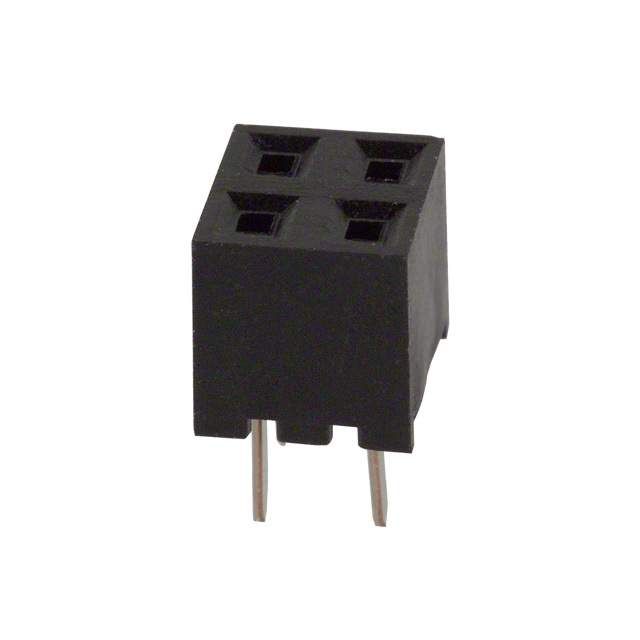

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.079" (2.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
1746 in stock
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
100 in stock
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.079" (2.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
100 in stock

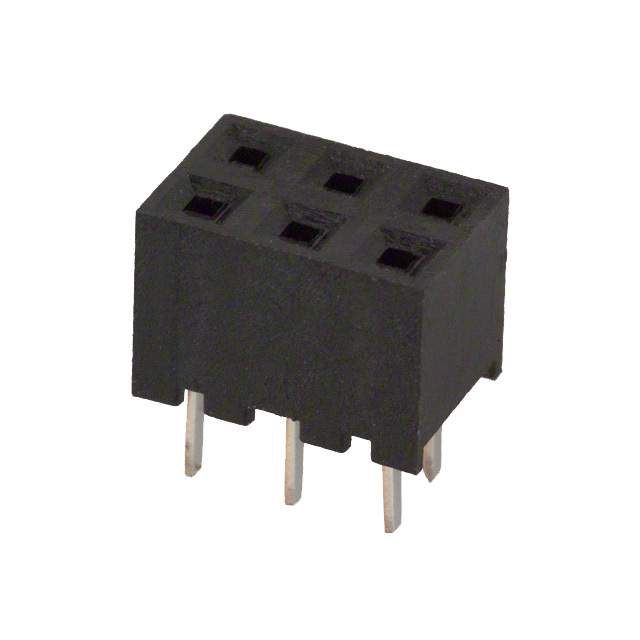

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
65 in stock

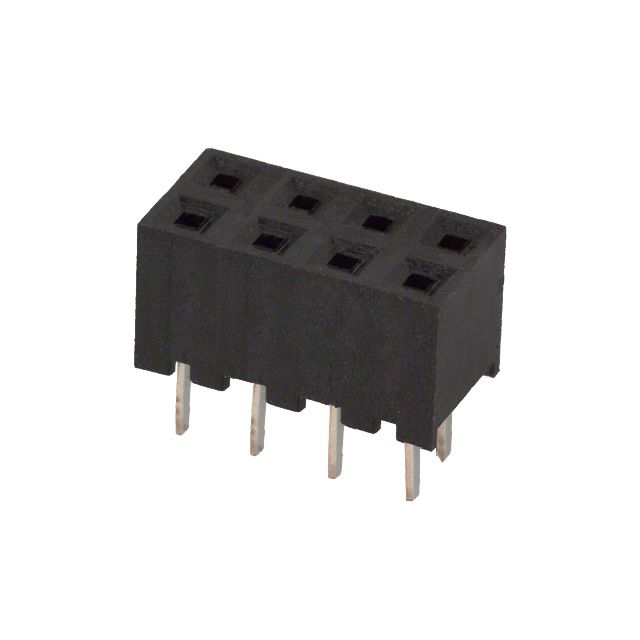

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
2751 in stock

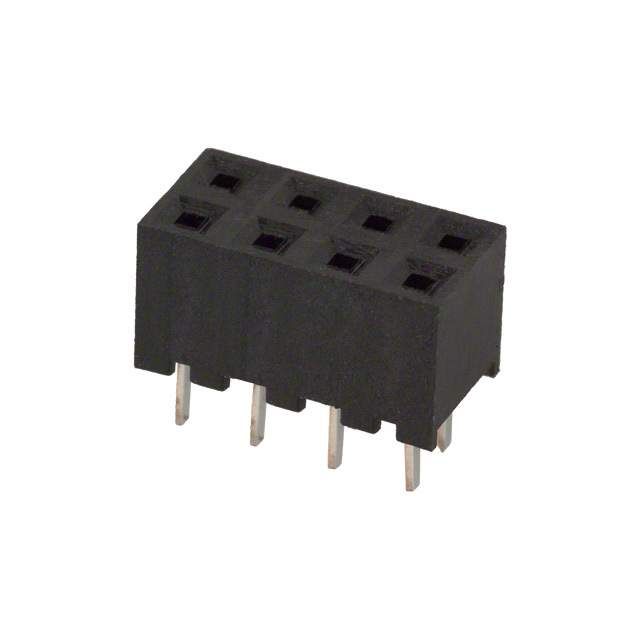

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.079" (2.00mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
68 in stock

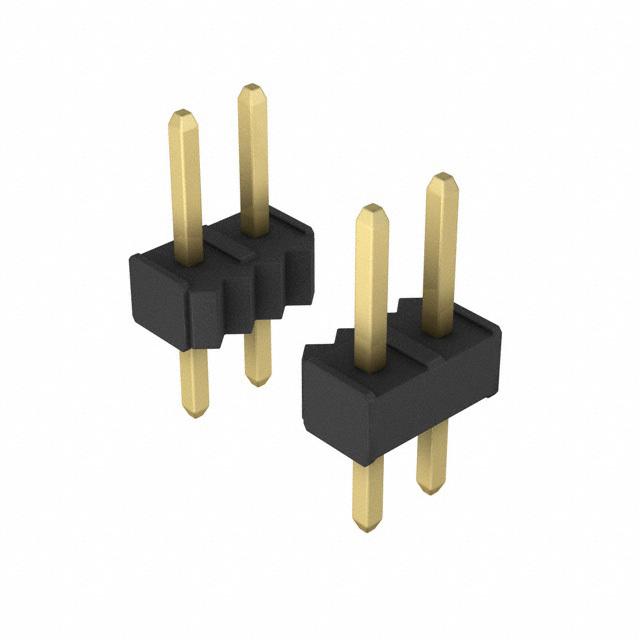

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : 0.276" (7.00mm)
Insulation Height : 0.035" (0.90mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : -
Contact Finish - Post : -
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : 200VAC
0
1455 in stock

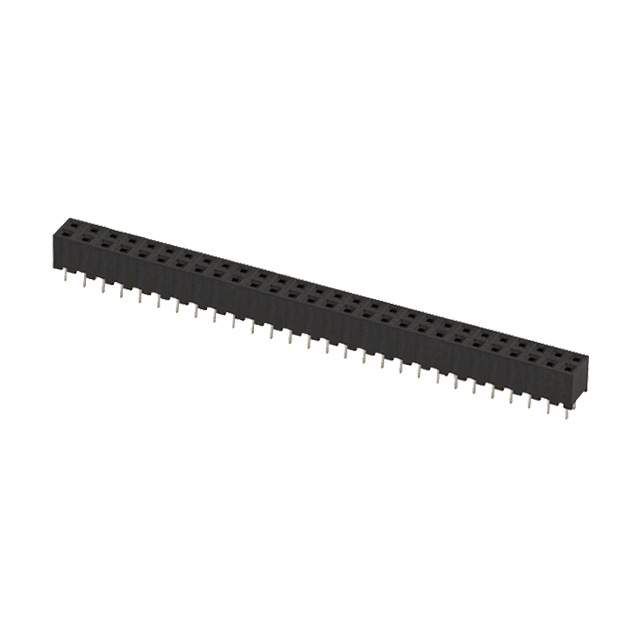

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 62
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.050" (1.27mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
95 in stock
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tray
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Black
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : 0.050" (1.27mm)
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
1344 in stock

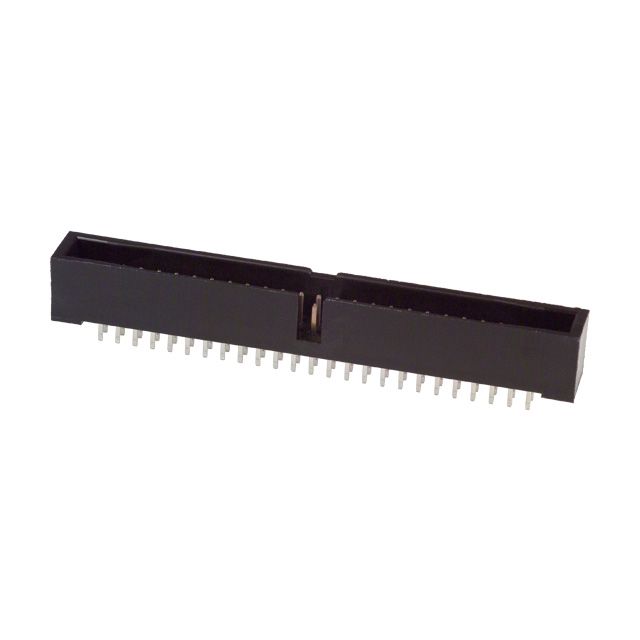

Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3E
Part Status : Obsolete
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.310" (7.87mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : Keying Slot
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 0.5A
Voltage Rating : 12V
0
181 in stock
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3E
Part Status : Obsolete
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 50
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Fastening Type : Friction Lock
Cable Termination : IDC
Wire Type : Ribbon Cable
Wire Gauge : -
Features : Feed Through
Contact Finish : Galvanized
Contact Finish Thickness : -
Color : Black
0
30 in stock
