Hirose

- Hirose Electric is a top-tier global connector manufacturer offering a broad range of interconnect devices including RF, coaxial, board-to-board, wire-to-board, circular, micro USB, FPC/FFC, and industrial power connectors. Our card connector series includes solutions for microSD™, SD, and Compact PCI. Hirose Electric supports advanced technologies in the consumer electronics, medical, industrial and automotive markets. Our global manufacturing operations provide optimal supply chain services. Hirose products are well-known for their exceptional quality and reliability.


Part Number

Manufacturer

Description

Unit Price

In Stock

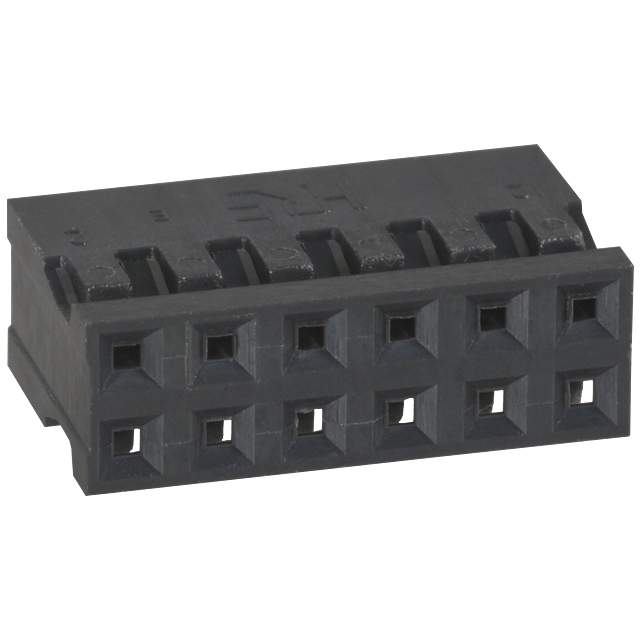

A3B-12D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 12
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

391 in stock

A3B-12PA-2DSA(51)

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : 0.311" (7.90mm)
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : 200VAC

519 in stock

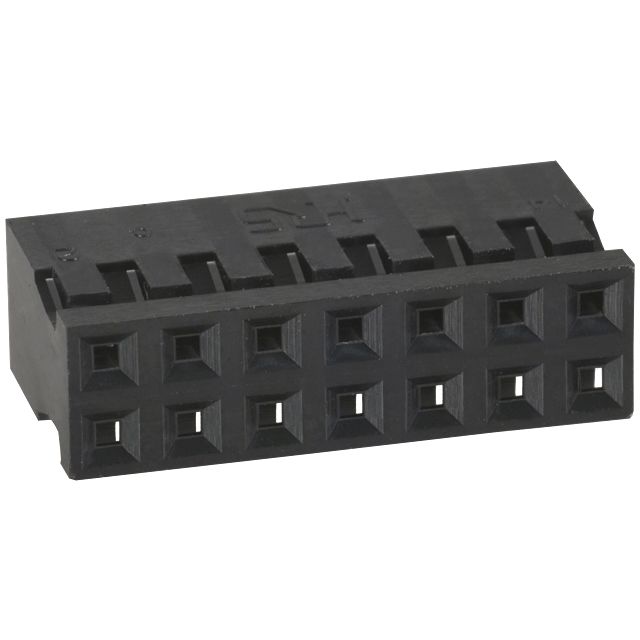

A3B-14D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 14
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

45 in stock

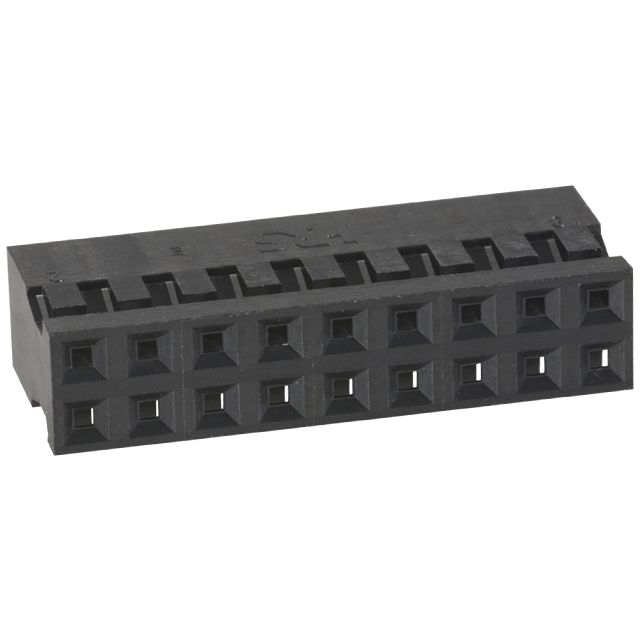

A3B-18D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 18
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

141 in stock

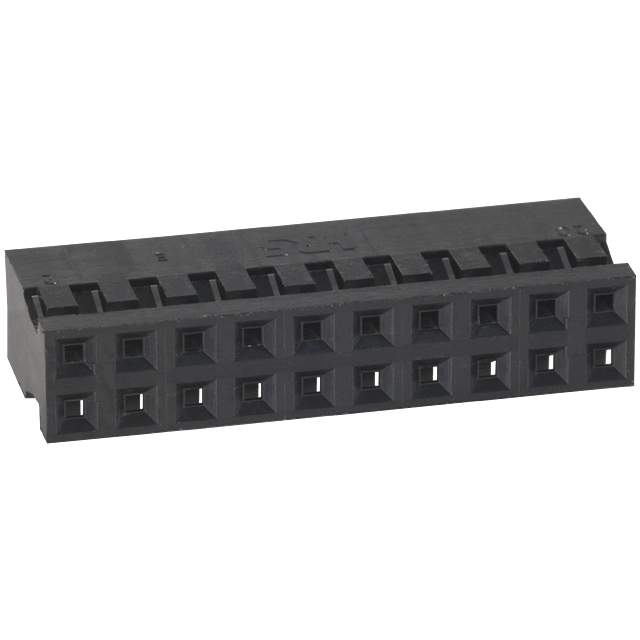

A3B-20D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 20
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

491 in stock

A3B-22PA-2DS(71)

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Obsolete
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 22
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : -
Insulation Height : 0.157" (4.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : 200VAC

39 in stock

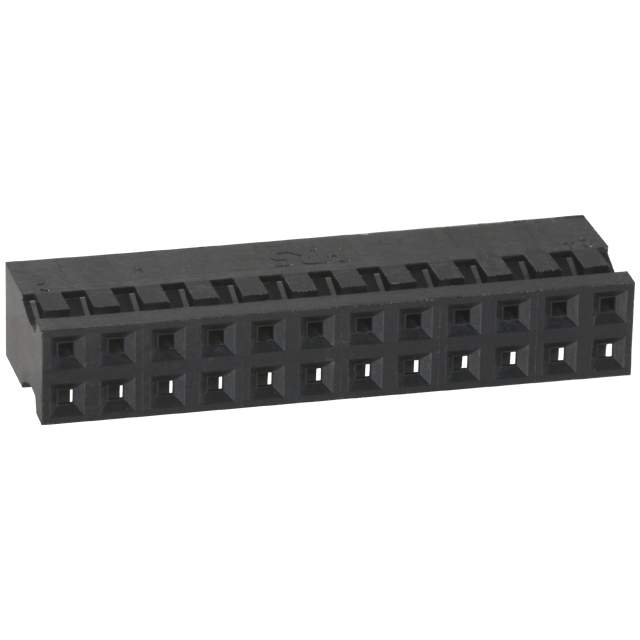

A3B-24D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 24
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

9 in stock

A3B-2630SCC

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Type : -
Pin or Socket : Socket
Contact Termination : Crimp
Wire Gauge : 26-30 AWG
Contact Finish : Gold
Contact Finish Thickness : -

25052 in stock

A3B-40PA-2DS(71)

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Obsolete
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 40
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : -
Insulation Height : 0.157" (4.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : 200VAC

65 in stock

A3B-44PA-2DS(71)

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Obsolete
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 44
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : -
Insulation Height : 0.157" (4.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : 200VAC

54 in stock

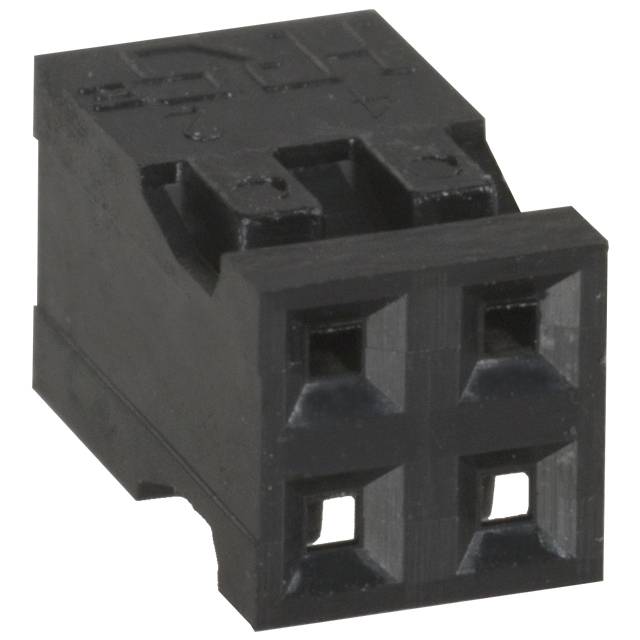

A3B-4D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 4
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

160 in stock

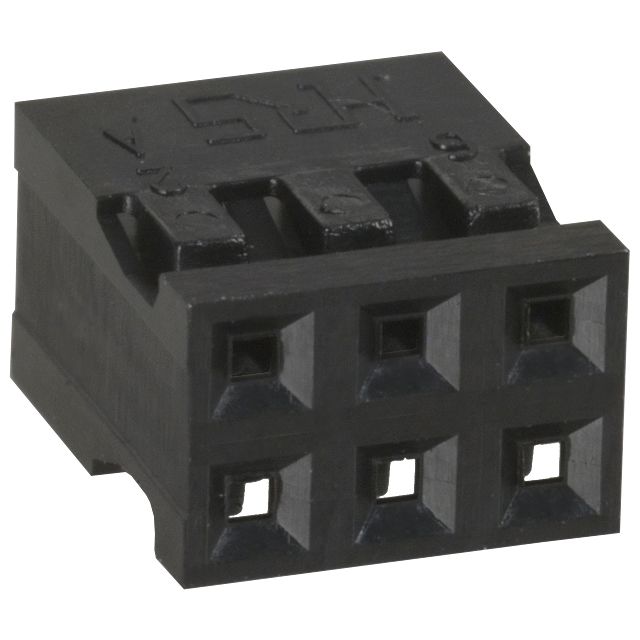

A3B-6D-2C

Hirose

Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 6
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing : 0.079" (2.00mm)
Mounting Type : Free Hanging (In-Line)
Contact Termination : Crimp
Fastening Type : -
Color : Black
Features : -

231 in stock
