Hirose
- Hirose Electric is a top-tier global connector manufacturer offering a broad range of interconnect devices including RF, coaxial, board-to-board, wire-to-board, circular, micro USB, FPC/FFC, and industrial power connectors. Our card connector series includes solutions for microSD™, SD, and Compact PCI. Hirose Electric supports advanced technologies in the consumer electronics, medical, industrial and automotive markets. Our global manufacturing operations provide optimal supply chain services. Hirose products are well-known for their exceptional quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

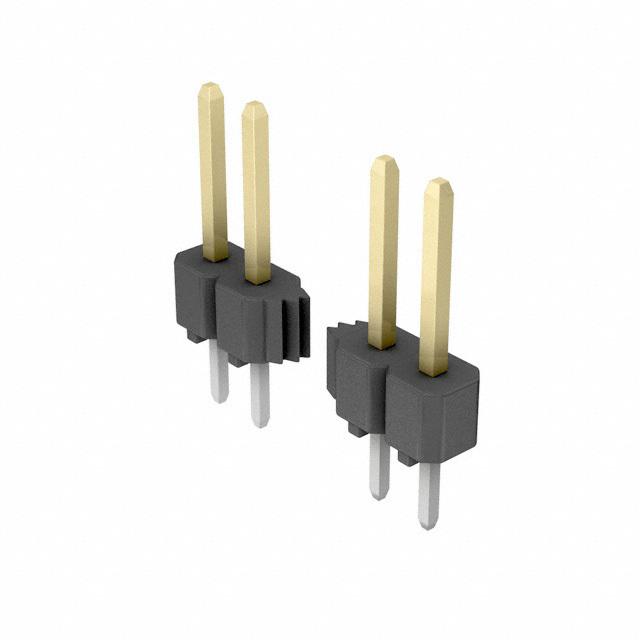

.jpg "Show details for A2-9PA-2.54DSA(71)")
A2-9PA-2.54DSA(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Bulk
Series : A2
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.454" (11.54mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 200V
Packaging : Bulk
Series : A2
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.454" (11.54mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 200V
0
458 in stock

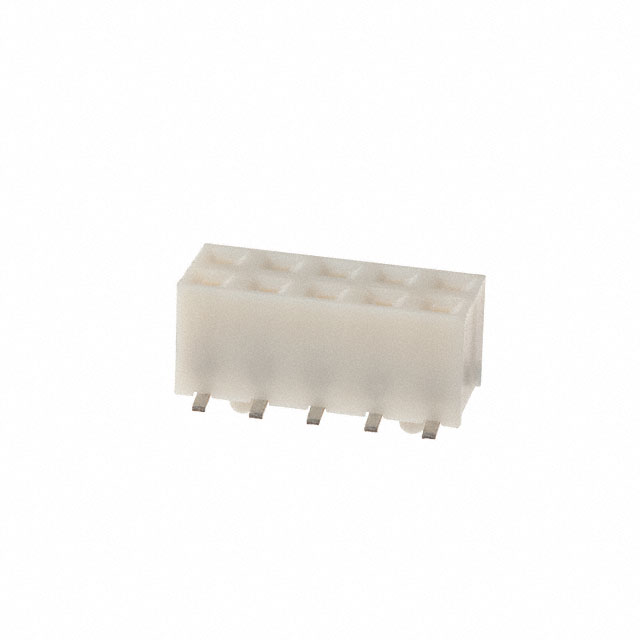

.jpg "Show details for A3-10DA-2SV(71)")
A3-10DA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
240 in stock
.jpg "Show details for A3-10PA-2SV(71)")
A3-10PA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
0
2388 in stock

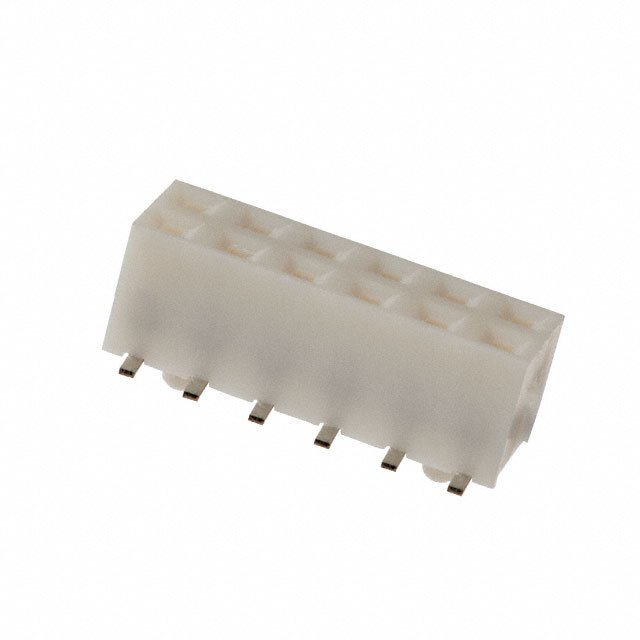

.jpg "Show details for A3-12DA-2SV(71)")
A3-12DA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
4110 in stock
.jpg "Show details for A3-12PA-2SV(71)")
A3-12PA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
0
3774 in stock

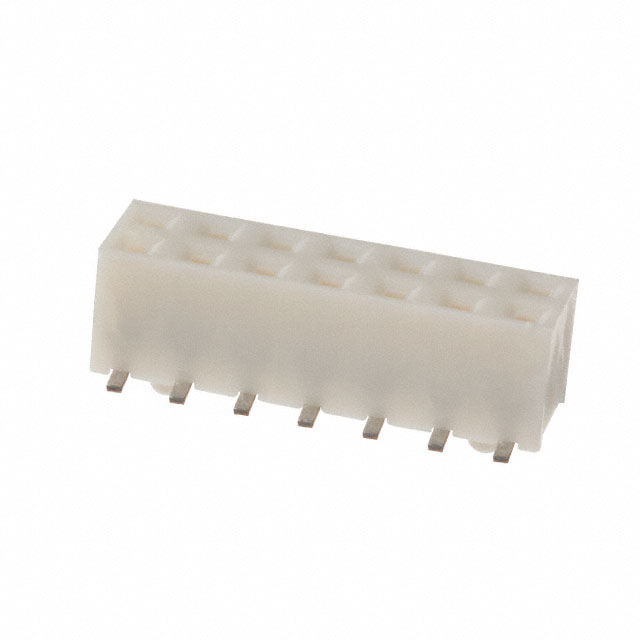

.jpg "Show details for A3-14DA-2SV(71)")
A3-14DA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
1049 in stock
.jpg "Show details for A3-14PA-2SV(71)")
A3-14PA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
0
613 in stock

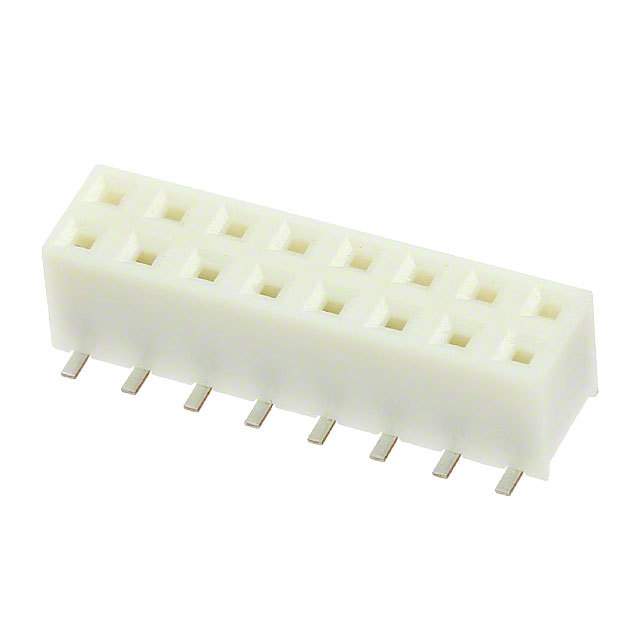

.jpg "Show details for A3-16DA-2SV(71)")
A3-16DA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
814 in stock
.jpg "Show details for A3-16PA-2SV(71)")
A3-16PA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
0
229 in stock

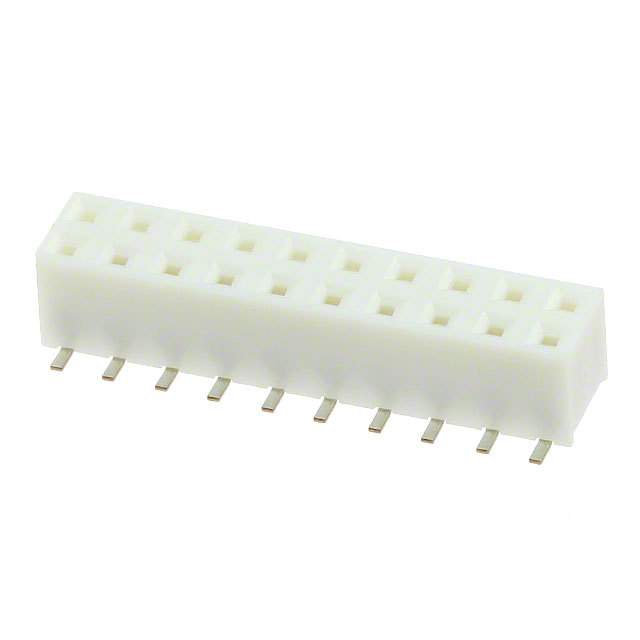

.jpg "Show details for A3-20DA-2SV(71)")
A3-20DA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
2534 in stock
.jpg "Show details for A3-20PA-2SV(71)")
A3-20PA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.138" (3.50mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.071" (1.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyphenylene Sulfide (PPS)
Features : -
Operating Temperature : -55°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Brown
Current Rating : 1A
Voltage Rating : 200V
0
1215 in stock

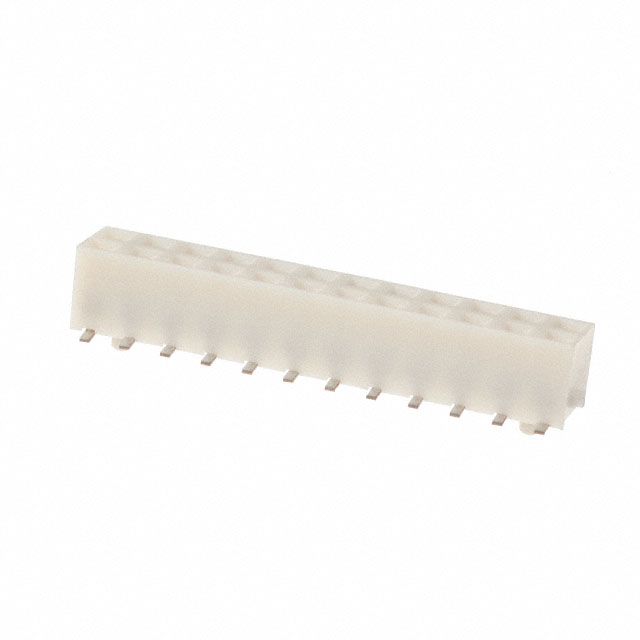

.jpg "Show details for A3-24DA-2SV(71)")
A3-24DA-2SV(71)
Hirose
Manufacturer : Hirose Electric Co Ltd
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
Packaging : Tube
Series : A3
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.079" (2.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 8.00µin (0.203µm)
Insulation Color : Brown
Insulation Height : 0.165" (4.20mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : 5.1mm, 6mm
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 200VAC
0
587 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
