Heatron

- Heatron LED Integration, a leader in LED lighting solutions, helps OEMs reduce cost and speed time to market while ensuring superior quality and performance. Our proficiency in the disciplines of optical, electrical and mechanical design, along with expertise in thermal management, provides you with a world-class LED light source.


Part Number

Manufacturer

Description

Unit Price

In Stock

JDHT8R-A0240-8020-T00-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : Ascendia
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3602 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 45.42V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 20°
Features : -
Size / Dimension : 191.10mm Diameter
Height : 88.54mm
Light Emitting Surface (LES) : 135.00mm Diameter
Lens Type : Flat

100 in stock

JDHT8R-A0240-8043-S00-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : Ascendia
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3626 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 45.42V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 43°
Features : -
Size / Dimension : 191.10mm Diameter
Height : 88.54mm
Light Emitting Surface (LES) : 135.00mm Diameter
Lens Type : Flat

100 in stock

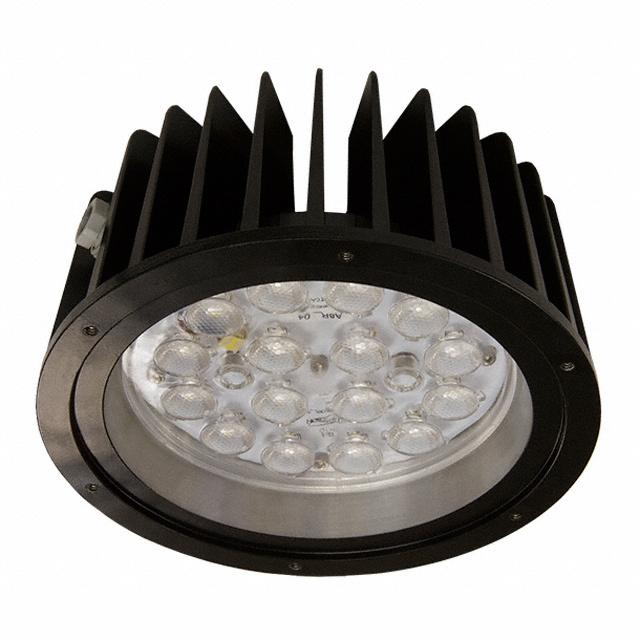

JDHT8R-A0240-8043-T00-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : Ascendia
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3626 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 45.42V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 43°
Features : -
Size / Dimension : 191.10mm Diameter
Height : 88.54mm
Light Emitting Surface (LES) : 135.00mm Diameter
Lens Type : Flat

100 in stock

JDHT8R-A0240-8080-S00-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : Ascendia
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3549 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 45.42V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 80°
Features : -
Size / Dimension : 191.10mm Diameter
Height : 88.54mm
Light Emitting Surface (LES) : 135.00mm Diameter
Lens Type : Flat

100 in stock

JDHT8R-A0240-8080-T00-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : Ascendia
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3549 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 45.42V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 80°
Features : -
Size / Dimension : 191.10mm Diameter
Height : 88.54mm
Light Emitting Surface (LES) : 135.00mm Diameter
Lens Type : Flat

100 in stock

JDHT-ALK24-A1440-803-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2559 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 71.2V
Lumens/Watt @ Current - Test : 103 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 144.00mm L x 180.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

JDHT-ALK24-A1440-805-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4257 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 74.1V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 144.00mm L x 180.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

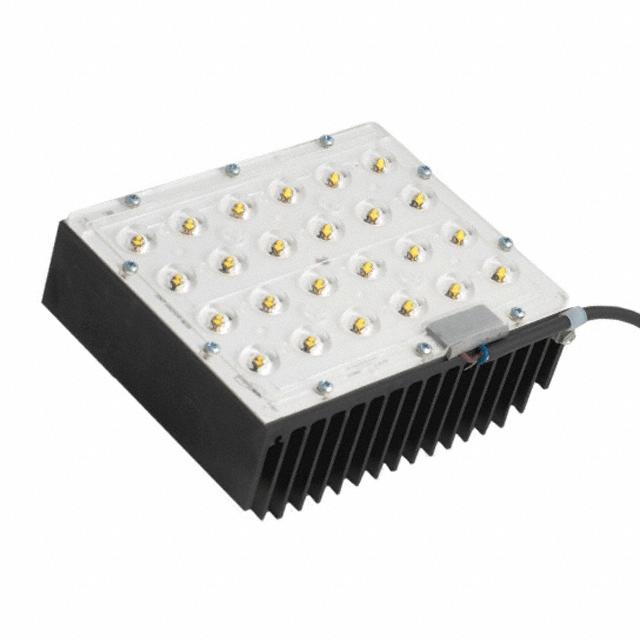

JDHT-ALK24-A1450-803-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4307 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 74.1V
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 144.00mm L x 180.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

JDHT-ALK24-A1450-805-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2589 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 71.2V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 144.00mm L x 180.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

JDHT-ALK36-A1440-803-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3839 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 106.8V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 180.00mm L x 200.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

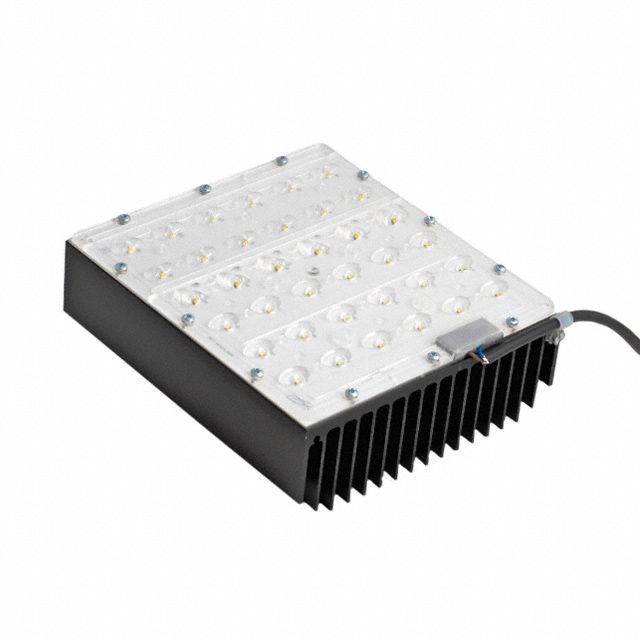

JDHT-ALK36-A1440-805-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 6385 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 111.2V
Lumens/Watt @ Current - Test : 82 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 180.00mm L x 200.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock

JDHT-ALK36-A1450-803-S02-NSA

Heatron

Manufacturer : Heatron Inc.
Packaging : -
Series : ALK
Part Status : Discontinued at
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 6461 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 111.2V
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : -
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 180.00mm L x 200.00mm W
Height : 66.10mm
Light Emitting Surface (LES) : -
Lens Type : Domed

100 in stock
