Hammond Manufacturing
- Hammond Manufacturing Co. is a manufacturer of a wide range of standard electronic enclosures and transformers, since 1917. The Electronics Group manufactures general purpose, hand-held and instrument enclosures in plastic (either economical styrene or high impact, flame retardant ABS), aluminum, die-cast aluminum and steel. A complete line of chassis and accessories is also offered.
Part Number
Manufacturer
Description
Unit Price
In Stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 13.6A, Series 6.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 187.96mm Dia
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : -
0
100 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 31.26A, Series 15.63A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
4 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 33.4A, Series 16.7A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
1 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
3 in stock

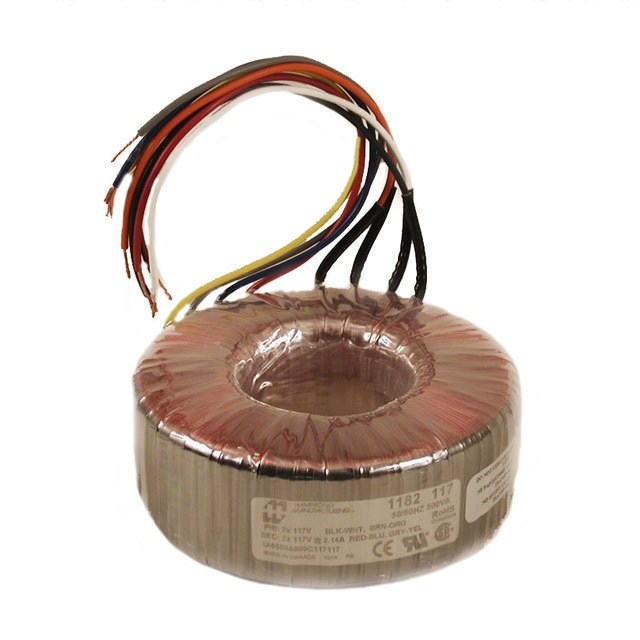

Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 40V, Series 80V
Current - Output (Max) : Parallel 37.5A, Series 18.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : -
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : 24 lbs (10.9kg)
0
5 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : -
Series : -
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
9 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 4, 8
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 30Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 12W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.280" L x 2.350" W (83.31mm x 59.69mm)
Height - Seated (Max) : 2.000" (50.80mm)
Termination Style : Wire Leads
0
31 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 70V
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 3.130" W (88.90mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
7 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 70V
Insertion Loss : -
Return Loss : -
Power Level : 250W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
6 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V, 25V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 25V, 70V
Insertion Loss : -
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.250" L x 4.030" W (57.15mm x 102.36mm)
Height - Seated (Max) : 2.630" (66.80mm)
Termination Style : Wire Leads
0
10 in stock
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V, 25V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 25V, 70V
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
5 in stock

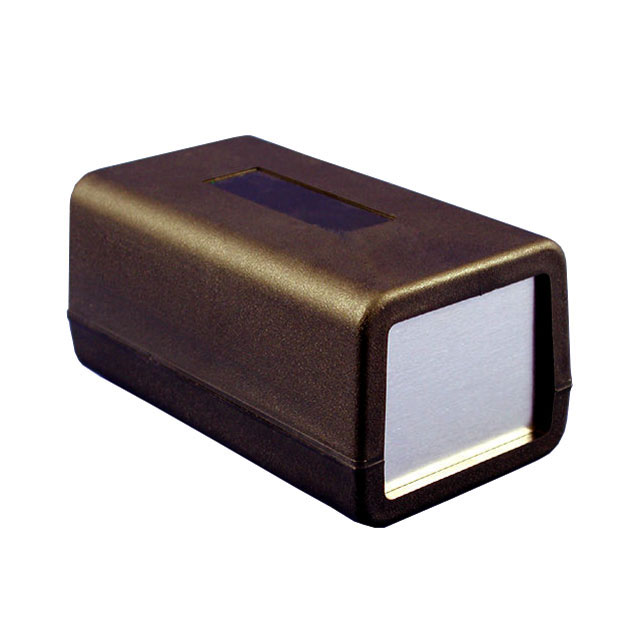

Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1210
Part Status : Active
Container Type : Box
Size / Dimension : 5.202" L x 2.960" W (132.13mm x 75.18mm)
Height : 2.437" (61.90mm)
Area (L x W) : 15.3 in² (99 cm²)
Design : Split Sides and End Panel(s)
Material : Plastic, ABS
Color : Black
Thickness : 0.090" (2.29mm)
Features : Flame Retardant, PCB Supports
Ratings : -
Material Flammability Rating : -
0
25 in stock
