Global Power Technologies Group, Inc.
- Global Power Technologies Group, Inc. (“GPTG”) founded in 2007 is an integrated development and manufacturing company dedicated to products based on Silicon Carbide (SiC) technologies. These products will be foundational to the power electronics and energy industries in future years where advanced technologies are needed for low cost, highly efficient power generation, conversion and transmission.
Part Number
Manufacturer
Description
Unit Price
In Stock
GP1M006A070FH
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 700V
Current - Continuous Drain (Id) @ 25°C : 5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.65 Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1500pF @ 25V
FET Feature : -
Power Dissipation (Max) : 39W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 700V
Current - Continuous Drain (Id) @ 25°C : 5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.65 Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1500pF @ 25V
FET Feature : -
Power Dissipation (Max) : 39W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
GP1M007A065CG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 650V
Current - Continuous Drain (Id) @ 25°C : 6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 3.25A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1201pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 650V
Current - Continuous Drain (Id) @ 25°C : 6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 3.25A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1201pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
GP1M007A090FH
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.9 Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1969pF @ 25V
FET Feature : -
Power Dissipation (Max) : 40.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.9 Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1969pF @ 25V
FET Feature : -
Power Dissipation (Max) : 40.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
GP1M007A090H
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.9 Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1969pF @ 25V
FET Feature : -
Power Dissipation (Max) : 250W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.9 Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 49nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1969pF @ 25V
FET Feature : -
Power Dissipation (Max) : 250W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
100 in stock
GP1M008A025CG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
GP1M008A025FG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 17.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 17.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
GP1M008A025HG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

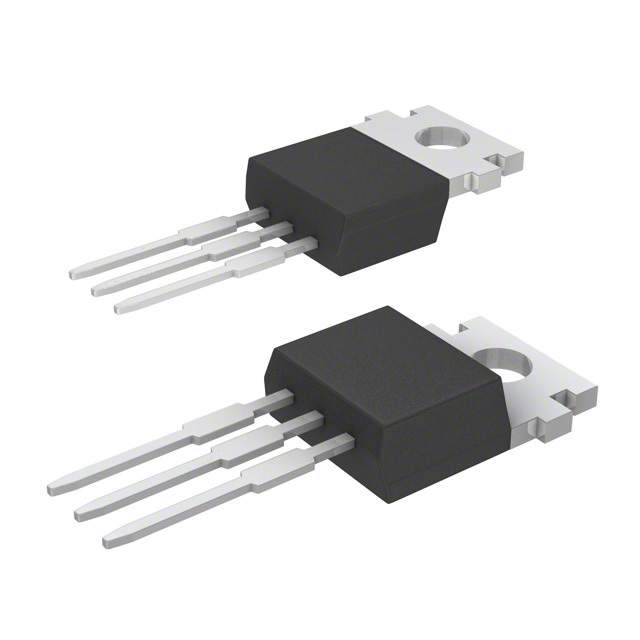

Supplier Device Package : TO-220
Package / Case : TO-220-3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
100 in stock
GP1M008A025PG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

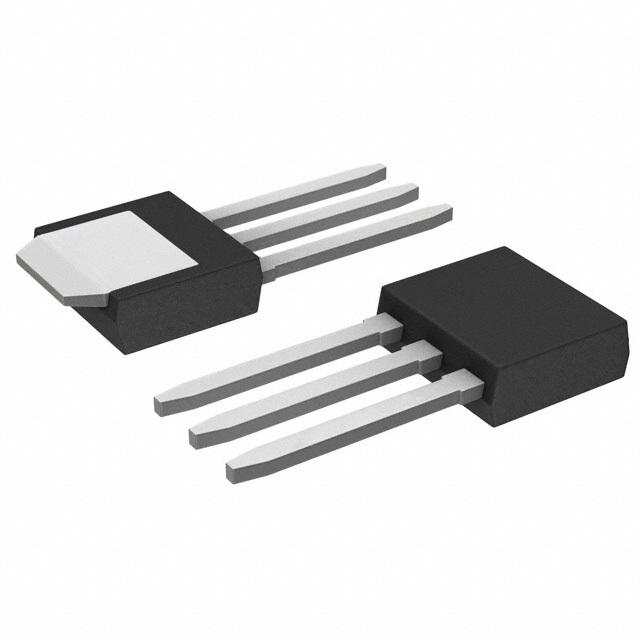

Supplier Device Package : I-PAK
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 600 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 423pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
0
100 in stock
GP1M008A050CG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D-Pak
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
GP1M008A050FG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 39W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 39W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
GP1M008A050HG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
100 in stock
GP1M008A050PG
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 850 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 937pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
