Elna America

- Elna America, Inc. (a wholly-owned subsidiary of Elna Company, Ltd., Yokohama, Japan) is one of the world’s largest multi-national leaders in the design and manufacturing of aluminum electrolytic capacitors; tantalum solid-state electrolytic capacitors, and electric double layer capacitors.

Elna has gained a world-wide reputation for superior product quality, customer service & support, and pioneering leadership in the development of new technologies.

Founded in 1937, Elna capacitors are preferred and specified by many of the world’s leading manufacturers whose design, engineering, and purchasing professionals recognize the measurable advantages of both quality and economy that exists in every Elna product. Elna's factories have achieved ISO-9001, ISO-14001, QS-9000, & TS-16949 approvals.

Elna technologies support audio, video, automotive, multimedia, manufacturing equipment, and many other markets in applications such as personal computers, digital cameras, cellular telephones, electronic office equipment, automotive control components, and GPS navigation systems to name a few.


Part Number

Manufacturer

Description

Unit Price

In Stock

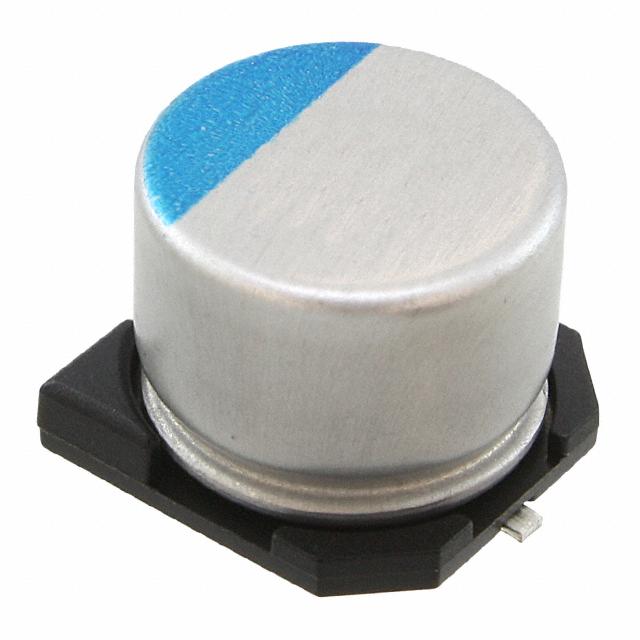

PVH-35V220MH80E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVH
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 150 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.409" L x 0.409" W (10.40mm x 10.40mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

1186 in stock

PVM-10V121MF60E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Active
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.53A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

3650 in stock

PVM-10V221MG70E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Discontinued at
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 21 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.22A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.331" L x 0.331" W (8.40mm x 8.40mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

30 in stock

PVM-10V271MG70E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Discontinued at
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 21 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.22A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.331" L x 0.331" W (8.40mm x 8.40mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

100 in stock

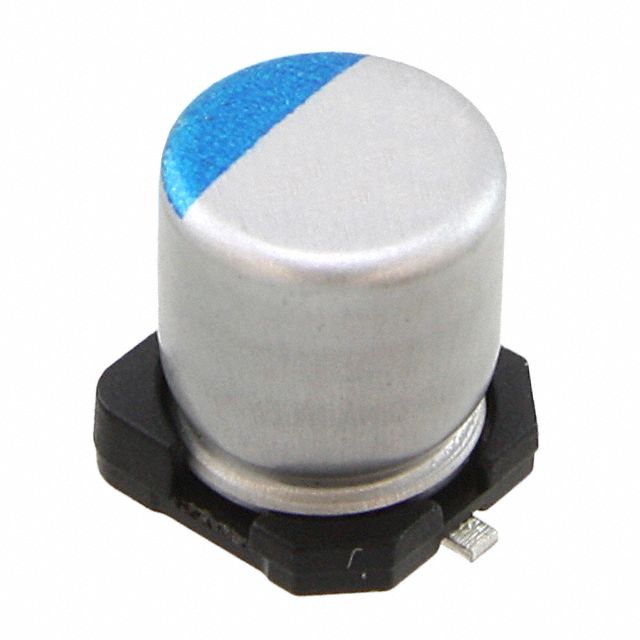

PVM-10V470ME60E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Discontinued at
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.31A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

916 in stock

PVM-10V680ME60E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Discontinued at
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.31A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

800 in stock

PVM-16V101MG70E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 24 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.01A @ 100kHz
Impedance : 1.15 Ohms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.331" L x 0.331" W (8.40mm x 8.40mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

438 in stock

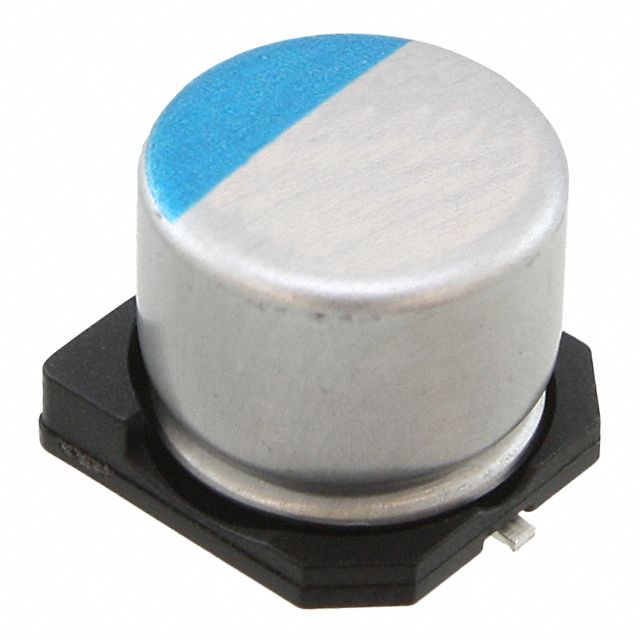

PVM-16V121MG70E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Discontinued at
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 24 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.01A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.331" L x 0.331" W (8.40mm x 8.40mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

100 in stock

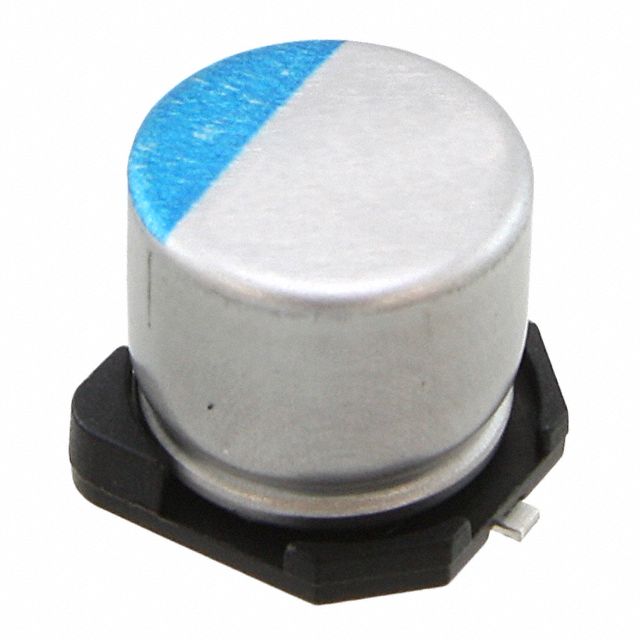

PVM-16V680MF60E-R2

Elna America

Manufacturer : Elna America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PVM
Part Status : Discontinued at
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.39A @ 100kHz
Impedance : 1.25 Ohms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

993 in stock
