Dialight
- Dialight’s extensive product range covers all your visual indication needs. From discrete through-hole LEDs or MicroLED® surface-mount LEDs, to Through Hole CBI® and Prism® vertical and right-angle indicators that precisely locate lensed indicators on your panel or display, to engineered OptoPipe® light-pipes that channel light around obstacles, to panel-mount LED indicators with NEMA, IP and UL ratings, to lamp holders and lens caps for high-voltage applications, to replacement LED bulbs, Dialight has an indicator for every application.
Our range of high-power LED optics, LED lighting modules, and LED drivers allow for the immediate deployment of solid-state light in industrial applications with virtually no design effort or expertise. Bring Dialight’s quality, reputation, and more than 70 years of experience to light in your indication or industrial lighting application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Dialight
Manufacturer : Dialight
Series : PWD
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 55 ~ 180 V
Current - Output (Max) : 350mA
Power (Watts) : 60W
Voltage - Isolation : -
Dimming : -
Features : OTP
Ratings : -
Operating Temperature : -20°C ~ 50°C
Efficiency : 89%
Termination Style : Wire Leads
Size / Dimension : 7.51" L x 2.08" W x 1.30" H (190.8mm x 52.8mm x 33.0mm)
0
100 in stock
Dialight
Manufacturer : Dialight
Series : PWD
Part Status : Preliminary
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 55 ~ 180 V
Current - Output (Max) : 350mA
Power (Watts) : 60W
Voltage - Isolation : -
Dimming : -
Features : OTP
Ratings : -
Operating Temperature : -20°C ~ 50°C
Efficiency : 89%
Termination Style : Wire Leads
Size / Dimension : 7.51" L x 2.08" W x 1.30" H (190.8mm x 52.8mm x 33.0mm)
0
100 in stock
Dialight
Manufacturer : Dialight
Series : PWD
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 264VAC
Voltage - Output : 20 ~ 104 V
Current - Output (Max) : 700mA
Power (Watts) : 60W
Voltage - Isolation : -
Dimming : -
Features : OTP
Ratings : -
Operating Temperature : -20°C ~ 50°C
Efficiency : 91%
Termination Style : Wire Leads
Size / Dimension : 7.51" L x 2.08" W x 1.30" H (190.8mm x 52.8mm x 33.0mm)
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : -
Series : Powerwhite
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 7°
Features : -
Size / Dimension : 35.00mm Diameter
Height : 37.50mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : -
Series : Powerwhite
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 7°
Features : -
Size / Dimension : 35.00mm Diameter
Height : 37.50mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : -
Series : Powerwhite
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 7°
Features : -
Size / Dimension : 35.00mm Diameter
Height : 37.50mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : -
Series : Powerwhite
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5600K
Wavelength : -
Configuration : Round, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 7°
Features : -
Size / Dimension : 35.00mm Diameter
Height : 37.50mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : -
Series : Powerwhite
Part Status : Obsolete
Type : LED Engine
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 7°
Features : -
Size / Dimension : 35.00mm Diameter
Height : 37.50mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : -
Series : Powerwhite
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Round, Plug and Play
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 7°
Features : -
Size / Dimension : 35.00mm Diameter
Height : 37.50mm
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock
Dialight
Manufacturer : Dialight
Packaging : Bulk
Series : -
Part Status : Obsolete
Color : -
Wavelength - Peak : -
Configuration : -
Current : -
Millicandela Rating : -
Viewing Angle : -
Lens Type : -
Lens Style/Size : -
Voltage Rating : -
Mounting Type : Through Hole
0
100 in stock
Dialight
Manufacturer : Dialight
Series : RFC
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 3
Voltage - Input (Min) : 110VAC
Voltage - Input (Max) : 240VAC
Voltage - Output : 3 ~ 24 V
Current - Output (Max) : 350mA
Power (Watts) : -
Voltage - Isolation : -
Dimming : ELV
Features : Remote On/Off, SCP
Ratings : -
Operating Temperature : -10°C ~ 55°C
Efficiency : -
Termination Style : Terminal Block
Size / Dimension : 7.06" L x 2.10" W x 1.27" H (179.2mm x 53.3mm x 32.3mm)
0
100 in stock

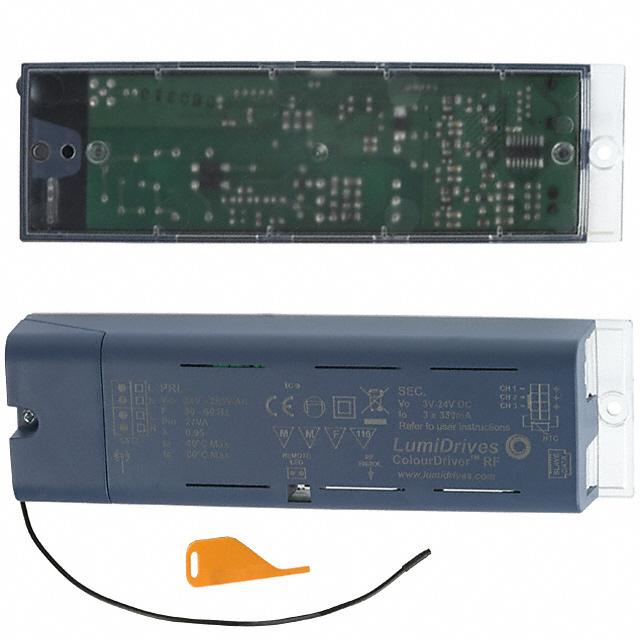

Dialight
Manufacturer : Dialight
Series : RFC
Part Status : Obsolete
Accessory Type : LED - Driver
For Use With/Related Products : LumiDrives™Series
0
100 in stock
