Delta Electronics

- Delta Group is the world's largest provider of switching power supplies and brushless fans, as well as a major source for power management solutions, components, visual displays, industrial automation, networking products, and renewable energy solutions. Established in 1971, Delta Group has sales offices worldwide and manufacturing plants in Taiwan, Thailand, China, Mexico and Europe. As a global leader in power electronics, Delta's mission is "To provide innovative, clean and efficient energy solutions for a better tomorrow." Delta is committed to environmental protection and has implemented green, lead-free production and recycling and waste management programs for many years.

Part Number
Manufacturer
Description
Unit Price
In Stock

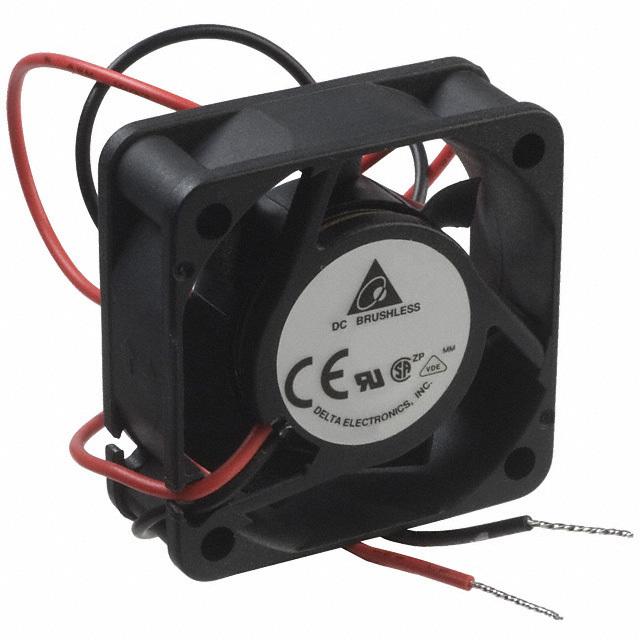

AFB0424VHB AFB0424VHB

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 13.0 CFM (0.364m鲁/min)
Static Pressure : 0.459 in H2O (114.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.5 dB(A)
Power (Watts) : 2.40W
RPM : 9500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.055 lb (24.95g)
0
561 in stock

AFB04512HA AFB04512HA

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 45mm L x 45mm H
Width : 10.00mm
Air Flow : 11.8 CFM (0.330m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 34.5 dB(A)
Power (Watts) : 2.04W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UR, VDE
Weight : 0.035 lb (15.88g)
0
100 in stock

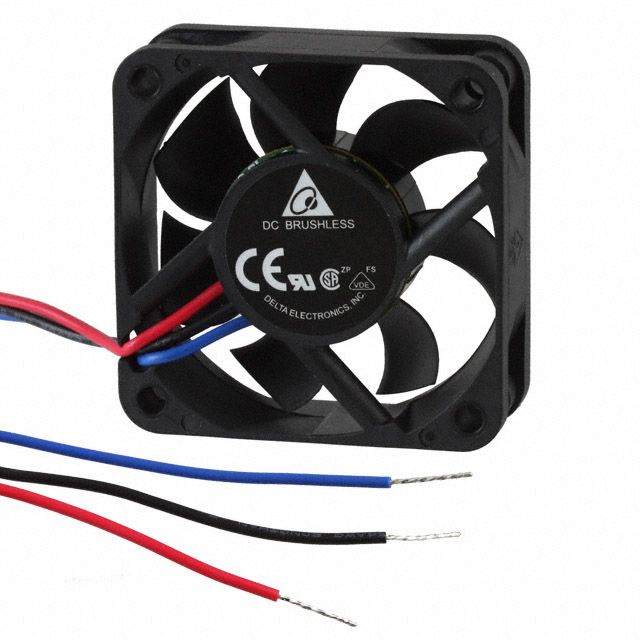

AFB04512HB-F00 AFB04512HB-F00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 45mm L x 45mm H
Width : 15.00mm
Air Flow : 14.0 CFM (0.392m鲁/min)
Static Pressure : 0.223 in H2O (55.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 33.5 dB(A)
Power (Watts) : 1.68W
RPM : 6300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.037 lb (16.78g)
0
592 in stock

AFB04512LA AFB04512LA

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 45mm L x 45mm H
Width : 10.00mm
Air Flow : 7.7 CFM (0.216m鲁/min)
Static Pressure : 0.081 in H2O (20.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 24.5 dB(A)
Power (Watts) : 960mW
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UR, VDE
Weight : 0.035 lb (15.88g)
0
100 in stock

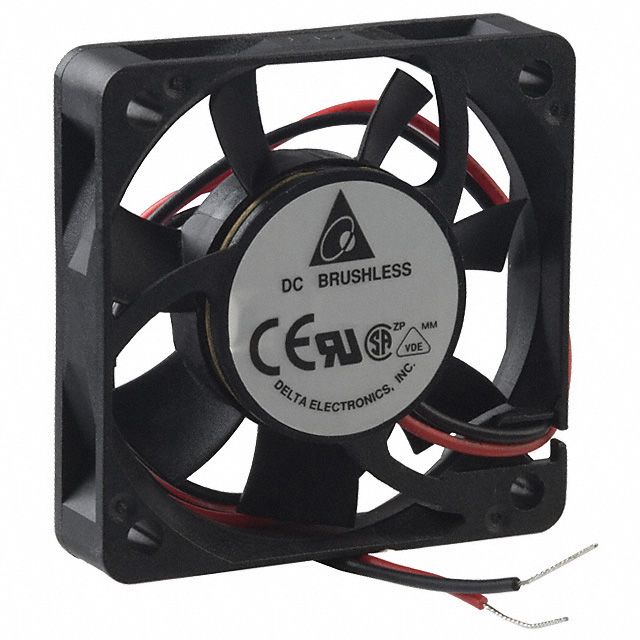

AFB04512MA AFB04512MA

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 45mm L x 45mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m鲁/min)
Static Pressure : 0.127 in H2O (31.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.32W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.034 lb (15.42g)
0
1100 in stock

AFB0505LB-R00 AFB0505LB-R00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 9.9 CFM (0.277m鲁/min)
Static Pressure : 0.126 in H2O (31.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 24.0 dB(A)
Power (Watts) : 750mW
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UR, VDE
Weight : 0.071 lb (32.21g)
0
100 in stock

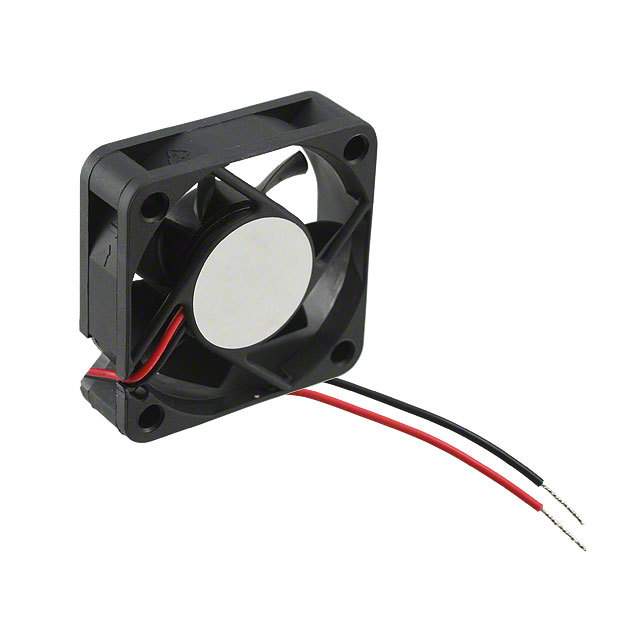

AFB0505MB AFB0505MB

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 12.4 CFM (0.347m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.10W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.071 lb (32.21g)
0
100 in stock

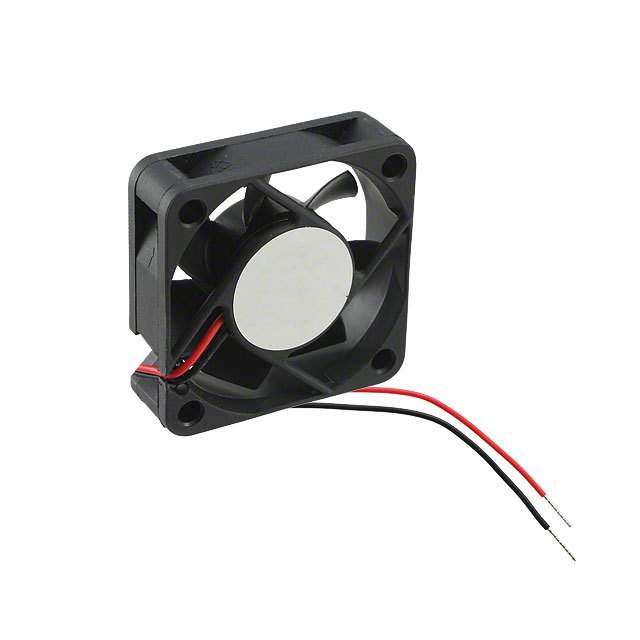

AFB0512HB AFB0512HB

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 1.20W
RPM : 5600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.07 lb (31.75g)
0
727 in stock

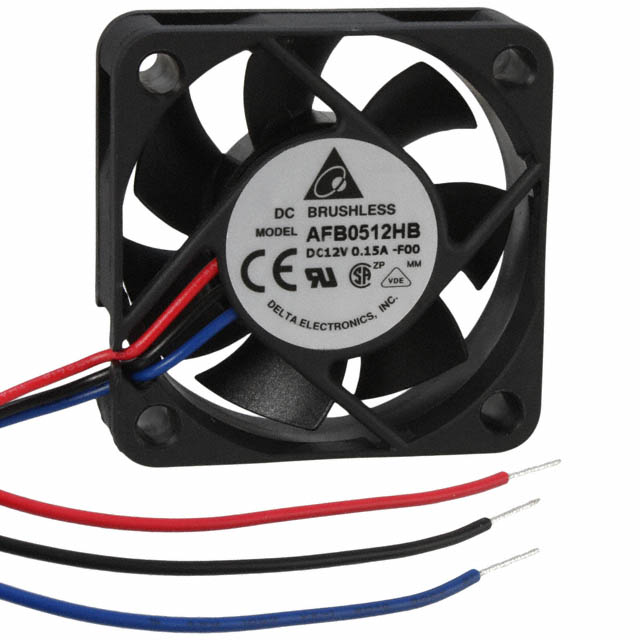

AFB0512HB-F00 AFB0512HB-F00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : 1.20W
RPM : 5600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.071 lb (32.21g)
0
102 in stock

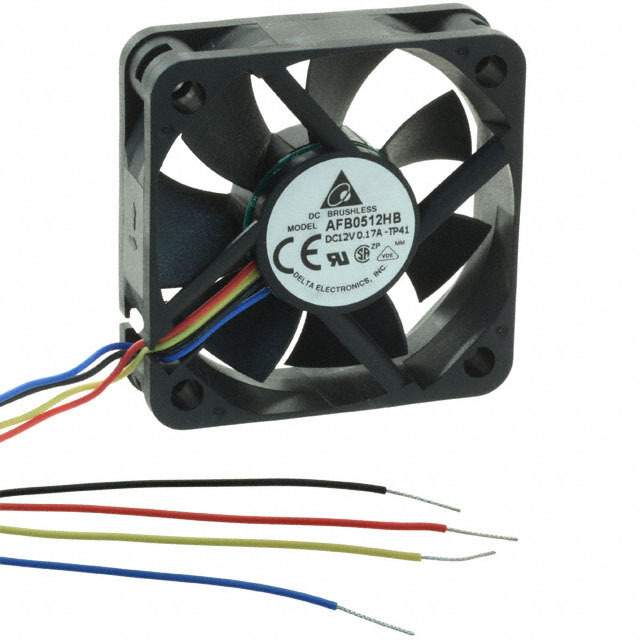

AFB0512HB-TP41 AFB0512HB-TP41

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 34.0 dB(A)
Power (Watts) : 1.44W
RPM : 6300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)
0
1810 in stock

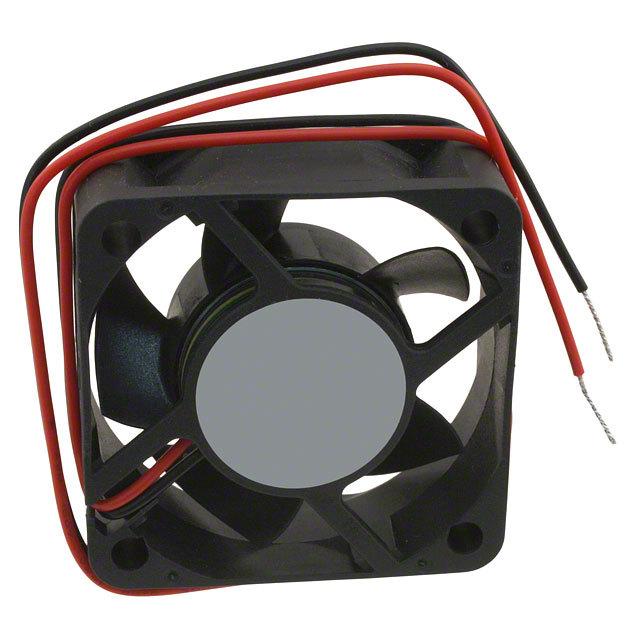

AFB0512HD AFB0512HD

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 15.8 CFM (0.442m鲁/min)
Static Pressure : 0.182 in H2O (45.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 1.20W
RPM : 5600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
272 in stock

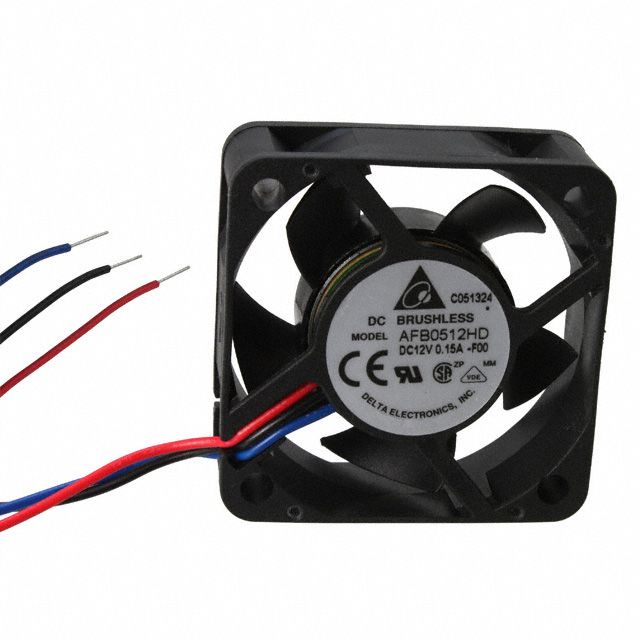

AFB0512HD-F00 AFB0512HD-F00

Delta Electronics
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 20.00mm
Air Flow : 15.8 CFM (0.442m鲁/min)
Static Pressure : 0.182 in H2O (45.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 33.0 dB(A)
Power (Watts) : 1.20W
RPM : 5600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.084 lb (38.1g)
0
113 in stock
