Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock

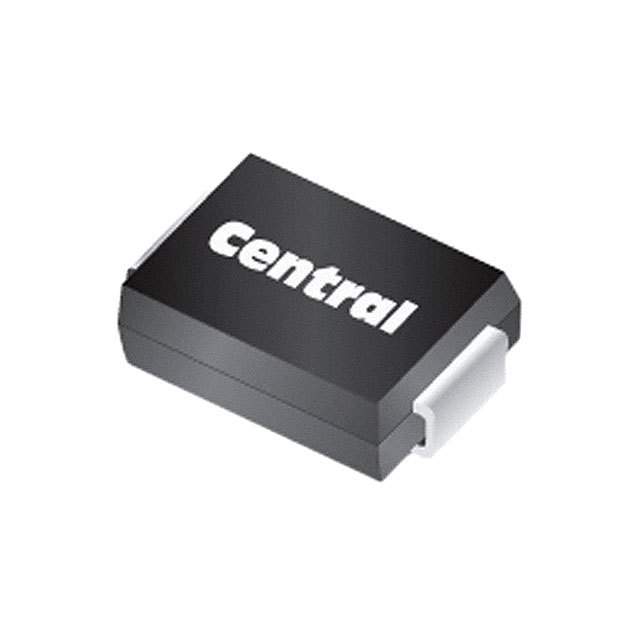

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 47.8V
Voltage - Breakdown (Min) : 53.2V
Voltage - Clamping (Max) @ Ipp : 77V
Current - Peak Pulse (10/1000µs) : 19.5A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2756 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5.8V
Voltage - Breakdown (Min) : 6.45V
Voltage - Clamping (Max) @ Ipp : 10.5V
Current - Peak Pulse (10/1000µs) : 143A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2578 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5.8V
Voltage - Breakdown (Min) : 6.45V
Voltage - Clamping (Max) @ Ipp : 10.5V
Current - Peak Pulse (10/1000µs) : 143A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2900 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 58.1V
Voltage - Breakdown (Min) : 64.6V
Voltage - Clamping (Max) @ Ipp : 92V
Current - Peak Pulse (10/1000µs) : 16.3A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2860 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 64.1V
Voltage - Breakdown (Min) : 71.3V
Voltage - Clamping (Max) @ Ipp : 103V
Current - Peak Pulse (10/1000µs) : 14.6A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
2980 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 70.1V
Voltage - Breakdown (Min) : 77.9V
Voltage - Clamping (Max) @ Ipp : 113V
Current - Peak Pulse (10/1000µs) : 13.3A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
0
100 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 10V
Tolerance : ±5%
Power - Max : 250mW
Impedance (Max) (Zzt) : 200 Ohms
Current - Reverse Leakage @ Vr : 1µA @ 7.6V
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 200mA
Operating Temperature : -65°C ~ 200°C
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
0
11383 in stock

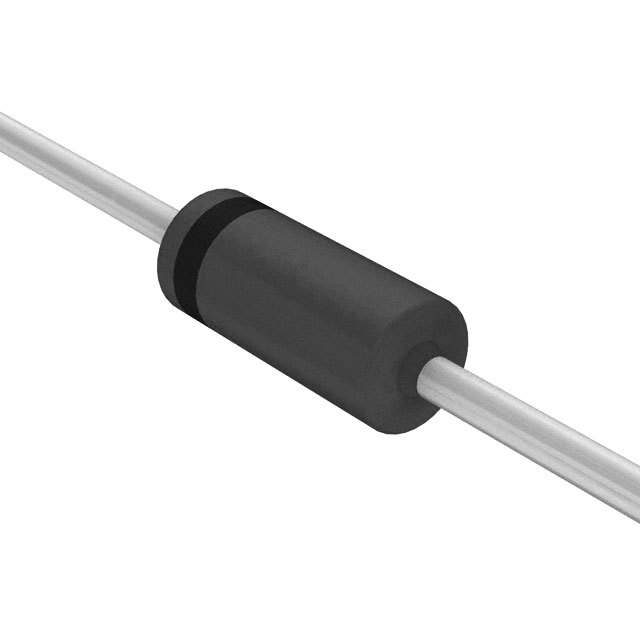

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 10mA
Speed : Small Signal =
4ns
25nA @ 20V
4pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35
-65°C ~ 200°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 25nA @ 20V
Capacitance @ Vr, F : 4pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
Operating Temperature - Junction : -65°C ~ 200°C
0
10000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 200mA
Speed : Small Signal =
6ns
100nA @ 50V
2.5pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35
-65°C ~ 200°C
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Capacitance @ Vr, F : 2.5pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
Operating Temperature - Junction : -65°C ~ 200°C
0
8572 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 10mA
Speed : Small Signal =
4ns
100nA @ 50V
2pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35
-65°C ~ 200°C
Reverse Recovery Time (trr) : 4ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
Operating Temperature - Junction : -65°C ~ 200°C
0
9330 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 4.7V
Tolerance : ±5%
Power - Max : 250mW
Impedance (Max) (Zzt) : 1550 Ohms
Current - Reverse Leakage @ Vr : 10µA @ 3V
Voltage - Forward (Vf) (Max) @ If : 1V @ 200mA
Operating Temperature : -65°C ~ 200°C
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
0
30000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 5.1V
Tolerance : ±5%
Power - Max : 250mW
Impedance (Max) (Zzt) : 1500 Ohms
Current - Reverse Leakage @ Vr : 10µA @ 3V
Voltage - Forward (Vf) (Max) @ If : 1V @ 200mA
Operating Temperature : -65°C ~ 200°C
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35
0
4383 in stock
