Cardinal Components

- Cardinal Components is a leading quartz crystal and oscillator manufacturer offering a broad range of frequency control products in standard through-hole and surface mount packages made of metal, plastic or ceramic materials. Specialities include TCXO, VCXO, and VCTCXO oscillators as well as standard clock oscillators, and quartz crystals with tight tolerances, wide temperature ranges, as well as standard specifications. Cardinal has introduced the world's first Field Instantly Programmable Oscillator called FIPO. The company is ISO-9002 certified.

Part Number
Manufacturer
Description
Unit Price
In Stock

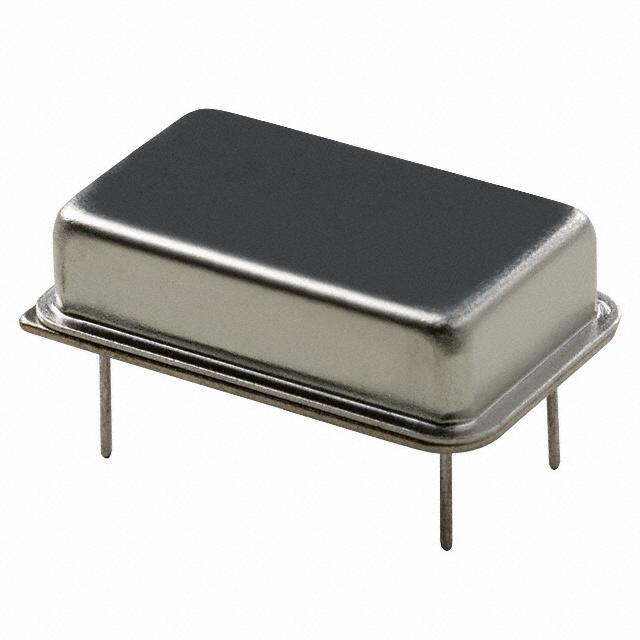

CPPT1-LT7PP CPPT1-LT7PP

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 100MHz
Function : Standby
Output : TTL
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 25mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension : 0.819" L x 0.520" W (20.80mm x 13.20mm)
Height : 0.200" (5.08mm)
0
100 in stock

CPPT1-LT7PT CPPT1-LT7PT

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 100MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 25mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension : 0.819" L x 0.520" W (20.80mm x 13.20mm)
Height : 0.200" (5.08mm)
0
100 in stock

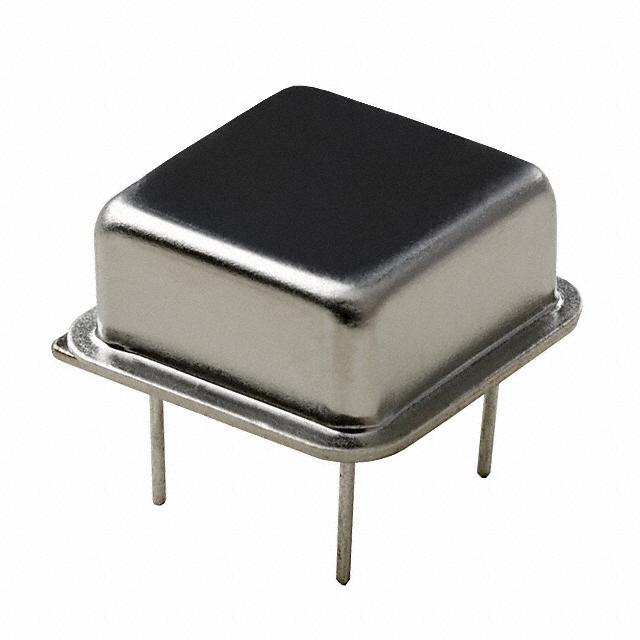

CPPT4-HT06P CPPT4-HT06P

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : 0°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT06T CPPT4-HT06T

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : 0°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT0PP CPPT4-HT0PP

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : 0°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT0PT CPPT4-HT0PT

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : 0°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT0RP CPPT4-HT0RP

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±25ppm
Frequency Stability (Total) : -
Operating Temperature : 0°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT0RT CPPT4-HT0RT

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±25ppm
Frequency Stability (Total) : -
Operating Temperature : 0°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT56P CPPT4-HT56P

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT56T CPPT4-HT56T

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT5PP CPPT4-HT5PP

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock

CPPT4-HT5PT CPPT4-HT5PT

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension : 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height : 0.220" (5.60mm)
0
100 in stock
