Caddock Electronics, Inc.
- Our business focus at Caddock Electronics, Inc. is to develop and manage unique material and process technologies with a commitment to the conservative producibility of high performance, high quality resistor products which provide technical solutions for our customers.
Caddock’s High Performance Film Resistors offer high levels of stability and reliability through extreme operating conditions and harsh environments.
Part Number
Manufacturer
Description
Unit Price
In Stock

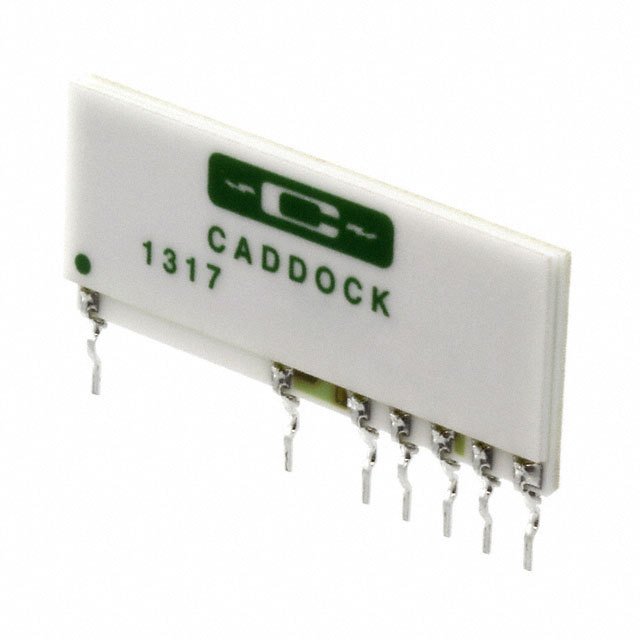

Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : 1776
Part Status : Active
Circuit Type : Decade Resistor
Resistance (Ohms) : 1k, 10k, 101k, 1M, 10M
Tolerance : ±0.1%
Number of Resistors : 5
Resistor Matching Ratio : ±0.1%
Resistor-Ratio-Drift : ±10 ppm/°C
Number of Pins : 7
Power Per Element : 62.5mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 12-SIP, 7 Leads
Supplier Device Package : -
Size / Dimension : 1.200" L x 0.110" W (30.48mm x 2.79mm)
Height - Seated (Max) : 0.550" (13.97mm)
0
32 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : 1776
Part Status : Active
Circuit Type : Decade Resistor
Resistance (Ohms) : 1k, 10k, 101k, 1M, 10M
Tolerance : ±0.1%
Number of Resistors : 5
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±10 ppm/°C
Number of Pins : 7
Power Per Element : 62.5mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 12-SIP, 7 Leads
Supplier Device Package : -
Size / Dimension : 1.200" L x 0.110" W (30.48mm x 2.79mm)
Height - Seated (Max) : 0.550" (13.97mm)
0
3 in stock

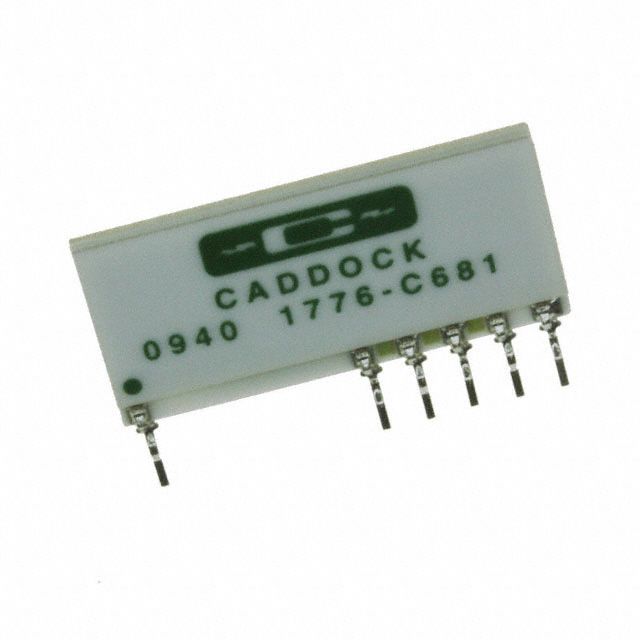

Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : 1776
Part Status : Active
Circuit Type : Decade Resistor
Resistance (Ohms) : 1k, 9k, 90k, 900k, 9M
Tolerance : ±0.1%
Number of Resistors : 5
Resistor Matching Ratio : ±0.1%
Resistor-Ratio-Drift : ±10 ppm/°C
Number of Pins : 6
Power Per Element : 62.5mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 10-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.000" L x 0.110" W (25.40mm x 2.79mm)
Height - Seated (Max) : 0.550" (13.97mm)
0
847 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : 1776
Part Status : Active
Circuit Type : Decade Resistor
Resistance (Ohms) : 1k, 9k, 90k, 900k, 9M
Tolerance : ±0.1%
Number of Resistors : 5
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±10 ppm/°C
Number of Pins : 6
Power Per Element : 62.5mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 10-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.000" L x 0.110" W (25.40mm x 2.79mm)
Height - Seated (Max) : 0.550" (13.97mm)
0
445 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : 1776
Part Status : Active
Circuit Type : Decade Resistor
Resistance (Ohms) : 1k, 9k, 90k, 900k, 9M
Tolerance : ±0.1%
Number of Resistors : 5
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±5 ppm/°C
Number of Pins : 6
Power Per Element : 62.5mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 10-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.000" L x 0.110" W (25.40mm x 2.79mm)
Height - Seated (Max) : 0.550" (13.97mm)
0
479 in stock

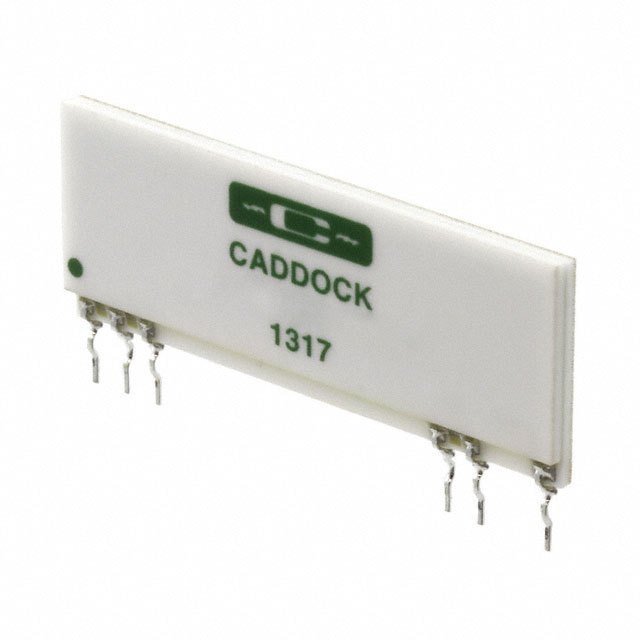

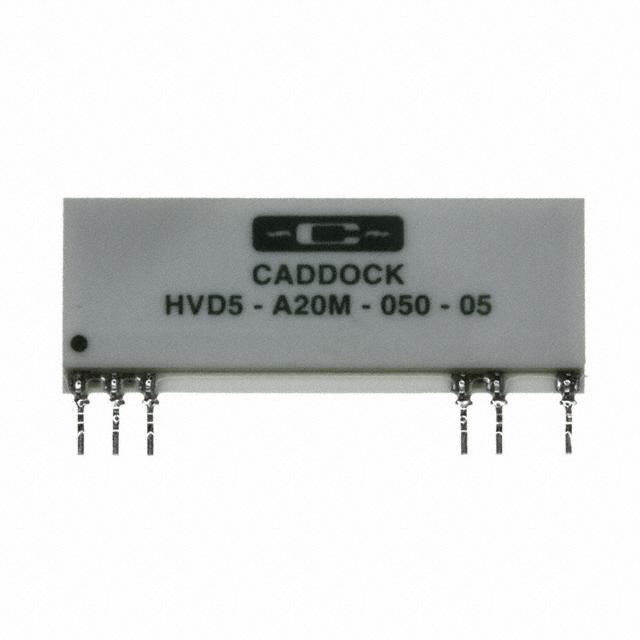

Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : HVD
Part Status : Active
Circuit Type : Voltage Divider
Resistance (Ohms) : 10k, 9.99M
Tolerance : ±0.05%
Number of Resistors : 2
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±5 ppm/°C
Number of Pins : 6
Power Per Element : 31mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 15-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.500" L x 0.110" W (38.10mm x 2.79mm)
Height - Seated (Max) : 0.610" (15.50mm)
0
109 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : HVD
Part Status : Active
Circuit Type : Voltage Divider
Resistance (Ohms) : 20k, 19.98M
Tolerance : ±0.05%
Number of Resistors : 2
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±5 ppm/°C
Number of Pins : 6
Power Per Element : 31mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 15-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.500" L x 0.110" W (38.10mm x 2.79mm)
Height - Seated (Max) : 0.610" (15.50mm)
0
42 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : HVD
Part Status : Active
Circuit Type : Voltage Divider
Resistance (Ohms) : 100k, 9.9M
Tolerance : ±0.05%
Number of Resistors : 2
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±5 ppm/°C
Number of Pins : 6
Power Per Element : 31mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 15-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.500" L x 0.110" W (38.10mm x 2.79mm)
Height - Seated (Max) : 0.610" (15.50mm)
0
100 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Bulk
Series : HVD
Part Status : Active
Circuit Type : Voltage Divider
Resistance (Ohms) : 200k, 19.8M
Tolerance : ±0.05%
Number of Resistors : 2
Resistor Matching Ratio : ±0.05%
Resistor-Ratio-Drift : ±5 ppm/°C
Number of Pins : 6
Power Per Element : 31mW
Temperature Coefficient : ±30ppm/°C
Operating Temperature : -40°C ~ 85°C
Applications : Voltage Divider (TCR Matched)
Mounting Type : Through Hole
Package / Case : 15-SIP, 6 Leads
Supplier Device Package : -
Size / Dimension : 1.500" L x 0.110" W (38.10mm x 2.79mm)
Height - Seated (Max) : 0.610" (15.50mm)
0
91 in stock

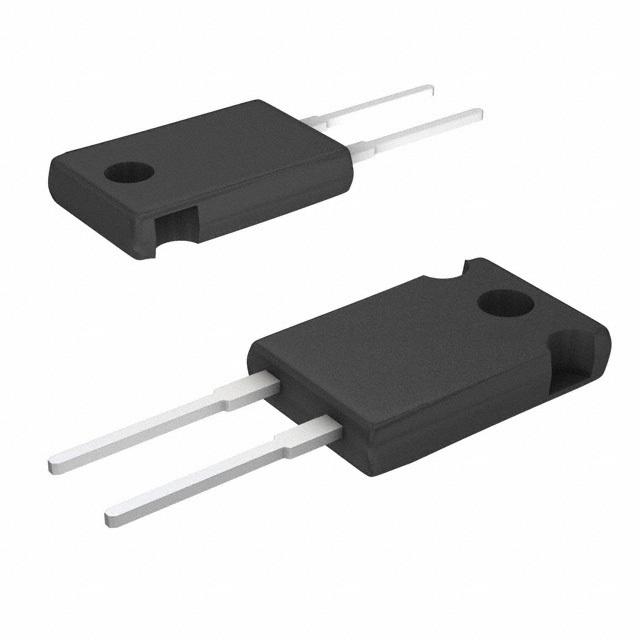

Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Tube
Series : Kool-Pak®MP2060
Part Status : Active
Resistance : 5 mOhms
Tolerance : ±5%
Power (Watts) : 18W
Composition : Thick Film
Features : Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding
Temperature Coefficient : 0/ +300ppm/°C
Operating Temperature : -55°C ~ 150°C
Package / Case : TO-220-2
Supplier Device Package : TO-220
Size / Dimension : 0.410" L x 0.175" W (10.41mm x 4.45mm)
Height - Seated (Max) : 0.650" (16.52mm)
Number of Terminations : 2
Failure Rate : -
0
356 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Tube
Series : Kool-Pak®MP2060
Part Status : Active
Resistance : 10 mOhms
Tolerance : ±2%
Power (Watts) : 36W
Composition : Thick Film
Features : Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding
Temperature Coefficient : 0/ +300ppm/°C
Operating Temperature : -55°C ~ 150°C
Package / Case : TO-220-2
Supplier Device Package : TO-220
Size / Dimension : 0.410" L x 0.175" W (10.41mm x 4.45mm)
Height - Seated (Max) : 0.650" (16.52mm)
Number of Terminations : 2
Failure Rate : -
0
534 in stock
Caddock Electronics, Inc.
Manufacturer : Caddock Electronics Inc.
Packaging : Tube
Series : Kool-Pak®MP2060
Part Status : Active
Resistance : 20 mOhms
Tolerance : ±1%
Power (Watts) : 60W
Composition : Thick Film
Features : Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding
Temperature Coefficient : 0/ +200ppm/°C
Operating Temperature : -55°C ~ 150°C
Package / Case : TO-220-2
Supplier Device Package : TO-220
Size / Dimension : 0.410" L x 0.175" W (10.41mm x 4.45mm)
Height - Seated (Max) : 0.650" (16.52mm)
Number of Terminations : 2
Failure Rate : -
0
906 in stock
