ASSMANN WSW Components
- The qualified partner for manufacturing, procurement and marketing of connectors, individual solutions and customer designed cable assemblies.
Company Development Since 1969
Today - founded in 1969 - ASSMANN WSW Components has grown into a world-wide operating specialist of electro-mechanical components, thermal management products and computer network accessories.
Service To Our Customers
ASSMANN WSW Components is one of the most important enterprise of Logistics-services for the Electronics industry and for the specialized trade distribution. ASSMANN's professionalism covers it competent development and manufacturing as well. This includes its own global network for purchasing and trading and is the basic for its logistics Management of high performance.
Continuous Quality Control
All our products have meet the ASSMANN Quality Test. ASSMANN WSW Components is certified under DIN EN ISO 9001:2000. In 2003 ASSMANN WSW Components put into action an environmental management system in accordance to DIN EN ISO 14001. We do business only with certified contractors.
Part Number
Manufacturer
Description
Unit Price
In Stock

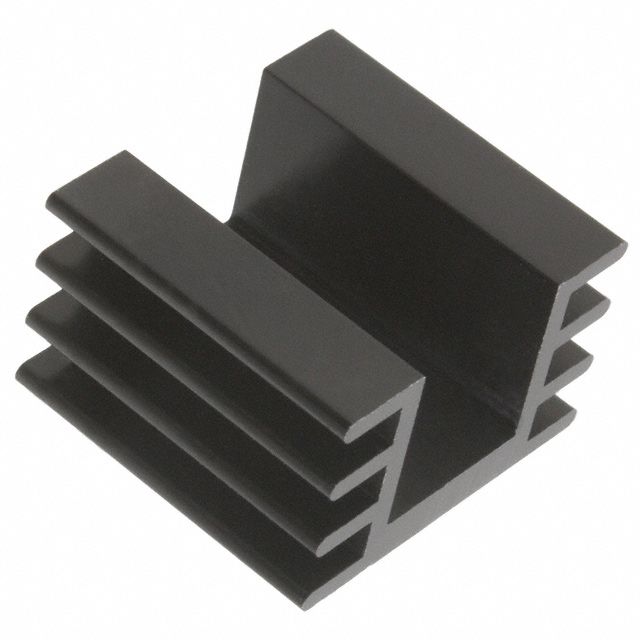

ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.181" (30.00mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.787" (19.99mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3418 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.984" (25.00mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.787" (19.99mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 10.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1107 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.787" (19.99mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
418 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 2.126" (54.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.886" (22.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
117 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.181" (30.00mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
282 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.984" (25.00mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 12.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1512 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 10.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1711 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.969" (50.00mm)
Width : 1.260" (32.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1972 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.712" (18.08mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.311" (7.90mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 25.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1385 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.712" (18.08mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 21.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and Board Mounts
Shape : Rectangular, Fins
Length : 1.189" (30.20mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.315" (8.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1915 in stock
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.189" (30.20mm)
Width : 1.000" (25.40mm)
Diameter : -
Height Off Base (Height of Fin) : 0.311" (7.90mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
480 in stock
