Amgis

- Amgis is a manufacturer/importer of high frequency inductive components and AC/DC power supplies. We import and export components daily through our purchasing and sales networking systems, including India, Asia, Europe, and the United States. The majority of our standard components are manufactured at our ISO9001 certified facility located in Salem, India. Our strength is in our service, having qualified engineers at all of our locations, and exceptional customer service teams, we can qualify most requirements and have answers to requests within hours instead of days.

Amgis was originally a subsidiary of the Talema Group and carries all the Talema high frequency component lines, including power inductors, common mode chokes, current sensors, telecom products, and networking products. Also, we have diversified into the switching power supply market, including standard lines and custom designs, both open style and enclosed. By drawing upon the resources of our extensive worldwide network, Amgis provides its customers with high quality components at very competitive prices.


Part Number

Manufacturer

Description

Unit Price

In Stock

SH50C-3.0-47

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 47µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.650" L x 0.449" W (16.50mm x 11.40mm)
Height - Seated (Max) : 0.760" (19.30mm)

15273 in stock

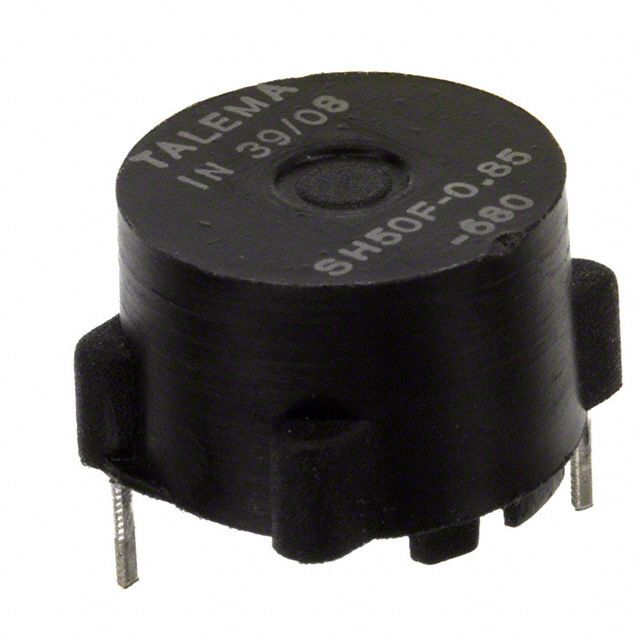

SH50F-0.85-680

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 680µH
Tolerance : ±20%
Current Rating : 850mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.689" L x 0.669" W (17.50mm x 17.00mm)
Height - Seated (Max) : 0.492" (12.50mm)

199 in stock

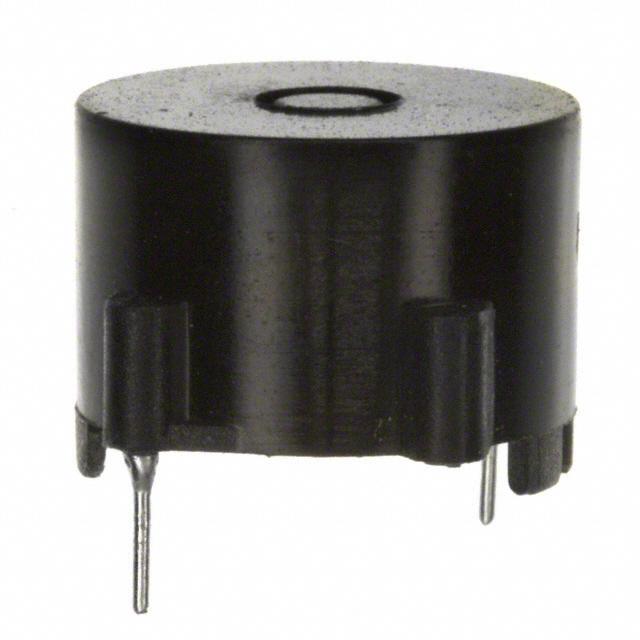

SH50F-0.9-330

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 330µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 740 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.689" L x 0.669" W (17.50mm x 17.00mm)
Height - Seated (Max) : 0.492" (12.50mm)

911 in stock

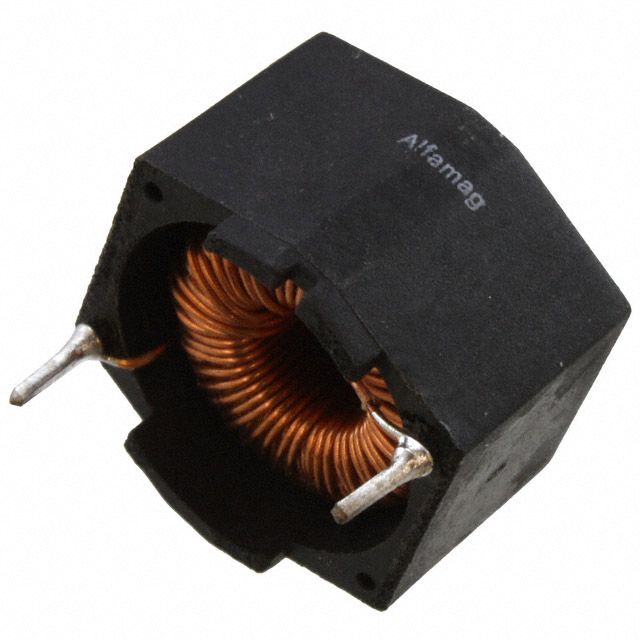

SH50F-1.4-220

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 220µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 380 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.689" L x 0.669" W (17.50mm x 17.00mm)
Height - Seated (Max) : 0.492" (12.50mm)

801 in stock

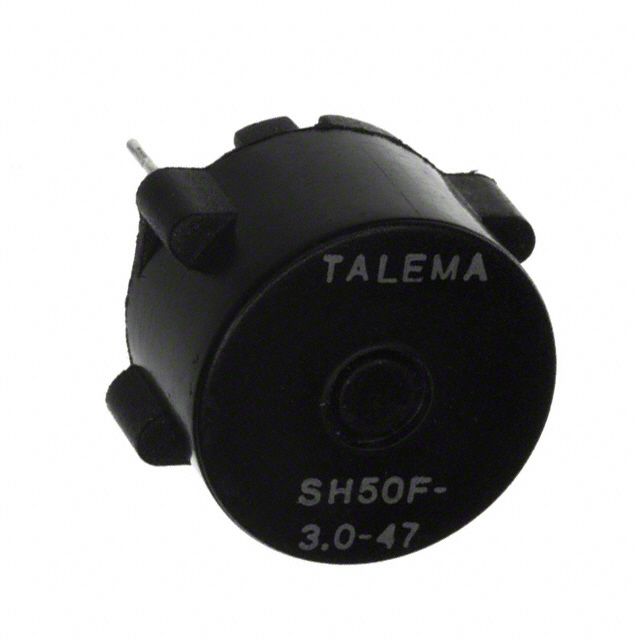

SH50F-3.0-47

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 47µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.689" L x 0.669" W (17.50mm x 17.00mm)
Height - Seated (Max) : 0.492" (12.50mm)

815 in stock

SH50S-0.85-680

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 680µH
Tolerance : ±20%
Current Rating : 850mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.25 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.701" L x 0.669" W (17.80mm x 17.00mm)
Height - Seated (Max) : 0.451" (11.45mm)

2002 in stock

SH50S-0.9-330

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 330µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 740 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.701" L x 0.669" W (17.80mm x 17.00mm)
Height - Seated (Max) : 0.451" (11.45mm)

1696 in stock

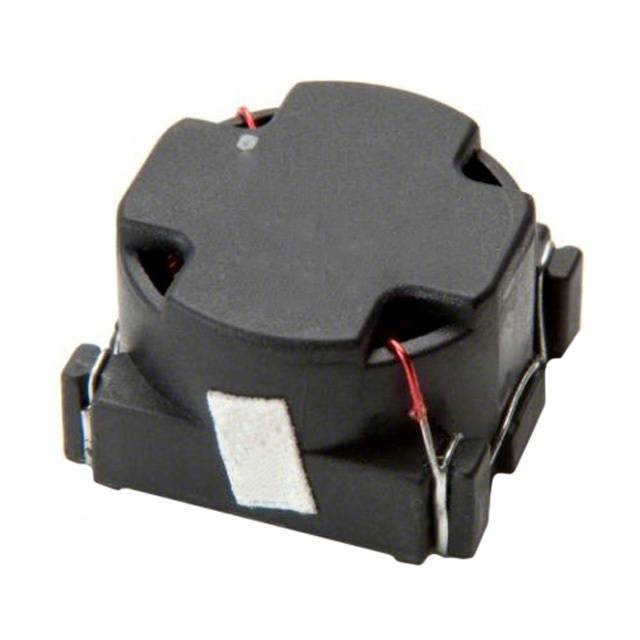

SH50S-1.4-176

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 176µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.957" L x 0.925" W (24.30mm x 23.50mm)
Height - Seated (Max) : 0.411" (10.45mm)

198 in stock

SH50S-1.4-220

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 220µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 380 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.701" L x 0.669" W (17.80mm x 17.00mm)
Height - Seated (Max) : 0.451" (11.45mm)

100 in stock

SH50S-2.0-150

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 150µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.957" L x 0.925" W (24.30mm x 23.50mm)
Height - Seated (Max) : 0.411" (10.45mm)

1726 in stock

SH50S-3.0-47

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 47µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.701" L x 0.669" W (17.80mm x 17.00mm)
Height - Seated (Max) : 0.451" (11.45mm)

683 in stock

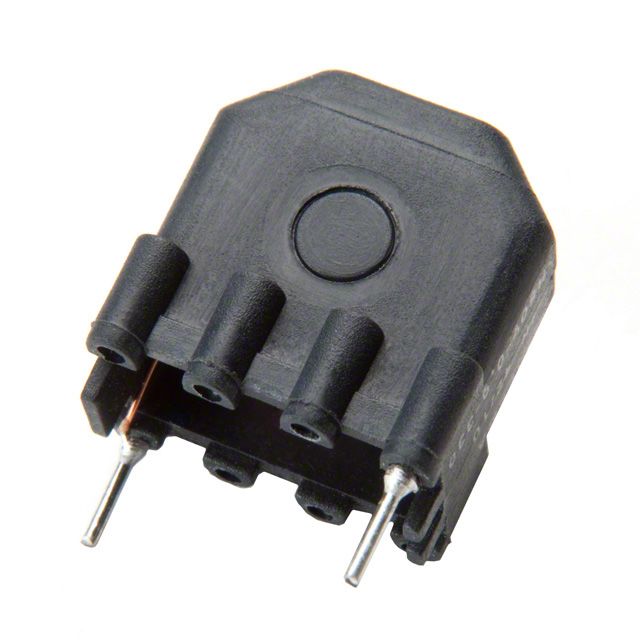

SH50V-0.9-330

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Tray
Series : SH50
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 330µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 740 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max) : 0.709" (18.00mm)

310 in stock
