Ametherm
- Ametherm is a leading manufacturer of Power Thermistors. Ametherm offers the highest rated steady state current rating as well as highest rated energy handling capability offered in the market. Their excellent long-term stability and rugged structure makes them ideally suited for limiting Inrush current in the motors (1/3 HP to 3.0 HP range), medical (Power supplies, MRI), Security systems (X-Ray machines), transformers (up to 8.0 KVA), telecom (Power supplies up to 4000 watt out put power) and motor drives, in the most cost effective method.
Part Number
Manufacturer
Description
Unit Price
In Stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 5 Ohms
Tolerance : ±25%
Current - Steady State Max : 20A
R @ Current : 25 mOhms
Diameter : 1.18" (30mm)
Lead Spacing : 0.673" (17.10mm)
Approvals : UL
0
1544 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 500 mOhms
Tolerance : ±25%
Current - Steady State Max : 50A
R @ Current : 8 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
110 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 10 Ohms
Tolerance : ±25%
Current - Steady State Max : 18A
R @ Current : 46 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
1156 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 1 Ohms
Tolerance : ±25%
Current - Steady State Max : 40A
R @ Current : 8 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
41 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 20 Ohms
Tolerance : ±25%
Current - Steady State Max : 10A
R @ Current : 150 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
164 in stock

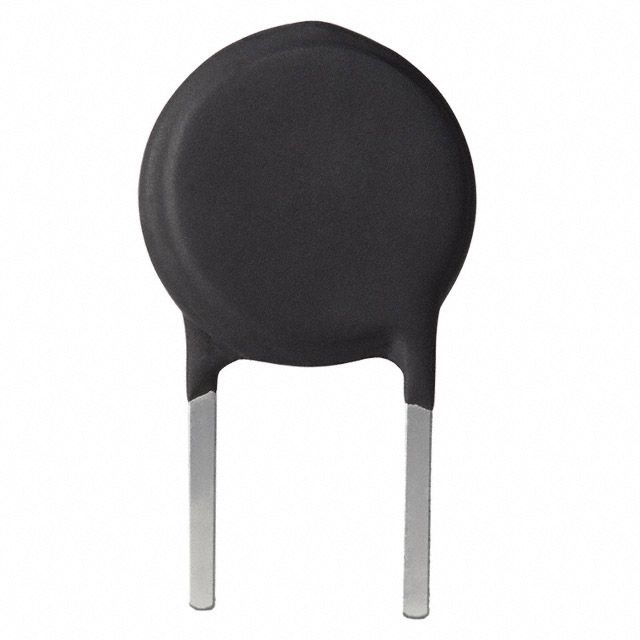

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 2 Ohms
Tolerance : ±25%
Current - Steady State Max : 35A
R @ Current : 12 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
358 in stock

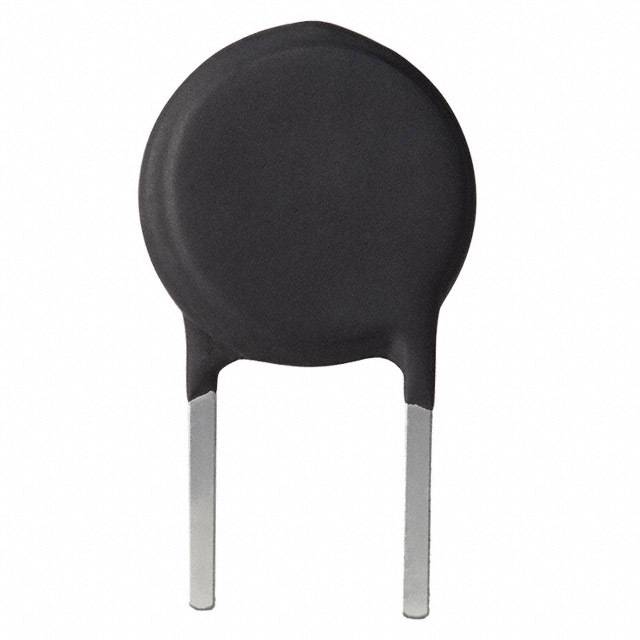

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 3 Ohms
Tolerance : ±25%
Current - Steady State Max : 30A
R @ Current : 20 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
21 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : AS
Part Status : Active
R @ 25°C : 5 Ohms
Tolerance : ±25%
Current - Steady State Max : 25A
R @ Current : 25 mOhms
Diameter : 1.417" (36.00mm)
Lead Spacing : 0.748" (19.00mm)
Approvals : -
0
1122 in stock

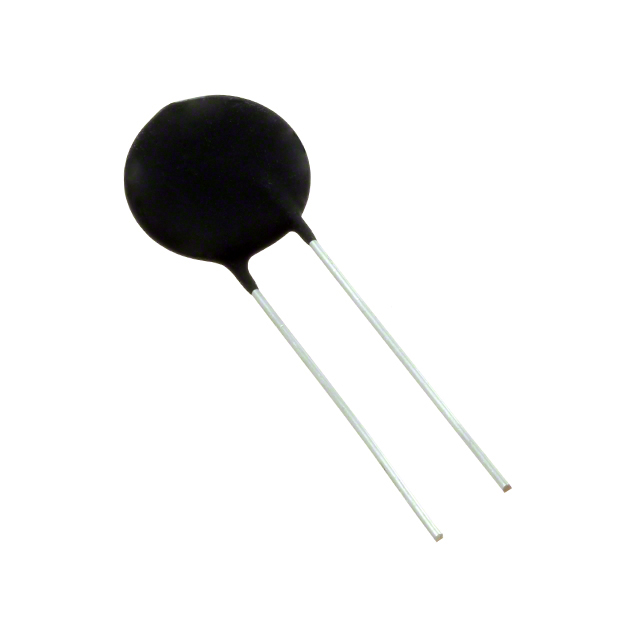

Ametherm
Manufacturer : Ametherm
Packaging : -
Series : -
Part Status : Active
Type : -
Voltage - Max : 480V
Current - Max : -
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 25 Ohms
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.866" Dia x 0.236" T (22.00mm x 6.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.307" (7.80mm)
0
961 in stock
Ametherm
Manufacturer : Ametherm
Packaging : -
Series : -
Part Status : Active
Type : -
Voltage - Max : 350V
Current - Max : -
Current - Hold (Ih) (Max) : 850mA
Current - Trip (It) : 1.6A
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 7 Ohms
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.827" Dia x 0.236" T (21.00mm x 6.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.307" (7.80mm)
0
994 in stock

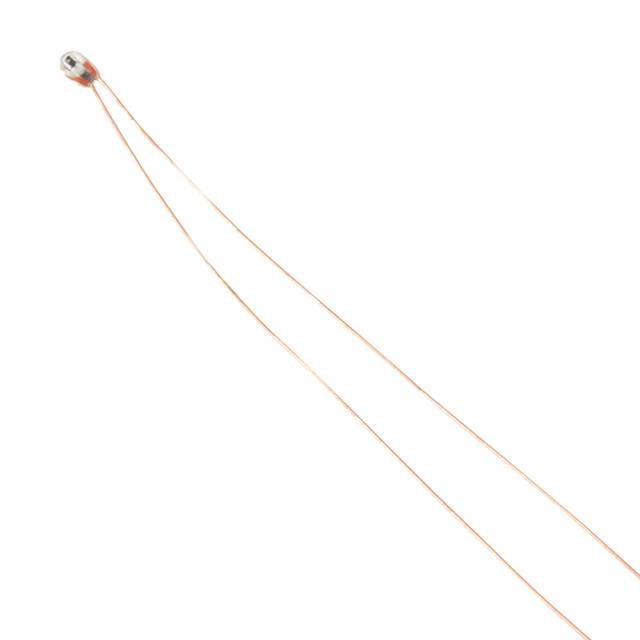

Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : *
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±2%
B Value Tolerance : ±3%
B0/50 : 3435K
B25/50 : 3475K
B25/75 : 3501K
B25/85 : 3511K
B25/100 : 3522K
Operating Temperature : -55°C ~ 300°C
Power - Max : 30mW
Length - Lead Wire : 2.56" (65.00mm)
Mounting Type : Through Hole
Package / Case : Bead, Glass
0
303 in stock
Ametherm
Manufacturer : Ametherm
Packaging : Bulk
Series : *
Part Status : Active
Resistance in Ohms @ 25°C : 10k
Resistance Tolerance : ±2%
B Value Tolerance : ±3%
B0/50 : 3892K
B25/50 : 3934K
B25/75 : 3960K
B25/85 : 3988K
B25/100 : 3999K
Operating Temperature : -55°C ~ 300°C
Power - Max : 30mW
Length - Lead Wire : 2.56" (65.00mm)
Mounting Type : Through Hole
Package / Case : Bead, Glass
0
52 in stock
