Alliance Sensors Group

- Alliance Sensors Group, a division of H. G. Schaevitz LLC, offers linear and rotary position sensors for many different industrial measurement applications. They focus on OEMs, industrial automation, power generation, military/ aerospace, test labs, and special manufacturing processes. Their standard product line features LVIT linear position sensors, along with LVDTs, rotary sensors, and sensor support electronics. In addition to their standard products, they can design and build custom position sensors to meet customer specifications.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of GHSE-19-006-A-02-10-S

GHSE-19-006-A-02-10-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 6.35mm (0 ~ 0.25")
Output : 0 V ~ 10 V
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : 0 V ~ 10 V
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock

Picture of GHSE-19-013-A-02-10-S

GHSE-19-013-A-02-10-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 12.70mm (0 ~ 0.50")
Output : 0 V ~ 10 V
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : 0 V ~ 10 V
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

8 in stock

Picture of GHSE-19-025-A-02-10-S

GHSE-19-025-A-02-10-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 25.40mm (0 ~ 1.00")
Output : 0 V ~ 10 V
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : 0 V ~ 10 V
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock

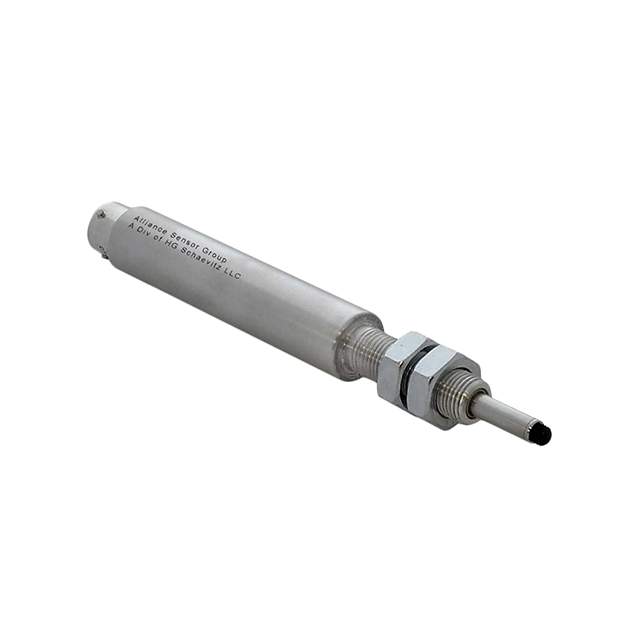

Picture of GHSE-19-050-A-02-10-S

GHSE-19-050-A-02-10-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 50.80mm (0 ~ 2.00")
Output : 0 V ~ 10 V
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : 0 V ~ 10 V
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock

Picture of GHSE-19-075-A-02-10-S

GHSE-19-075-A-02-10-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 76.20mm (0 ~ 3.00")
Output : 0 V ~ 10 V
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : 0 V ~ 10 V
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

3 in stock

Picture of GHSE-19-100-A-02-10-S

GHSE-19-100-A-02-10-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 101.60mm (0 ~ 4.00")
Output : 0 V ~ 10 V
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : 0 V ~ 10 V
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

3 in stock

Picture of GHSI-19-006-A-02-20-S

GHSI-19-006-A-02-20-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 6.35mm (0 ~ 0.25")
Output : 4mA ~ 20mA
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : -
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock

Picture of GHSI-19-013-A-02-20-S

GHSI-19-013-A-02-20-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 12.70mm (0 ~ 0.50")
Output : 4mA ~ 20mA
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : -
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock

Picture of GHSI-19-025-A-02-20-S

GHSI-19-025-A-02-20-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 25.40mm (0 ~ 1.00")
Output : 4mA ~ 20mA
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : -
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

3 in stock

Picture of GHSI-19-050-A-02-20-S

GHSI-19-050-A-02-20-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 50.80mm (0 ~ 2.00")
Output : 4mA ~ 20mA
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : -
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock

Picture of GHSI-19-075-A-02-20-S

GHSI-19-075-A-02-20-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 76.20mm (0 ~ 3.00")
Output : 4mA ~ 20mA
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : -
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

3 in stock

Picture of GHSI-19-100-A-02-20-S

GHSI-19-100-A-02-20-S

Alliance Sensors Group a div of HG Schaevitz LLC

Manufacturer : Alliance Sensors Group
Packaging : Tube
Series : GHS-19
Part Status : Active
For Measuring : Linear Position
Technology : LVIT (Linear Variable Inductance Transducer)
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 101.60mm (0 ~ 4.00")
Output : 4mA ~ 20mA
Output Signal : -
Actuator Type : Round Shaft
Linearity : ±0.15%
Resistance : -
Resistance Tolerance : -
Voltage - Supply : -
Mounting Type : Chassis Mount
Termination Style : Connector
Operating Temperature : -20°C ~ 85°C
Package / Case : Cylinder
Supplier Device Package : -

0

5 in stock
