Part Number
Manufacturer
Description
Unit Price
In Stock

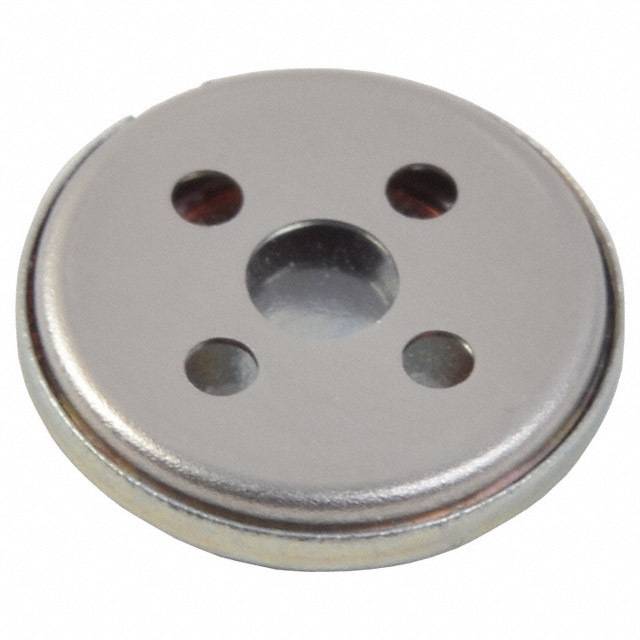

CDM-10008
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 960Hz ~ 20kHz
Frequency Range : 960Hz ~ 20kHz
Frequency - Self Resonant : 1200Hz
Impedance : 8 Ohms
Efficiency - dBA : 86.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.114" (2.90mm)
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 960Hz ~ 20kHz
Frequency Range : 960Hz ~ 20kHz
Frequency - Self Resonant : 1200Hz
Impedance : 8 Ohms
Efficiency - dBA : 86.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.114" (2.90mm)
0
6850 in stock

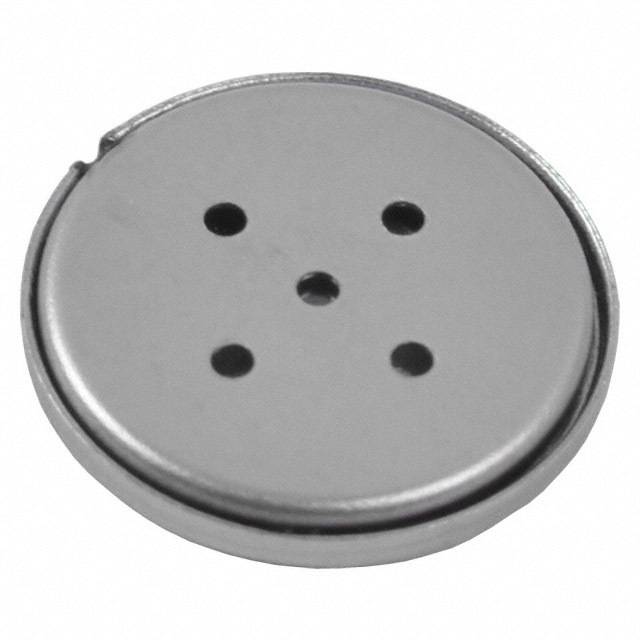

CDM-12008
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 800Hz ~ 20kHz
Frequency Range : 800Hz ~ 20kHz
Frequency - Self Resonant : 1000Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 500mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 500mW
Power - Max : 600mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 800Hz ~ 20kHz
Frequency Range : 800Hz ~ 20kHz
Frequency - Self Resonant : 1000Hz
Impedance : 8 Ohms
Efficiency - dBA : 90.00
Efficiency - Testing : 500mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 500mW
Power - Max : 600mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
2651 in stock

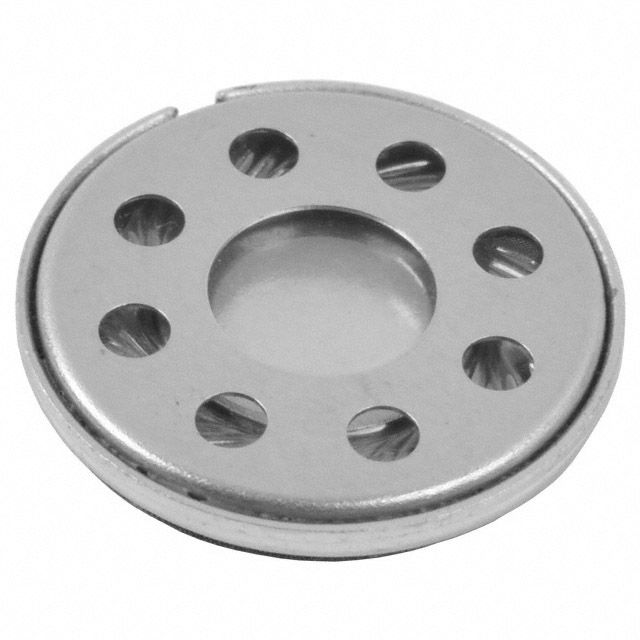

CDM-16008
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 640Hz ~ 20kHz
Frequency Range : 640Hz ~ 20kHz
Frequency - Self Resonant : 800Hz
Impedance : 8 Ohms
Efficiency - dBA : 93.00
Efficiency - Testing : 400mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 400mW
Power - Max : 600mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.126" (3.20mm)
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 640Hz ~ 20kHz
Frequency Range : 640Hz ~ 20kHz
Frequency - Self Resonant : 800Hz
Impedance : 8 Ohms
Efficiency - dBA : 93.00
Efficiency - Testing : 400mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 400mW
Power - Max : 600mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
1866 in stock
CDM-20008
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 448Hz ~ 7kHz
Frequency Range : 448Hz ~ 7kHz
Frequency - Self Resonant : 560Hz
Impedance : 8 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.787" Dia (20.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
Packaging : Tray
Series : CDM
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 448Hz ~ 7kHz
Frequency Range : 448Hz ~ 7kHz
Frequency - Self Resonant : 560Hz
Impedance : 8 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.787" Dia (20.00mm)
Height - Seated (Max) : 0.122" (3.10mm)
0
23506 in stock

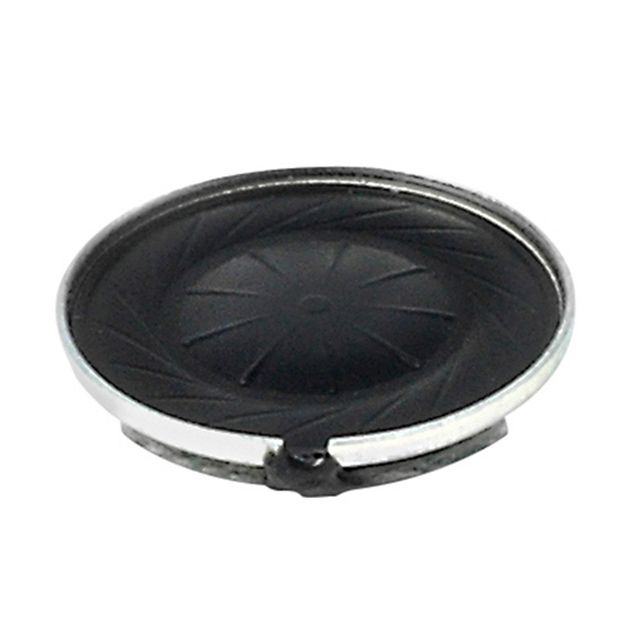

CDMG15008-03A
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDMG
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 900Hz ~ 20kHz
Frequency Range : 900Hz ~ 20kHz
Frequency - Self Resonant : 900Hz
Impedance : 8 Ohms
Efficiency - dBA : 88.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.591" Dia (15.00mm)
Height - Seated (Max) : 0.110" (2.80mm)
Packaging : Tray
Series : CDMG
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 900Hz ~ 20kHz
Frequency Range : 900Hz ~ 20kHz
Frequency - Self Resonant : 900Hz
Impedance : 8 Ohms
Efficiency - dBA : 88.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Round
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.591" Dia (15.00mm)
Height - Seated (Max) : 0.110" (2.80mm)
0
8238 in stock

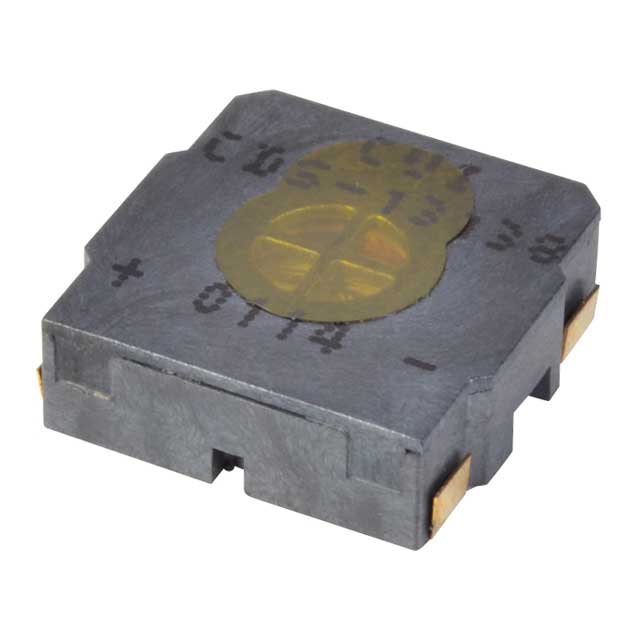

CDS-13138-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 840Hz ~ 20kHz
Frequency Range : 840Hz ~ 20kHz
Frequency - Self Resonant : 1050Hz
Impedance : 8 Ohms
Efficiency - dBA : 70.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 700mW
Power - Max : 1W
Port Location : Top
Shape : Square
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Sm2Co17
Ingress Protection : -
Ratings : Washable
Termination : Solder Pads
Size / Dimension : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 840Hz ~ 20kHz
Frequency Range : 840Hz ~ 20kHz
Frequency - Self Resonant : 1050Hz
Impedance : 8 Ohms
Efficiency - dBA : 70.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 700mW
Power - Max : 1W
Port Location : Top
Shape : Square
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Sm2Co17
Ingress Protection : -
Ratings : Washable
Termination : Solder Pads
Size / Dimension : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
7444 in stock

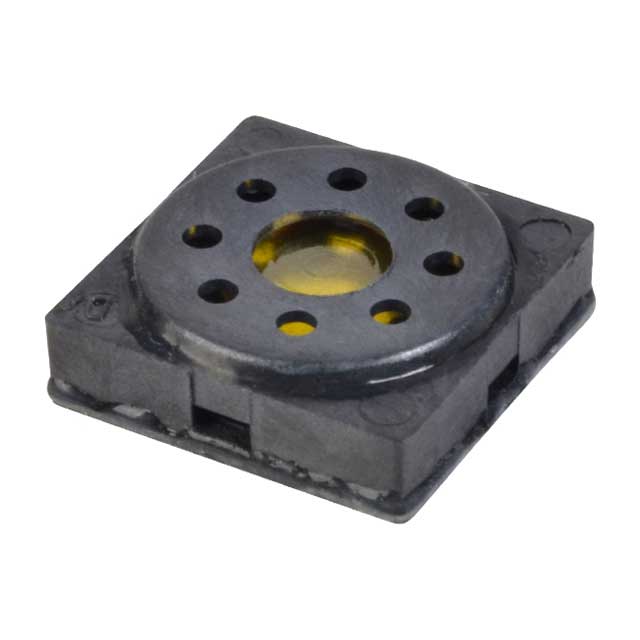

CDS-15158-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 680Hz ~ 20kHz
Frequency Range : 680Hz ~ 20kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 87.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Square
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Sm2Co17
Ingress Protection : -
Ratings : Washable
Termination : Solder Pads
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 680Hz ~ 20kHz
Frequency Range : 680Hz ~ 20kHz
Frequency - Self Resonant : 850Hz
Impedance : 8 Ohms
Efficiency - dBA : 87.00
Efficiency - Testing : 300mW/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 300mW
Power - Max : 500mW
Port Location : Top
Shape : Square
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Sm2Co17
Ingress Protection : -
Ratings : Washable
Termination : Solder Pads
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1580 in stock

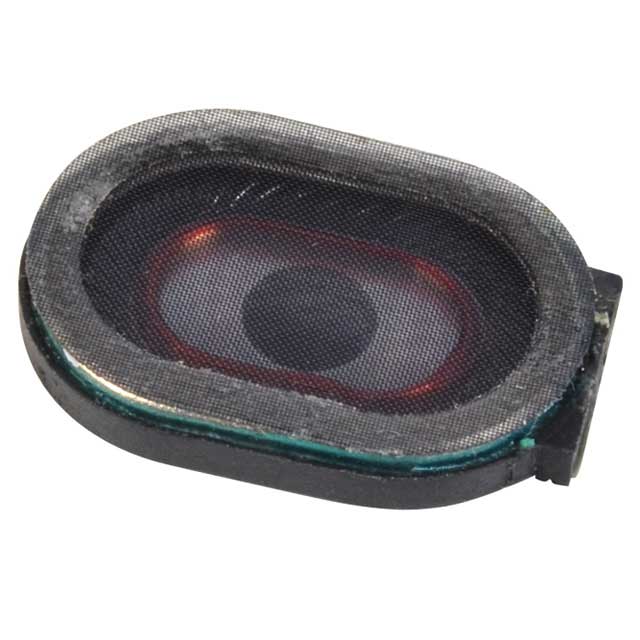

CDS-20144
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 480Hz ~ 20kHz
Frequency Range : 480Hz ~ 20kHz
Frequency - Self Resonant : 600Hz
Impedance : 4 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 1W/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 1.2W
Port Location : Top
Shape : Oval
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.787" L x 0.551" W (20.00mm x 14.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 480Hz ~ 20kHz
Frequency Range : 480Hz ~ 20kHz
Frequency - Self Resonant : 600Hz
Impedance : 4 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 1W/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 1.2W
Port Location : Top
Shape : Oval
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.787" L x 0.551" W (20.00mm x 14.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
422 in stock

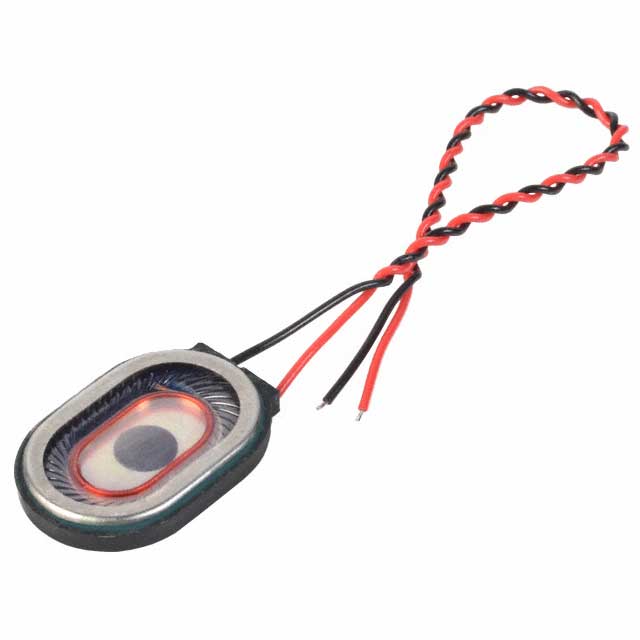

CDS-20144-L100
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 480Hz ~ 20kHz
Frequency Range : 480Hz ~ 20kHz
Frequency - Self Resonant : 600Hz
Impedance : 4 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 1W/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 1.2W
Port Location : Top
Shape : Oval
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.787" L x 0.551" W (20.00mm x 14.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 480Hz ~ 20kHz
Frequency Range : 480Hz ~ 20kHz
Frequency - Self Resonant : 600Hz
Impedance : 4 Ohms
Efficiency - dBA : 92.00
Efficiency - Testing : 1W/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1W
Power - Max : 1.2W
Port Location : Top
Shape : Oval
Material - Cone : Polyester, Polyethylene Terephthalate (PET)
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.787" L x 0.551" W (20.00mm x 14.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
1946 in stock

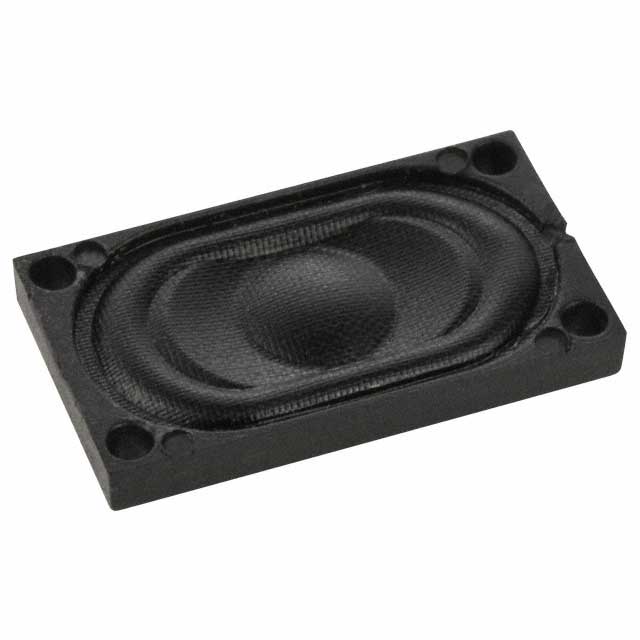

CDS-25148
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 600Hz ~ 20kHz
Frequency Range : 600Hz ~ 20kHz
Frequency - Self Resonant : 750Hz
Impedance : 8 Ohms
Efficiency - dBA : 73.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1.5W
Power - Max : 2W
Port Location : Top
Shape : Rectangular
Material - Cone : Cloth
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.984" L x 0.551" W (25.00mm x 14.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 600Hz ~ 20kHz
Frequency Range : 600Hz ~ 20kHz
Frequency - Self Resonant : 750Hz
Impedance : 8 Ohms
Efficiency - dBA : 73.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1.5W
Power - Max : 2W
Port Location : Top
Shape : Rectangular
Material - Cone : Cloth
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.984" L x 0.551" W (25.00mm x 14.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1429 in stock

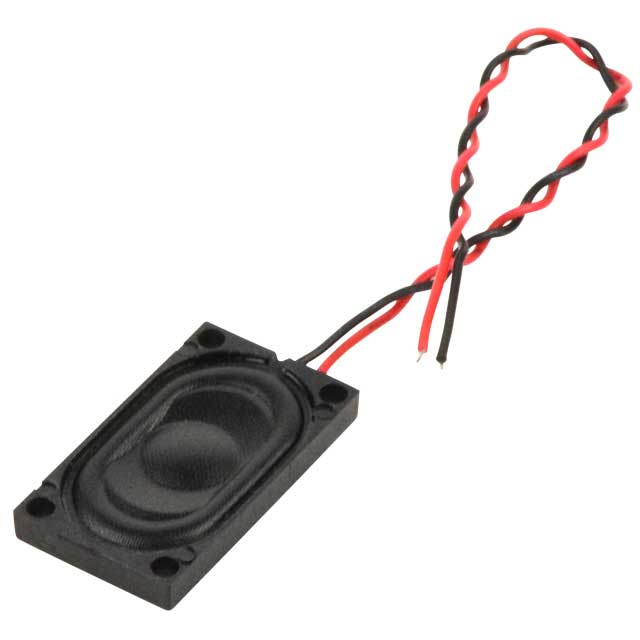

CDS-25148-L100
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 600Hz ~ 20kHz
Frequency Range : 600Hz ~ 20kHz
Frequency - Self Resonant : 750Hz
Impedance : 8 Ohms
Efficiency - dBA : 73.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1.5W
Power - Max : 2W
Port Location : Top
Shape : Rectangular
Material - Cone : Cloth
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.984" L x 0.551" W (25.00mm x 14.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 600Hz ~ 20kHz
Frequency Range : 600Hz ~ 20kHz
Frequency - Self Resonant : 750Hz
Impedance : 8 Ohms
Efficiency - dBA : 73.00
Efficiency - Testing : 1W/1M
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 1.5W
Power - Max : 2W
Port Location : Top
Shape : Rectangular
Material - Cone : Cloth
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Wire Leads
Size / Dimension : 0.984" L x 0.551" W (25.00mm x 14.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
5037 in stock

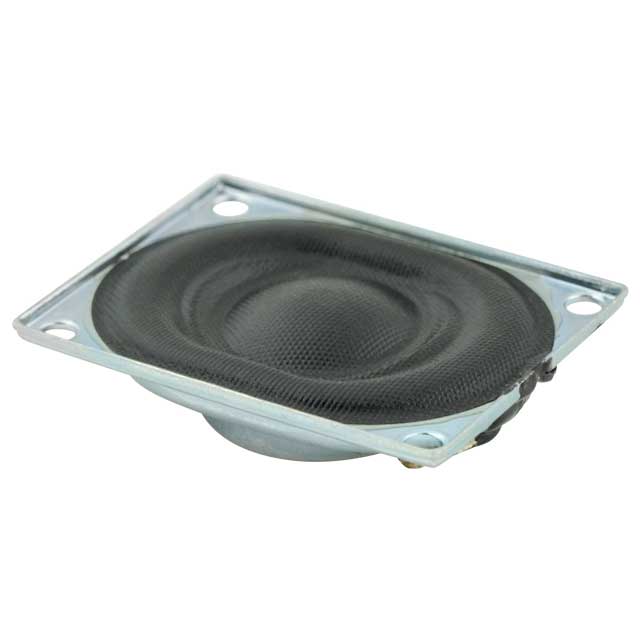

CDS-27204
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 680Hz ~ 20kHz
Frequency Range : 680Hz ~ 20kHz
Frequency - Self Resonant : 850Hz
Impedance : 4 Ohms
Efficiency - dBA : 93.00
Efficiency - Testing : 1W/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 2W
Power - Max : 2.5W
Port Location : Top
Shape : Rectangular
Material - Cone : Cloth
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 1.063" L x 0.787" W (27.00mm x 20.00mm)
Height - Seated (Max) : 0.232" (5.90mm)
Packaging : Tray
Series : CDS
Part Status : Active
Technology : Magnetic
Type : General Purpose
Frequency Range : 680Hz ~ 20kHz
Frequency Range : 680Hz ~ 20kHz
Frequency - Self Resonant : 850Hz
Impedance : 4 Ohms
Efficiency - dBA : 93.00
Efficiency - Testing : 1W/100mm
Efficiency - Type : Sound Pressure Level (SPL)
Power - Rated : 2W
Power - Max : 2.5W
Port Location : Top
Shape : Rectangular
Material - Cone : Cloth
Material - Magnet : Nd-Fe-B
Ingress Protection : -
Ratings : -
Termination : Solder Pads
Size / Dimension : 1.063" L x 0.787" W (27.00mm x 20.00mm)
Height - Seated (Max) : 0.232" (5.90mm)
0
538 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
