- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock
PK-12N40PEDRQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 12mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 12mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
36 in stock

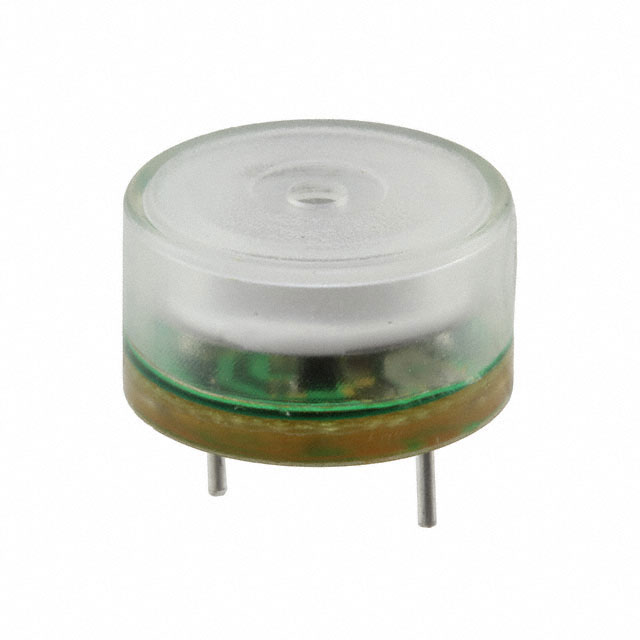

PK-12N40PEDYQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 12mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone, Visual Indicator
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 12mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
10 in stock

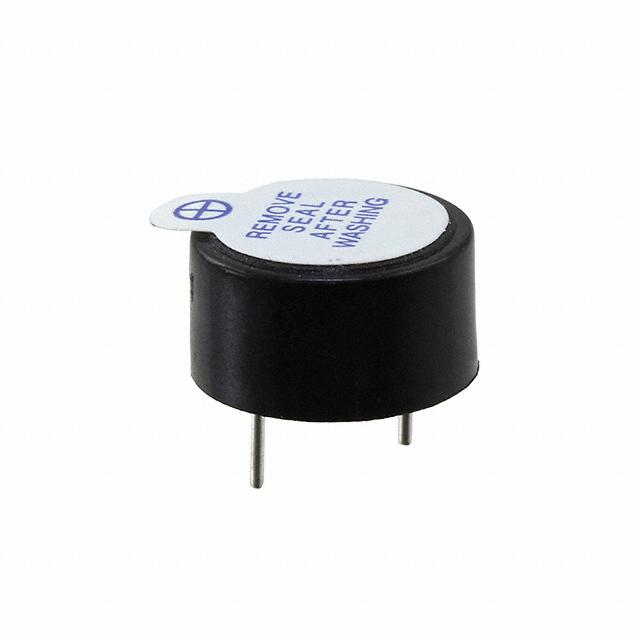

PK-12N40PEQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.543" Dia (13.80mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
79 in stock

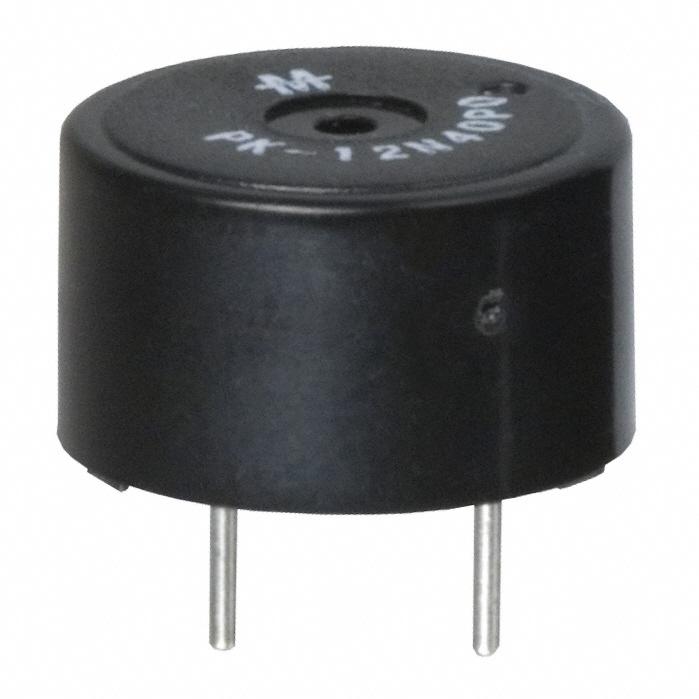

PK-12N40PQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 5mA
Port Location : Top
Operating Temperature : -20°C ~ 90°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.551" Dia (14.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 15V
Frequency : 4.1kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 5mA
Port Location : Top
Operating Temperature : -20°C ~ 90°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.551" Dia (14.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
0
8067 in stock

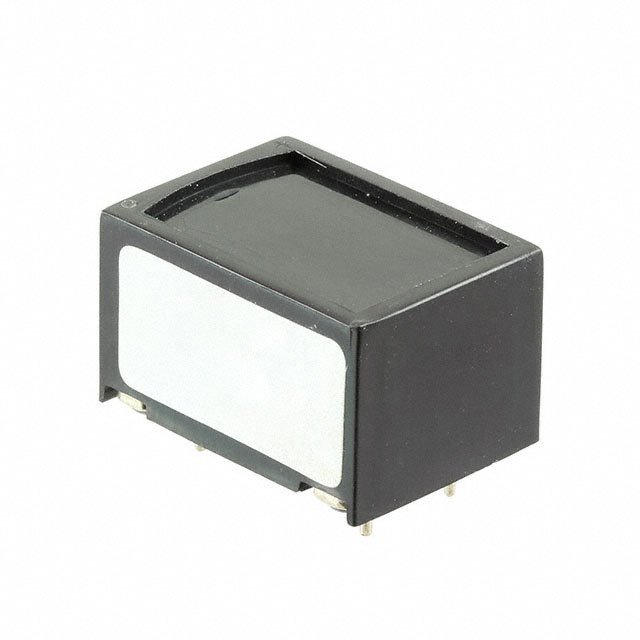

PK-16N04P-06AQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 6V
Voltage Range : 4 ~ 8V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 6V, 30cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.650" W (23.00mm x 16.50mm)
Height - Seated (Max) : 0.571" (14.50mm)
Packaging : Bulk
Series : PK
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 6V
Voltage Range : 4 ~ 8V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 6V, 30cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 100°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.650" W (23.00mm x 16.50mm)
Height - Seated (Max) : 0.571" (14.50mm)
0
10 in stock

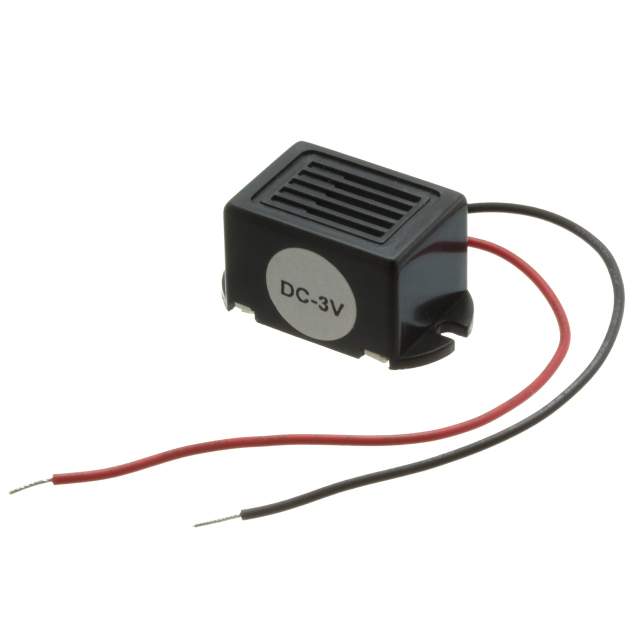

PK-16N04WA-01Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 1.5V
Voltage Range : 1.5 ~ 2V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 30cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.220" L x 0.669" W (31.00mm x 17.00mm)
Height - Seated (Max) : 0.602" (15.30mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 1.5V
Voltage Range : 1.5 ~ 2V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 30cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.220" L x 0.669" W (31.00mm x 17.00mm)
Height - Seated (Max) : 0.602" (15.30mm)
0
100 in stock
PK-16N04WA-03Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 82dB @ 3V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.602" (15.30mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 82dB @ 3V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.602" (15.30mm)
0
100 in stock
PK-16N04WA-06Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 6V
Voltage Range : 4 ~ 8V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 6V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.602" (15.30mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 6V
Voltage Range : 4 ~ 8V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 6V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.602" (15.30mm)
0
100 in stock
PK-16N04WA-12Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 8 ~ 16V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 35mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.598" (15.20mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 8 ~ 16V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 35mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.598" (15.20mm)
0
100 in stock
PK-16N04WA-24Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 24V
Voltage Range : 20 ~ 28V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 24V, 10cm
Current - Supply : 35mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.598" (15.20mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 24V
Voltage Range : 20 ~ 28V
Frequency : 400Hz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 24V, 10cm
Current - Supply : 35mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max) : 0.598" (15.20mm)
0
100 in stock

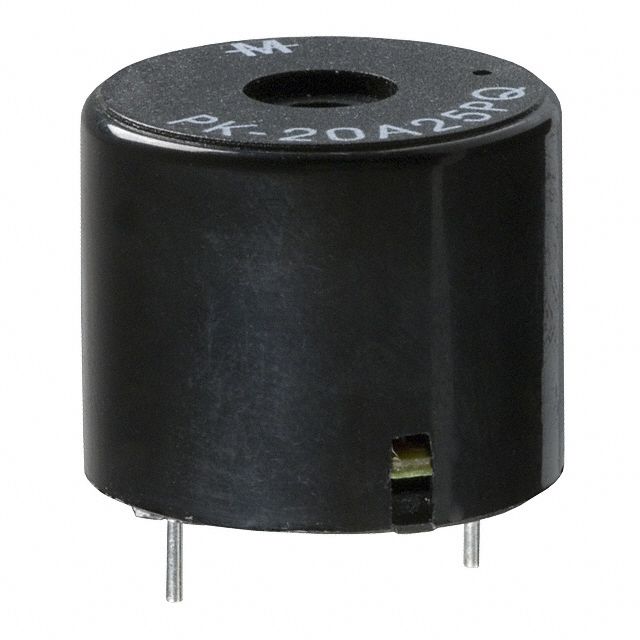

PK-20A25PQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 24V
Frequency : 2.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 12V, 30cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.717" (18.20mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 24V
Frequency : 2.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 12V, 30cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.717" (18.20mm)
0
4556 in stock

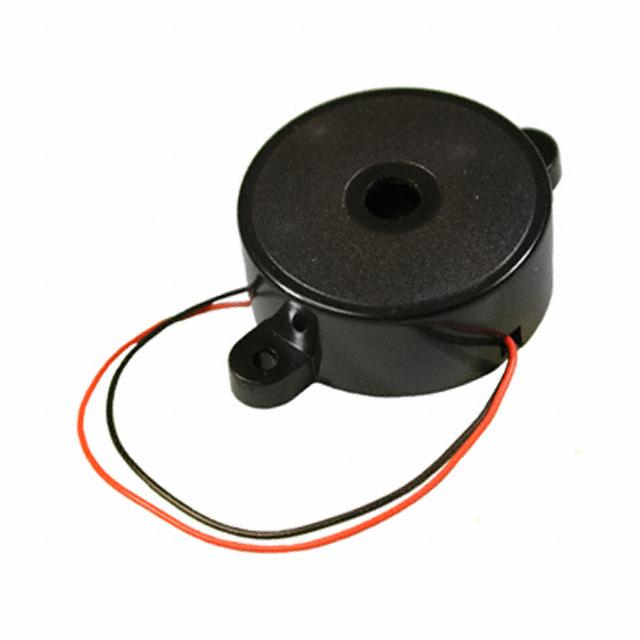

PK-20A25WQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 24V
Frequency : 2.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 12V, 30cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.717" (18.20mm)
Packaging : Bulk
Series : PK
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 24V
Frequency : 2.5kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 12V, 30cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.717" (18.20mm)
0
2 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
