Welcome to Weijie Semiconductor
- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock
PB-1224PE-12Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 9 ~ 15V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 60mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.406" (10.30mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 9 ~ 15V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 60mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.406" (10.30mm)
0
100 in stock
PB-1224PEQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.25 ~ 2.5V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 1.5V, 10cm
Current - Supply : 32mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.25 ~ 2.5V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 1.5V, 10cm
Current - Supply : 32mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
100 in stock

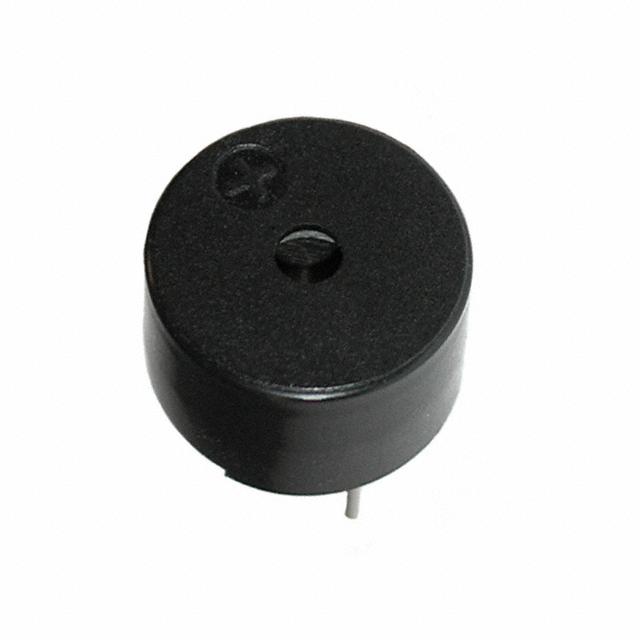

PB-1226PEAQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.1 ~ 3V
Frequency : 2.6kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 1.5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.1 ~ 3V
Frequency : 2.6kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 1.5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
938 in stock
PB-12M21PQ
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : -
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.25 ~ 2.5V
Frequency : 2.048kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 10cm
Current - Supply : 15mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.244" (6.20mm)
Packaging : -
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 1.5V
Voltage Range : 1.25 ~ 2.5V
Frequency : 2.048kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 1.5V, 10cm
Current - Supply : 15mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.244" (6.20mm)
0
100 in stock
PB-12N23MP-09Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : -
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 9V
Voltage Range : 7 ~ 11V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 9V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Packaging : -
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 9V
Voltage Range : 7 ~ 11V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 9V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
0
100 in stock

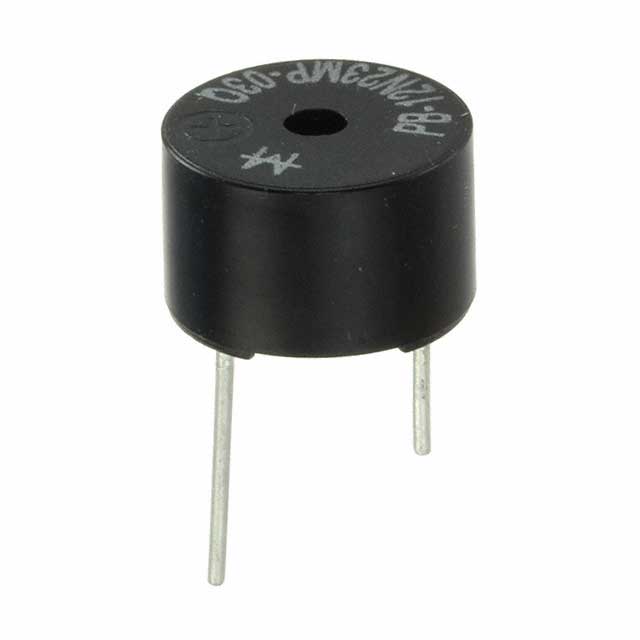

PB-12N23MPW-03Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 3V
Voltage Range : 2 ~ 5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 3V
Voltage Range : 2 ~ 5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
0
86 in stock

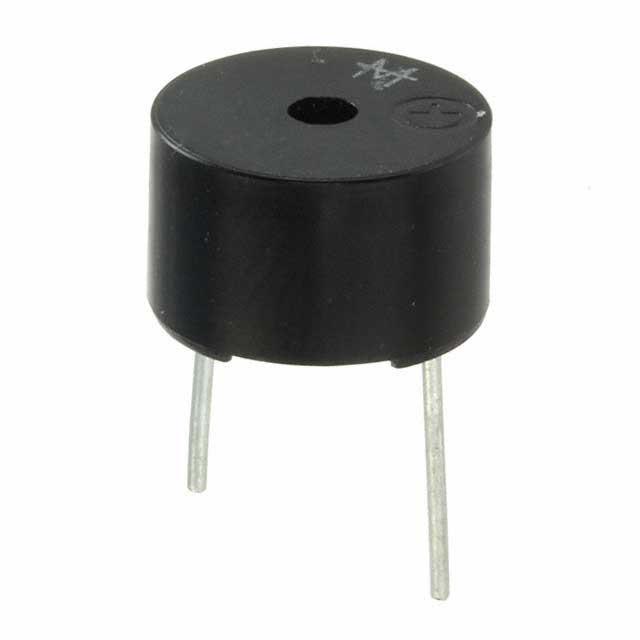

PB-12N23MPW-05Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4.5 ~ 5.5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4.5 ~ 5.5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
0
286 in stock

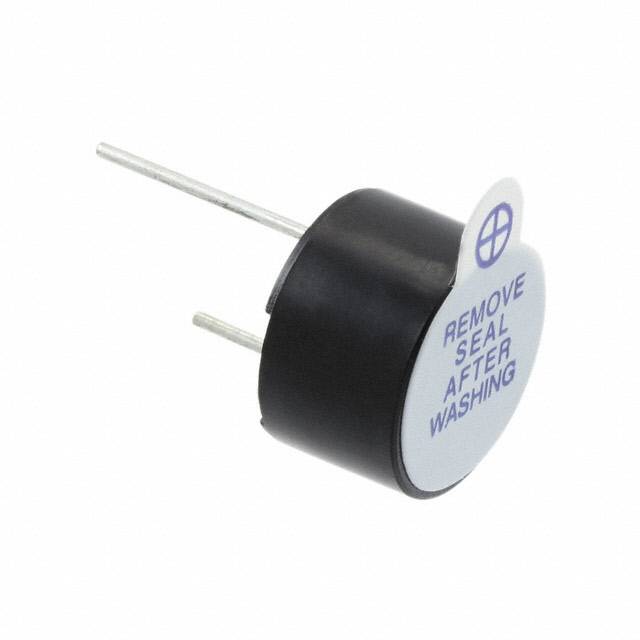

PB-12N23MPW-12Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 9 ~ 15V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 9 ~ 15V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.323" (8.20mm)
0
6 in stock

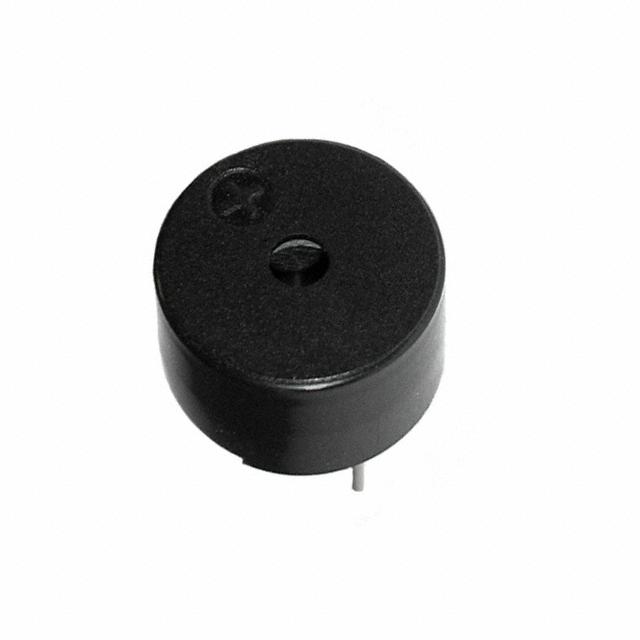

PB-12N23P-01Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 1.5V
Voltage Range : 1.25 ~ 2.5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 1.5V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 1.5V
Voltage Range : 1.25 ~ 2.5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 80dB @ 1.5V, 10cm
Current - Supply : 25mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
37 in stock
PB-12N23P-03Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 3V
Voltage Range : 2 ~ 5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 3V
Voltage Range : 2 ~ 5V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
14365 in stock
PB-12N23P-05AQS
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : -
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : -
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
100 in stock

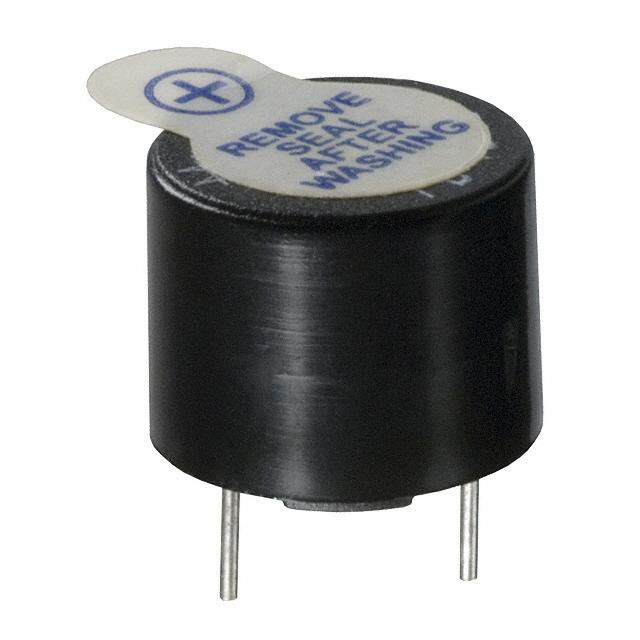

PB-12N23P-05Q
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Packaging : Bulk
Series : PB
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.3kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
0
7662 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
