Part Number
Manufacturer
Description
Unit Price
In Stock
MSR516NJSR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock
MSR516NP
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 4 ~ 14V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 2 ~ 10 PPS
Sound Pressure Level (SPL) : 75dB @ 4V, 61cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 4 ~ 14V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 2 ~ 10 PPS
Sound Pressure Level (SPL) : 75dB @ 4V, 61cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock
MSR516NPR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 2 ~ 10 PPS
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 2 ~ 10 PPS
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock

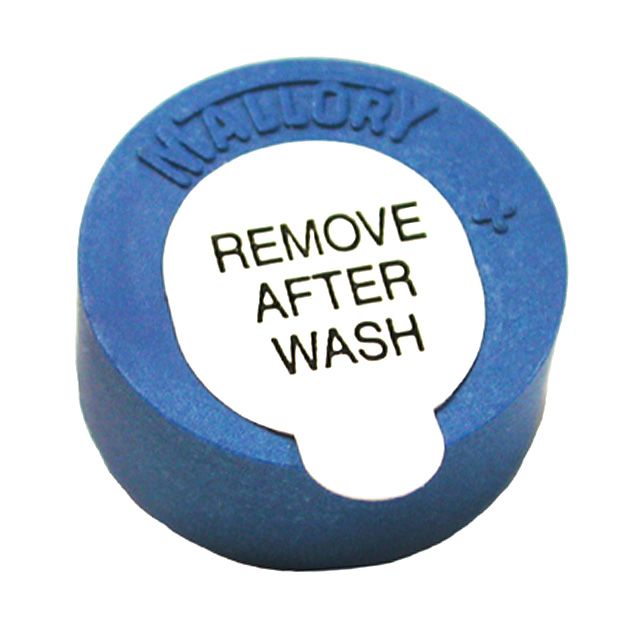

MSR516NPSR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 2 ~ 10 PPS
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 2 ~ 10 PPS
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock
MSR516NR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 14mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 14mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
3848 in stock

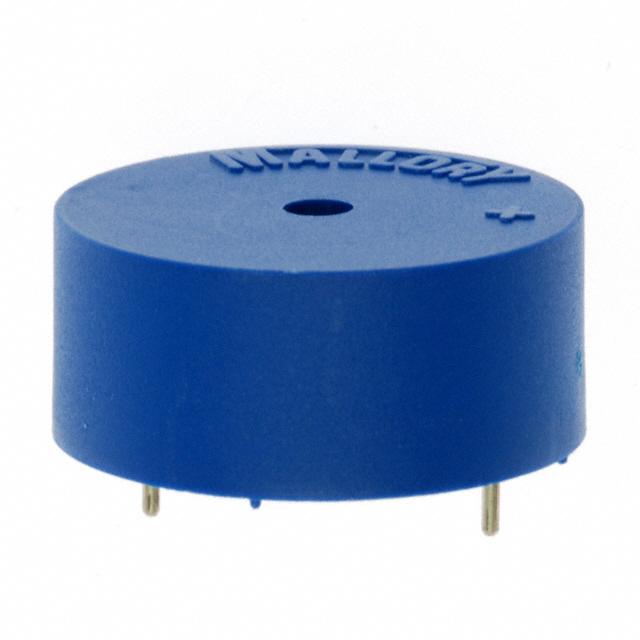

MSR516NSR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 14mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 14mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
1607 in stock

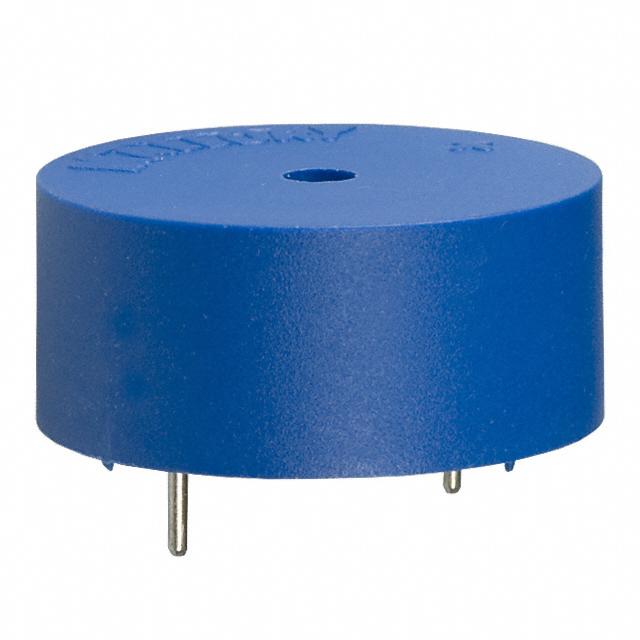

MSR516W
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Whooping
Duration : -
Sound Pressure Level (SPL) : 75dB @ 5V, 61cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Whooping
Duration : -
Sound Pressure Level (SPL) : 75dB @ 5V, 61cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock
MSR516WR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Whooping
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Whooping
Duration : -
Sound Pressure Level (SPL) : 86dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock
MSR516X
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Siren
Duration : -
Sound Pressure Level (SPL) : 75dB @ 5V, 61cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Siren
Duration : -
Sound Pressure Level (SPL) : 75dB @ 5V, 61cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock
MSR516XR
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Siren
Duration : -
Sound Pressure Level (SPL) : 82dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Packaging : Bulk
Series : MSR
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : -
Voltage Range : 5 ~ 16V
Frequency : 3.4kHz
Technology : Piezo
Operating Mode : Siren
Duration : -
Sound Pressure Level (SPL) : 82dB @ 5V, 30cm
Current - Supply : 3 ~ 12mA
Port Location : Top
Operating Temperature : -20°C ~ 65°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" Dia (23.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
0
100 in stock

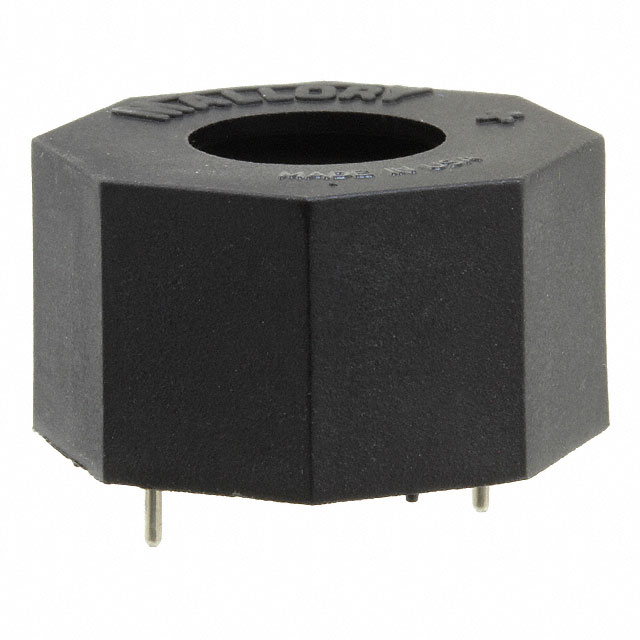

MSS5M0
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSS
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 325Hz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 200mA
Port Location : Top
Operating Temperature : -30°C ~ 55°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : MSS
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 325Hz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 200mA
Port Location : Top
Operating Temperature : -30°C ~ 55°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : -
0
6523 in stock

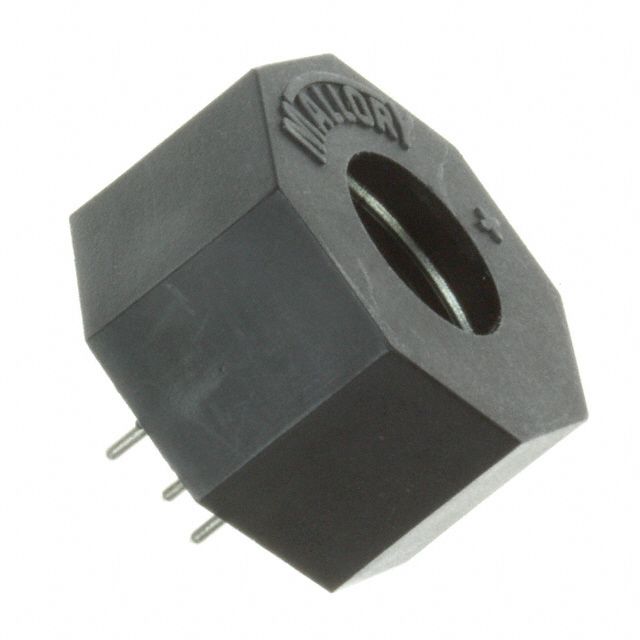

MSS5M1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : MSS
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4.5 ~ 5.5V
Frequency : 2.075kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 45 ~ 150mA
Port Location : Top
Operating Temperature : -30°C ~ 55°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : MSS
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4.5 ~ 5.5V
Frequency : 2.075kHz
Technology : Piezo
Operating Mode : Pin Selectable
Duration : Variable
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 45 ~ 150mA
Port Location : Top
Operating Temperature : -30°C ~ 55°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height - Seated (Max) : -
0
969 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
