Picture of AT-15

AT-15 AT-15

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 4.5kHz
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.201" (5.10mm)
0
100 in stock
Picture of AT-152

AT-152 AT-152

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 4kHz
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

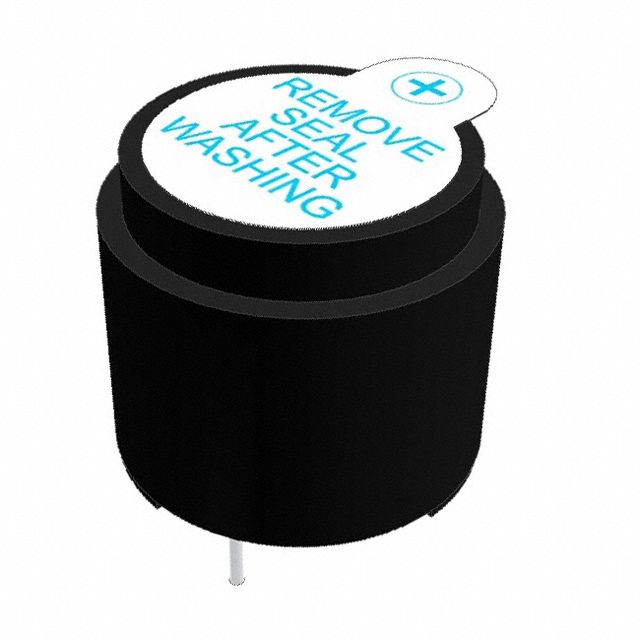

Picture of AT-1620-TWT-12V-R

AT-1620-TWT-12V-R AT-1620-TWT-12V-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 12V
Voltage Range : 9 ~ 15V
Frequency : 2.048kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 12V, 10cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.559" (14.20mm)
0
306 in stock

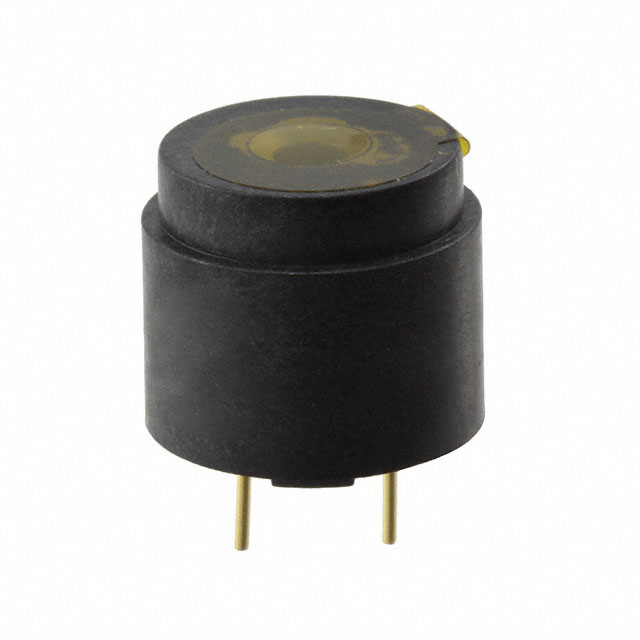

Picture of AT-1620-TWT-5-R

AT-1620-TWT-5-R AT-1620-TWT-5-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 6V
Voltage Range : 3 ~ 12V
Frequency : 2.048kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 6V, 10cm
Current - Supply : 50mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
0
35 in stock

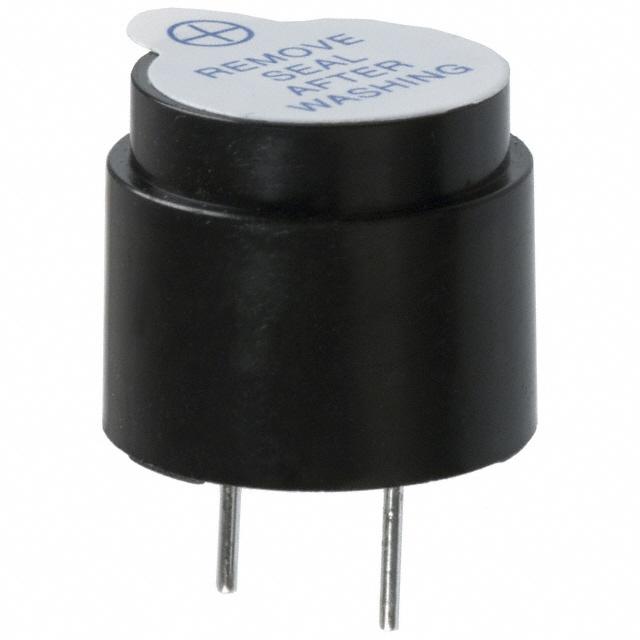

Picture of AT-1620-TWT-R

AT-1620-TWT-R AT-1620-TWT-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 6V
Voltage Range : 4 ~ 8V
Frequency : 2.048kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 90dB @ 6V, 10cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : Washable
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
0
10713 in stock
Picture of AT-17

AT-17 AT-17

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : -
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

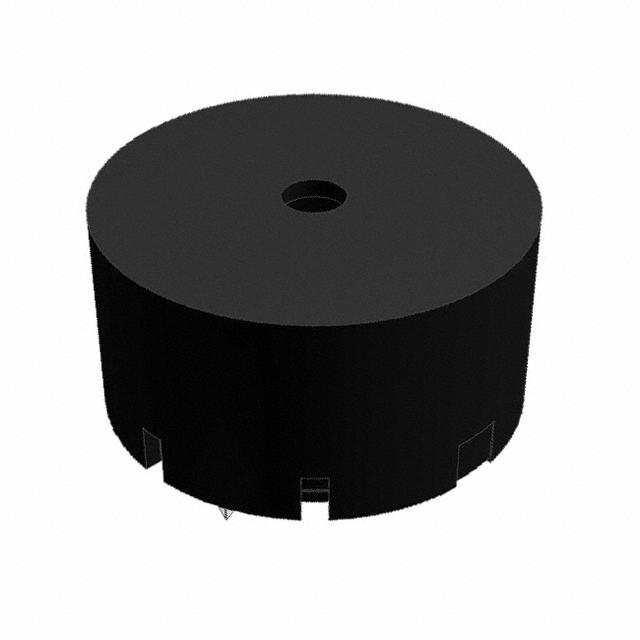

Picture of AT-1720-TT-R

AT-1720-TT-R AT-1720-TT-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 3 ~ 25V
Frequency : 2kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -20°C ~ 105°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.358" (9.10mm)
0
588 in stock
Picture of AT-173

AT-173 AT-173

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 3.7kHz
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.260" Dia (32.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
0
100 in stock
Picture of AT-1740

AT-1740 AT-1740

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : -
Technology : Piezo
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock
Picture of AT-1740-T-LW100-R

AT-1740-T-LW100-R AT-1740-T-LW100-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 30V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 2mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Custom
Termination : Wire Leads
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
100 in stock
Picture of AT-1740-T-LW65-R

AT-1740-T-LW65-R AT-1740-T-LW65-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 9V
Voltage Range : 1 ~ 30V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 88dB @ 9V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Custom
Termination : Wire Leads
Size / Dimension : 0.669" Dia (17.00mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
100 in stock

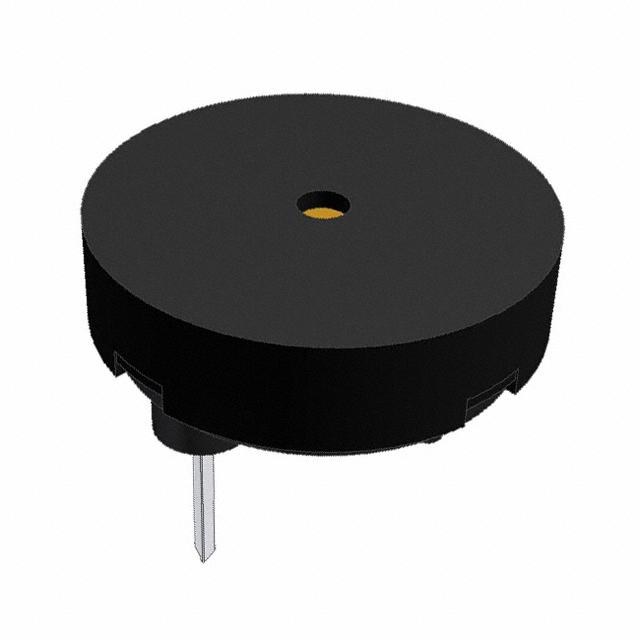

Picture of AT-1740-TT-3-R

AT-1740-TT-3-R AT-1740-TT-3-R

PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tray
Series : AT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 30V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Through Hole
Termination : PC Pins
Size / Dimension : 0.650" Dia (16.50mm)
Height - Seated (Max) : 0.283" (7.20mm)
0
100 in stock
