Welcome to Weijie Semiconductor
- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock
ZA120LADT8
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Warble, Slow
Duration : 1.5 WPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Warble, Slow
Duration : 1.5 WPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
3 in stock
ZA120LAFP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 10 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 10 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
4 in stock
ZA120LAMP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Medium
Duration : 5 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Medium
Duration : 5 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock

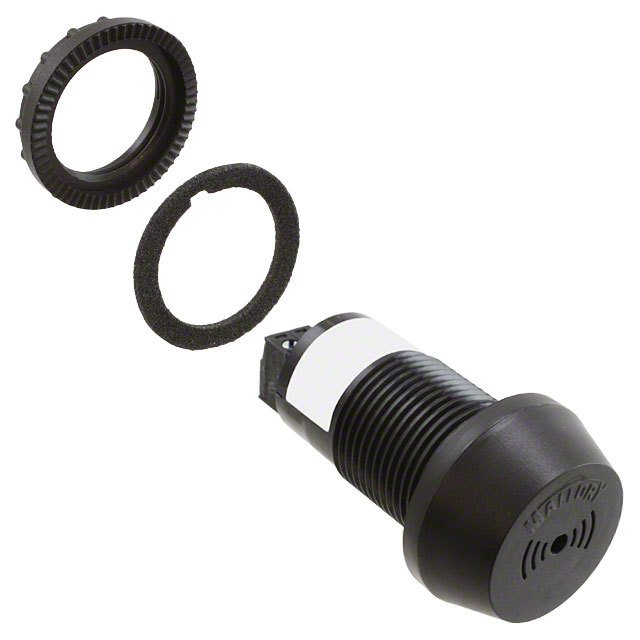

ZA120LAPS1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Short
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Short
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA120LASP1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1 PPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA120LASR8
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Siren
Duration : 5 SPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Siren
Duration : 5 SPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA120LASR9
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Siren, Slow
Duration : 2 SPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Siren, Slow
Duration : 2 SPS
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA120LASS1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : 1 Min On-Time
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : 1 Min On-Time
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
ZA120LASU2
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Speed Up, Fast
Duration : -
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Speed Up, Fast
Duration : -
Sound Pressure Level (SPL) : 85dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
3 in stock
ZA120MACM1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Chime
Duration : Repeating every 3 Sec
Sound Pressure Level (SPL) : 75dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Chime
Duration : Repeating every 3 Sec
Sound Pressure Level (SPL) : 75dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock

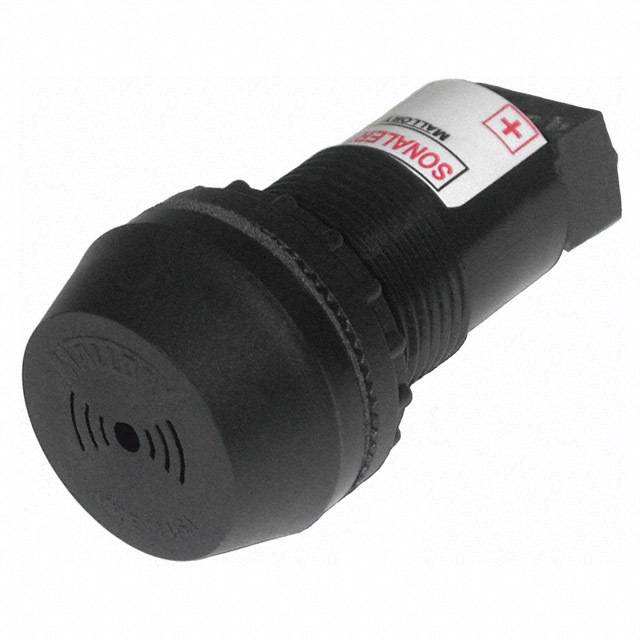

ZA120MACT
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 75dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
51 in stock
ZA120MADL1
Mallory Sonalert Products
Manufacturer : Mallory Sonalert Products Inc.
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : 10 Sec On-Delay
Sound Pressure Level (SPL) : 75dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
Packaging : Bulk
Series : ZA
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : -
Voltage Range : 48 ~ 120V
Frequency : 3.3kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : 10 Sec On-Delay
Sound Pressure Level (SPL) : 75dB @ 48V, 61cm
Current - Supply : 40mA
Port Location : Top
Operating Temperature : -30°C ~ 65°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : NEMA 3R, 4X, 12
Mounting Type : Panel Mount
Termination : Terminal Block
Size / Dimension : 1.210" Dia (30.74mm)
Height - Seated (Max) : 2.234" (56.75mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
