Welcome to Weijie Semiconductor
- Audio Products
- Alarms, Buzzers, and Sirens
Part Number
Manufacturer
Description
Unit Price
In Stock
SMT-0927-S-7-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
792 in stock
SMT-0927-S-8-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 87dB @ 3.6V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.177" (4.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 87dB @ 3.6V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

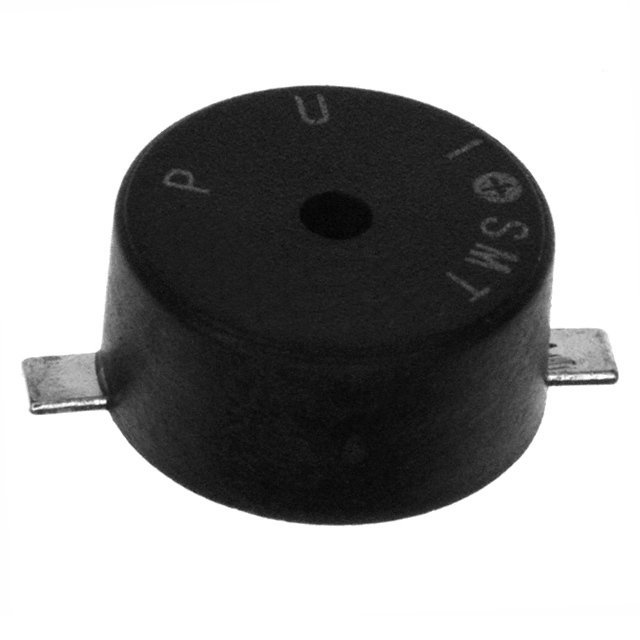

SMT-0927-T-2-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 80mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" Dia (9.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 80mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" Dia (9.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1407 in stock
SMT-0927-T-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMT-09
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 80mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" Dia (9.00mm)
Height - Seated (Max) : 0.193" (4.90mm)
Packaging : Tape & Reel (TR)
Series : SMT-09
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 2.73kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3V, 10cm
Current - Supply : 80mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" Dia (9.00mm)
Height - Seated (Max) : 0.193" (4.90mm)
0
100 in stock
SMT-0931-S-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 3 ~ 5V
Frequency : 3.1kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 3.6V, 10cm
Current - Supply : 80mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.146" (3.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 3 ~ 5V
Frequency : 3.1kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 95dB @ 3.6V, 10cm
Current - Supply : 80mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.146" (3.70mm)
0
9469 in stock

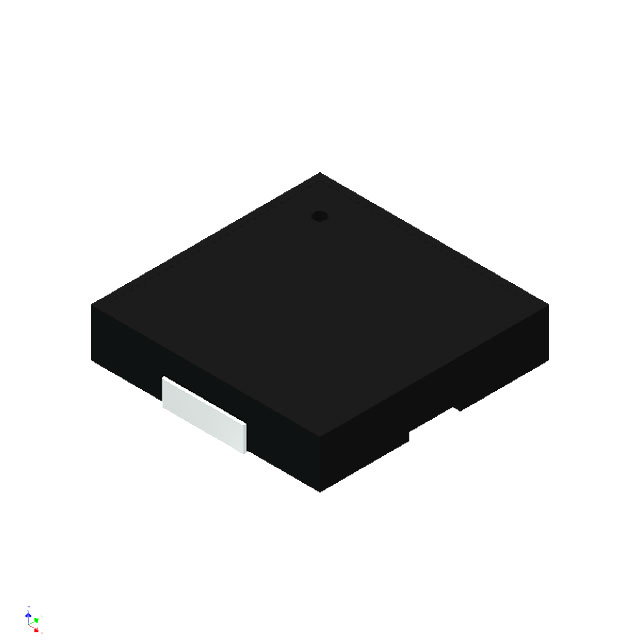

SMT-0940-T-3V-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 25V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 1 ~ 25V
Frequency : 4kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 1mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
2596 in stock

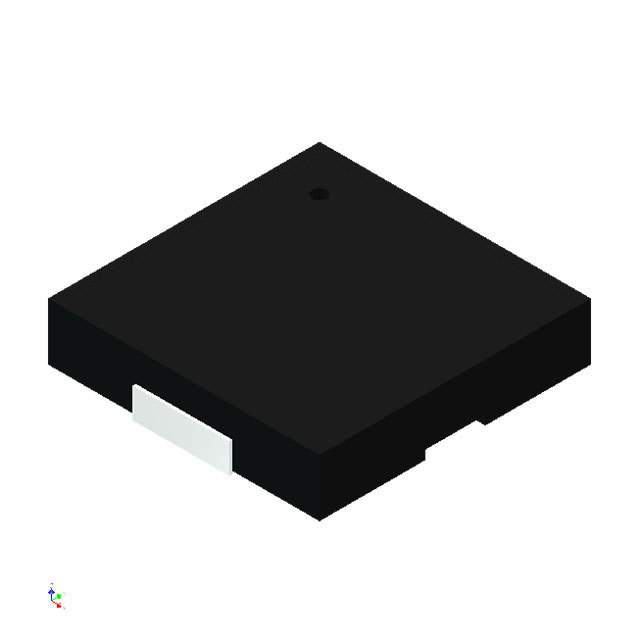

SMT-0952-T-5V-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 25V
Frequency : 5.2kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 5V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 1 ~ 25V
Frequency : 5.2kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 5V, 10cm
Current - Supply : 3mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
2780 in stock
SMT-1025-S-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.5kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 90mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.402" W (8.50mm x 10.20mm)
Height - Seated (Max) : 0.126" (3.20mm)
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.5kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 90mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.402" W (8.50mm x 10.20mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
100 in stock
SMT-1027-S-2-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 87dB @ 3.6V, 10cm
Current - Supply : 90mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.402" W (8.50mm x 10.20mm)
Height - Seated (Max) : 0.126" (3.20mm)
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 87dB @ 3.6V, 10cm
Current - Supply : 90mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.402" W (8.50mm x 10.20mm)
Height - Seated (Max) : 0.126" (3.20mm)
0
100 in stock

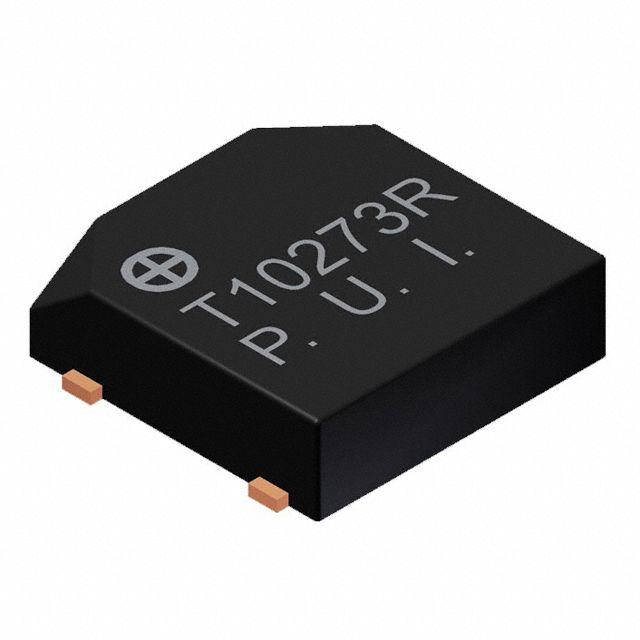

SMT-1027-S-3-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 80mA
Port Location : Side
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2.5 ~ 4.5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 80mA
Port Location : Side
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
1842 in stock

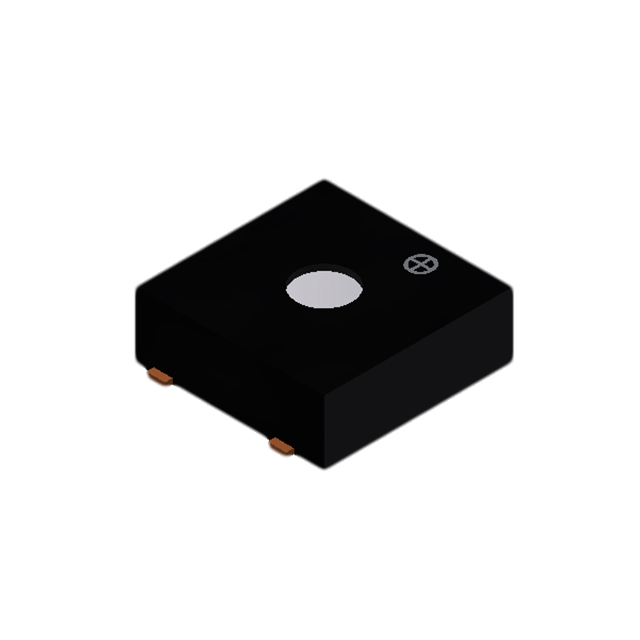

SMT-1028-S-2-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 3 ~ 4.6V
Frequency : 2.83kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 93dB @ 3.6V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 3 ~ 4.6V
Frequency : 2.83kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 93dB @ 3.6V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
88729 in stock

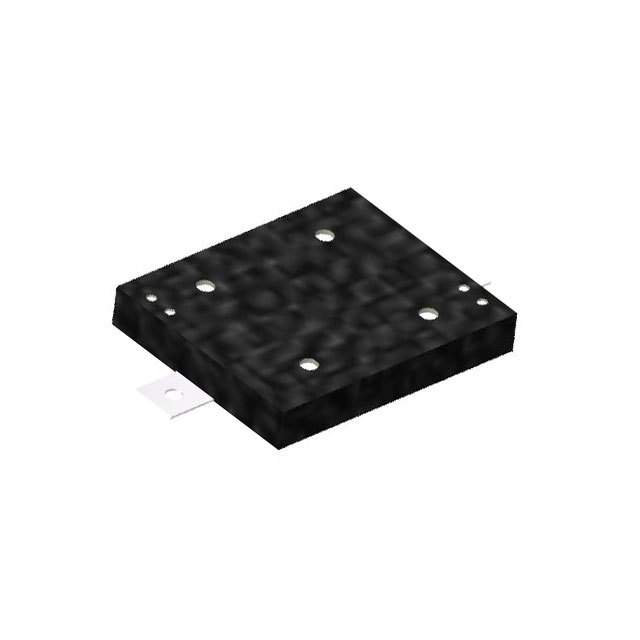

SMT-1028-S-5V-2-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 2.83kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 93dB @ 5V, 10cm
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 2.83kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 93dB @ 5V, 10cm
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
2485 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
