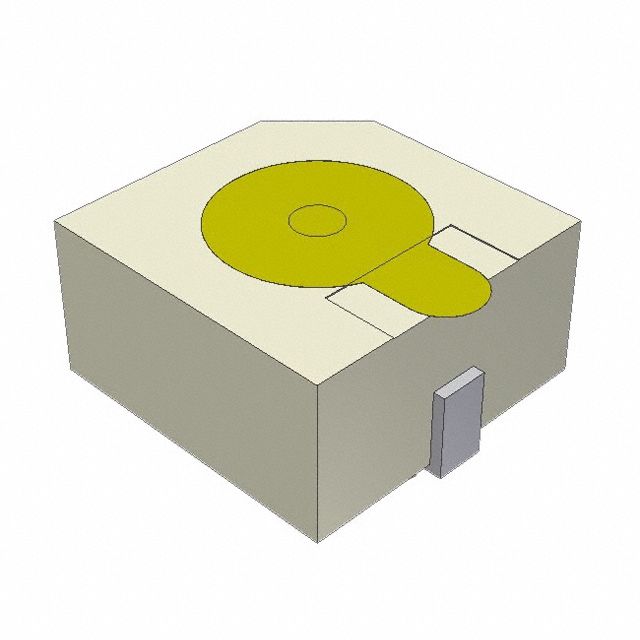

SMI-1324-TW-5V-R-T/R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) : 0.283" (7.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 5V
Voltage Range : 4 ~ 7V
Frequency : 2.4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 30mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) : 0.283" (7.20mm)
0
885 in stock

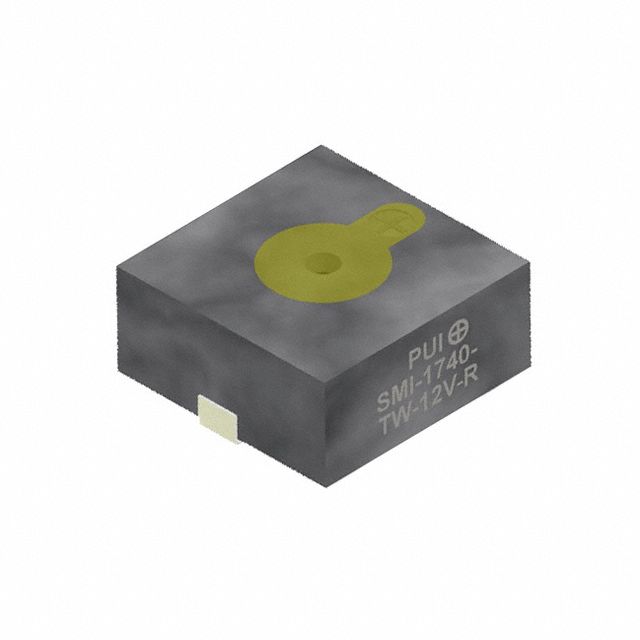

SMI-1740-TW-12V-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 20V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 15mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Height - Seated (Max) : 0.327" (8.30mm)
Packaging : Tape & Reel (TR)
Series : SMI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 20V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 83dB @ 12V, 10cm
Current - Supply : 15mA
Port Location : Top
Operating Temperature : -40°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Height - Seated (Max) : 0.327" (8.30mm)
0
100 in stock
SMI-2117-2
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : -
Frequency : 4kHz
Technology : Magnetic
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : -
Size / Dimension : -
Height - Seated (Max) : -
Packaging : Tape & Reel (TR)
Series : SMI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : -
Frequency : 4kHz
Technology : Magnetic
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : -
Size / Dimension : -
Height - Seated (Max) : -
0
100 in stock

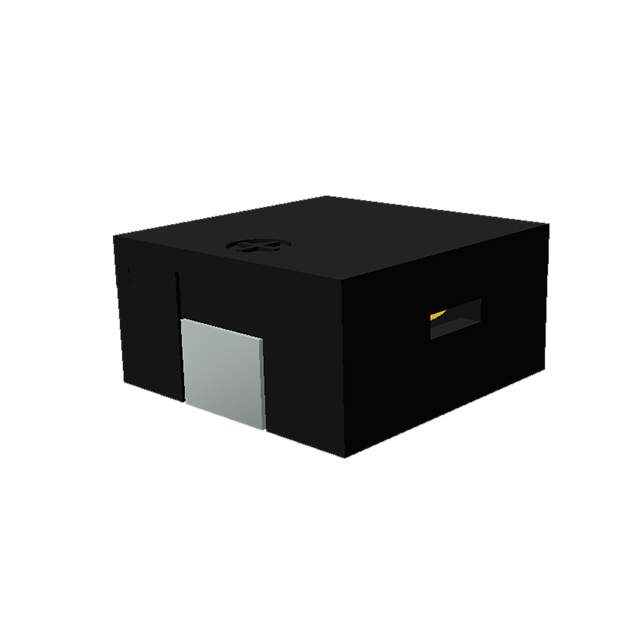

SMT-0440-S-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 90mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 90mA
Port Location : Side
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
18215 in stock

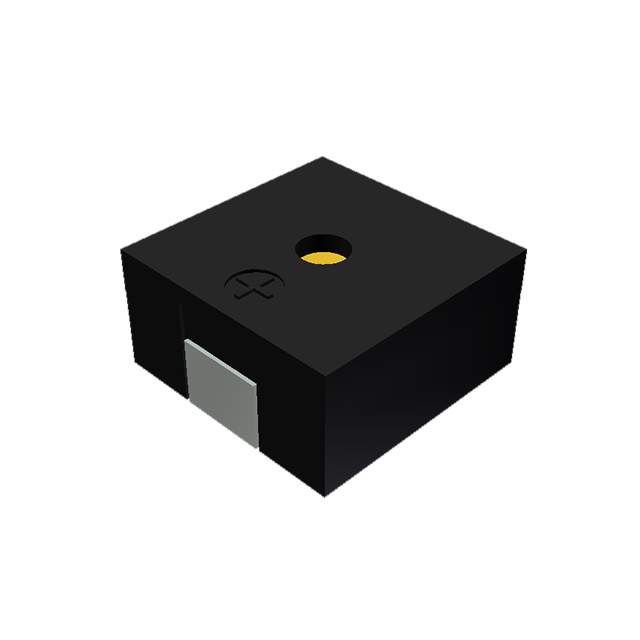

SMT-0440-T-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 90mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 70dB @ 3V, 10cm
Current - Supply : 90mA
Port Location : Top
Operating Temperature : -20°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
3020 in stock
SMT-05
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.559" W (11.00mm x 14.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.559" W (11.00mm x 14.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock

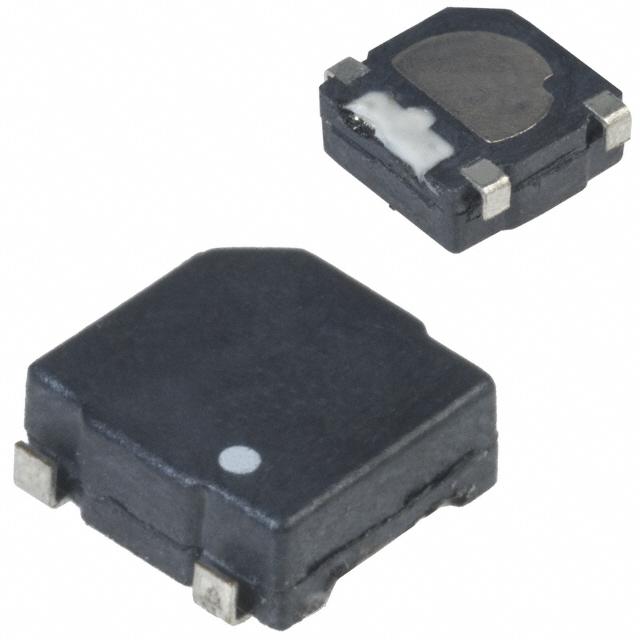

SMT-0540-S-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 100mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
29978 in stock

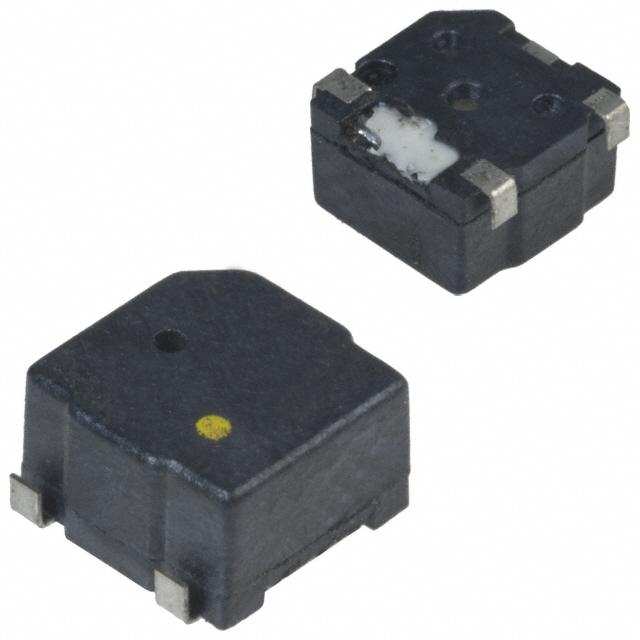

SMT-0540-T-2-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 100mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 100mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
5777 in stock

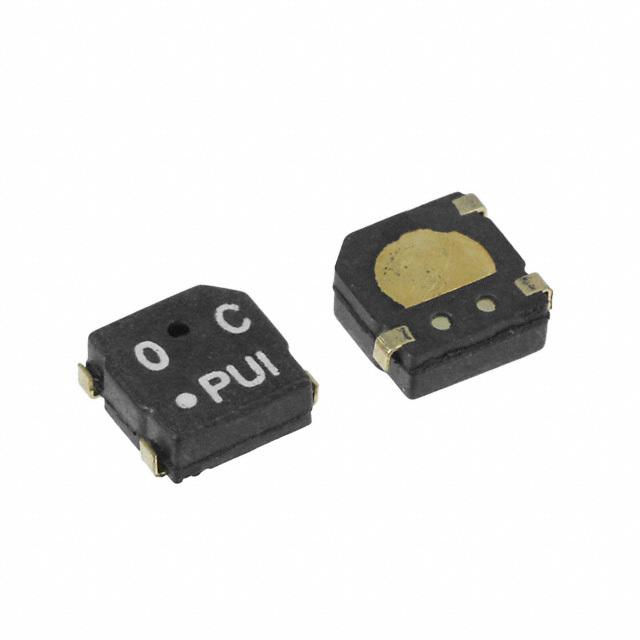

SMT-0540-T-7-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 100mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3V
Voltage Range : 2 ~ 4V
Frequency : 4kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 78dB @ 3V, 10cm
Current - Supply : 100mA
Port Location : Top
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.083" (2.10mm)
0
15256 in stock
SMT-05TF
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.559" W (11.00mm x 14.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Tape & Reel (TR)
Series : SMT
Part Status : Obsolete
Driver Circuitry : Transducer, Externally Driven
Input Type : -
Voltage - Rated : -
Voltage Range : -
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : -
Duration : -
Sound Pressure Level (SPL) : -
Current - Supply : -
Port Location : -
Operating Temperature : -
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.433" L x 0.559" W (11.00mm x 14.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock

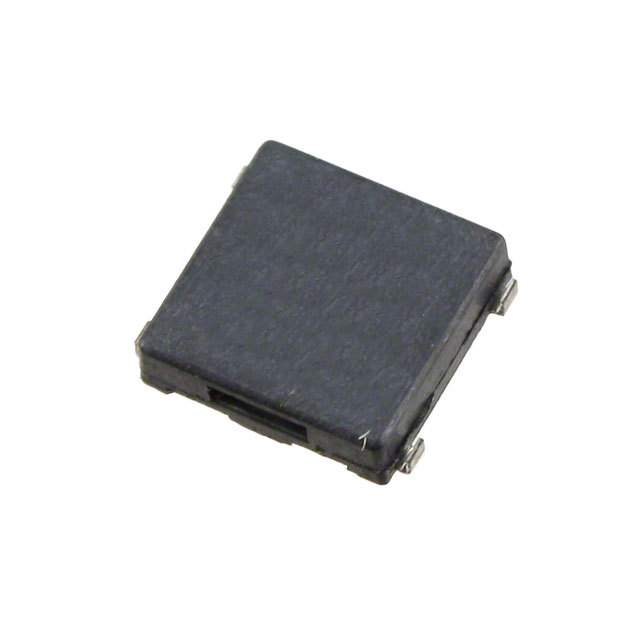

SMT-0727-S-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2 ~ 5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 120mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.295" L x 0.295" W (7.50mm x 7.50mm)
Height - Seated (Max) : 0.106" (2.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 3.6V
Voltage Range : 2 ~ 5V
Frequency : 2.7kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 3.6V, 10cm
Current - Supply : 120mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.295" L x 0.295" W (7.50mm x 7.50mm)
Height - Seated (Max) : 0.106" (2.70mm)
0
3838 in stock

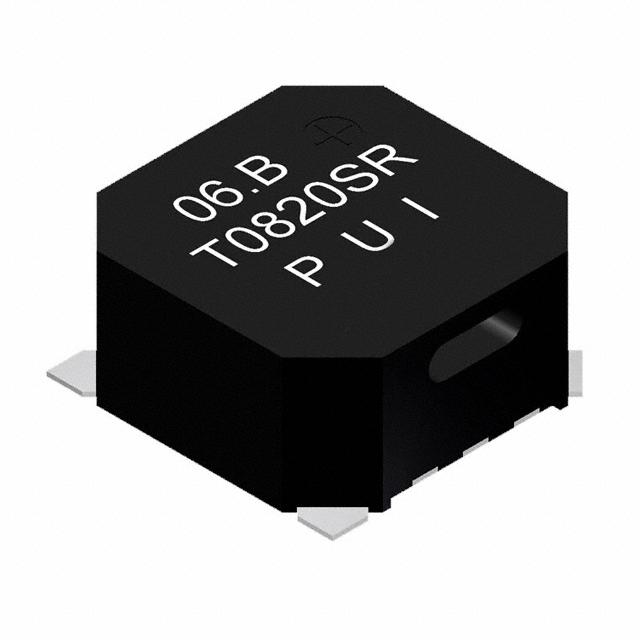

SMT-0820-S-R
PUI Audio, Inc.
Manufacturer : PUI Audio, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 2kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.177" (4.50mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMT
Part Status : Active
Driver Circuitry : Transducer, Externally Driven
Input Type : Peak-Peak Signal
Voltage - Rated : 5V
Voltage Range : 4 ~ 6V
Frequency : 2kHz
Technology : Magnetic
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 85dB @ 5V, 10cm
Current - Supply : 70mA
Port Location : Side
Operating Temperature : -30°C ~ 70°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Surface Mount
Termination : Solder Pads
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
