Alarms, Buzzers, and Sirens Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

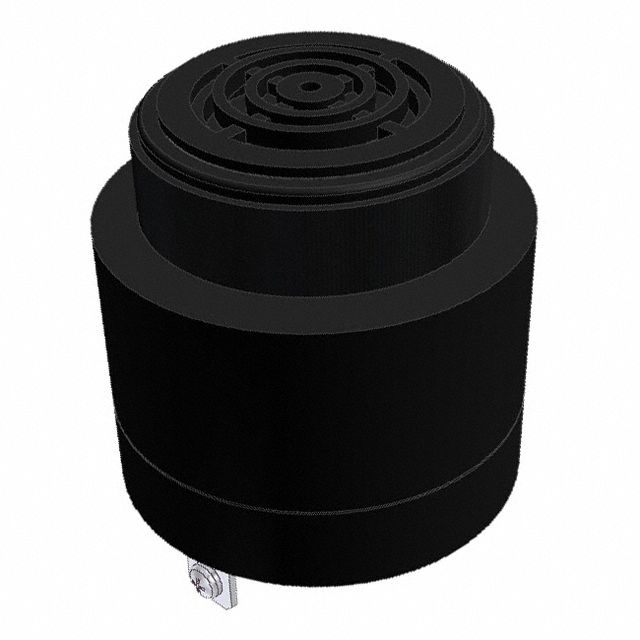

AI-4228-P-SP250-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : AC, DC
Voltage - Rated : 220V
Voltage Range : 60 ~ 250V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1.2 PPS
Sound Pressure Level (SPL) : 94dB @ 220V, 10cm
Current - Supply : 18mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.673" (42.50mm)

39 in stock

AI-4228-P-SP28

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 28V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1.2 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.280" (32.50mm)

100 in stock

AI-4228-P-SP28D

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 28V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1.2 PPS
Sound Pressure Level (SPL) : 90dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.280" (32.50mm)

100 in stock

AI-4228-P-SP28D-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 28V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1.2 PPS
Sound Pressure Level (SPL) : 90dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.299" (33.00mm)

100 in stock

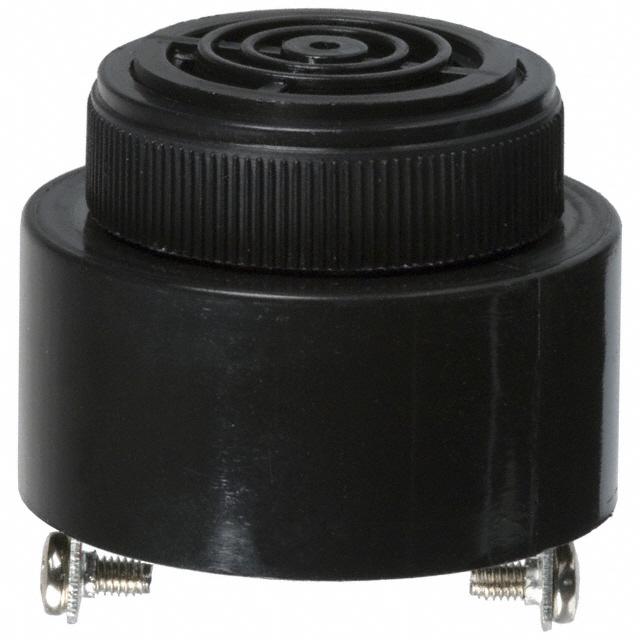

AI-4228-P-SP28-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 28V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1.2 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 6mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
Size / Dimension : 1.673" Dia (42.50mm)
Height - Seated (Max) : 1.299" (33.00mm)

100 in stock

AI-4228-S-C28

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 4 ~ 28V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Solder Tabs
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.571" (14.50mm)

100 in stock

AI-4228-S-C28-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 4 ~ 28V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Solder Tabs
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.591" (15.00mm)

100 in stock

AI-4228-S-FP16

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 3 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Solder Tabs
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.571" (14.50mm)

100 in stock

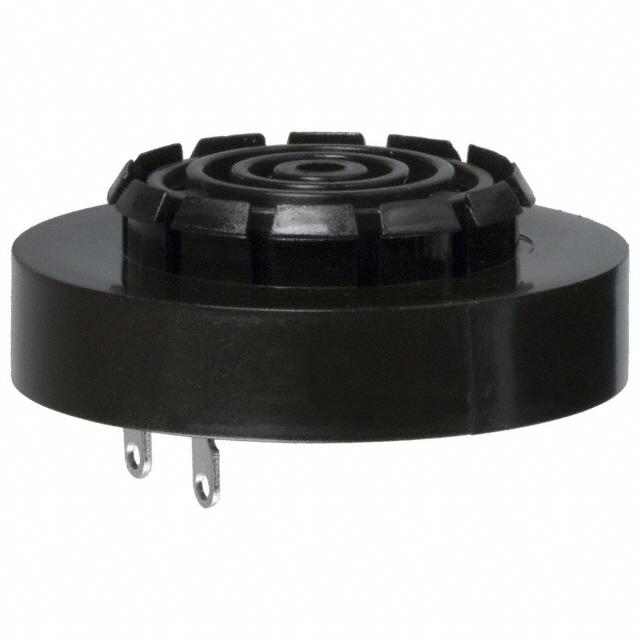

AI-4228-S-FP16-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pulse, Fast
Duration : 3 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Solder Tabs
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.591" (15.00mm)

100 in stock

AI-4228-S-SP16

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Solder Tabs
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.571" (14.50mm)

100 in stock

AI-4228-S-SP16-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Obsolete
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 6 ~ 16V
Frequency : 2.9kHz
Technology : Piezo
Operating Mode : Pulse, Slow
Duration : 1 PPS
Sound Pressure Level (SPL) : 88dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -30°C ~ 85°C
Approvals : cUL, UL
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount
Termination : Solder Tabs
Size / Dimension : 1.654" Dia (42.00mm)
Height - Seated (Max) : 0.591" (15.00mm)

100 in stock

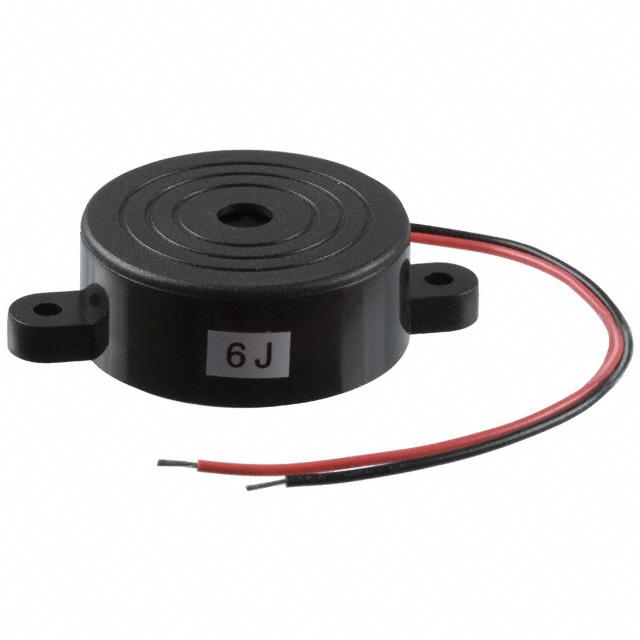

AI-4228-TF-LW140-3-R

PUI Audio, Inc.

Manufacturer : PUI Audio, Inc.
Packaging : Bulk
Series : AI
Part Status : Active
Driver Circuitry : Indicator, Internally Driven
Input Type : DC
Voltage - Rated : 12V
Voltage Range : 3 ~ 20V
Frequency : 2.8kHz
Technology : Piezo
Operating Mode : Single Tone
Duration : -
Sound Pressure Level (SPL) : 105dB @ 12V, 10cm
Current - Supply : 10mA
Port Location : Top
Operating Temperature : -20°C ~ 60°C
Approvals : -
Ratings : -
Ingress Protection : -
Mounting Type : Panel Mount, Flange
Termination : Wire Leads
Size / Dimension : 1.646" Dia (41.80mm)
Height - Seated (Max) : 0.650" (16.50mm)

2309 in stock
